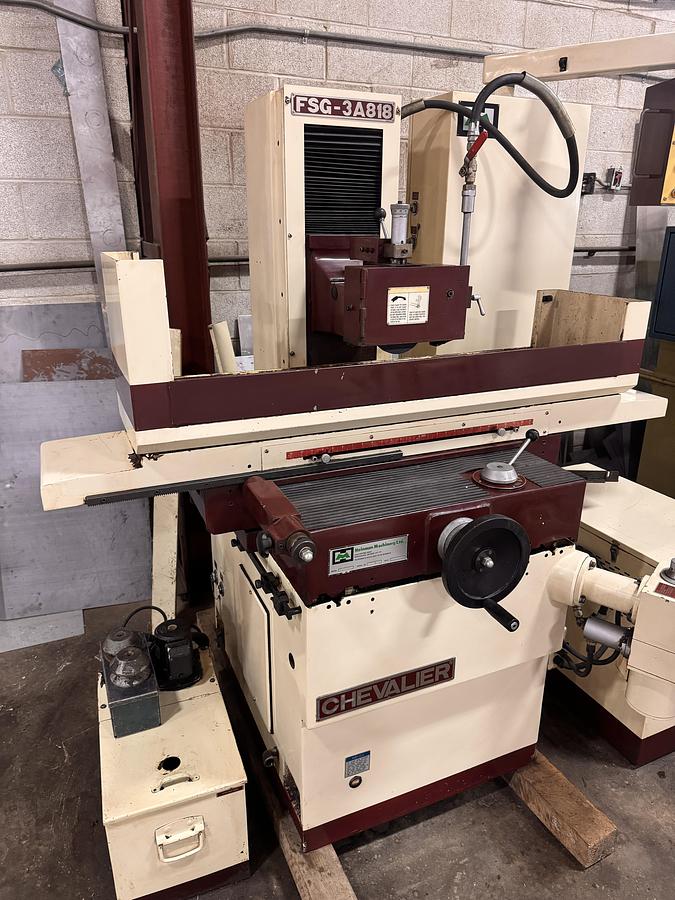

8" X 18" CHEVALIER, FULLY AUTOMATIC HYDRAULIC SURFACE GRINDER
Specifications
| Manufacturer | CHEVALIER |
| Model | FSG-3A818 |
| Stock Number | 4932 |
| TABLE SIZE | 8" X 18" |
| MAX. GRINDING LENGTH | 18" |
| MAX. GRINDING WIDTH | 8" |
| MAX. DISTANCE FROM TABLE SURFACE TO SPINDLE CENTERLINE | 18" |
| LONGITUDINAL MOVEMENT TABLE -HYDRAULIC | 19-3/4" |
| MAX. TRAVEL MANUAL | 21' |
| CROSS TRAVERSE TRAVEL- MAX. AUTOMATIC | 9" |
| MAX. MANUAL TRAVERSE | 9-1/2" |
| WHEEL HEAD VERTICAL INFEED - AUTOMATIC | 0.0001" - 0.002" |
| MICROFEED PER REVOLUTION | 0.0001" |
| GRINDING SPINDLE DRIVE | 60 HZ / 3450 RPM |
| SPINDLE DRIVE POWER RATING | 2 HP |
| STANDARD GRINDING WHEEL SIZE | 8" X 1/2" X 1-1/4" |
| APPROX WEIGHT | 2,700 LBS |
| ELECTRICS | 575V/3/60 |
Equipped With
8" X 18" MANUAL MAGNETIC CHUCK
AUTOMATIC INCREMENTAL DOWNFEED
HYDRAULIC TANK
COOLANT TANK
The Chevalier FSG-3A818 is a used fully automatic hydraulic surface grinder, offering precision and quality with an 8" x 18" table size. It features an 8" x 18" manual magnetic chuck and automatic incremental downfeed, enhancing its utility for various grinding applications. The grinder comes with a hydraulic and coolant tank to ensure efficiency and performance during operation. Specifications include a maximum grinding length and width of 18" and 8", respectively, with a distance of 18" from the table surface to the spindle centerline. The table provides a hydraulic longitudinal movement of 19-3/4" and a manual travel capacity of up to 21". The equipment also supports a cross traverse travel with a maximum automatic movement of 9" and manual traverse of 9-1/2". The vertical infeed of the wheel head ranges from 0.0001" to 0.002" automatically, with a microfeed capability of 0.0001" per revolution. It operates with a 60 Hz grinding spindle drive at 3450 RPM, powered by a 2 HP motor. The machine is designed to accommodate standard grinding wheels sized 8" x 1/2" x 1-1/4". With an approximate weight of 2,700 lbs, it requires an electrical connection of 575V/3/60.
