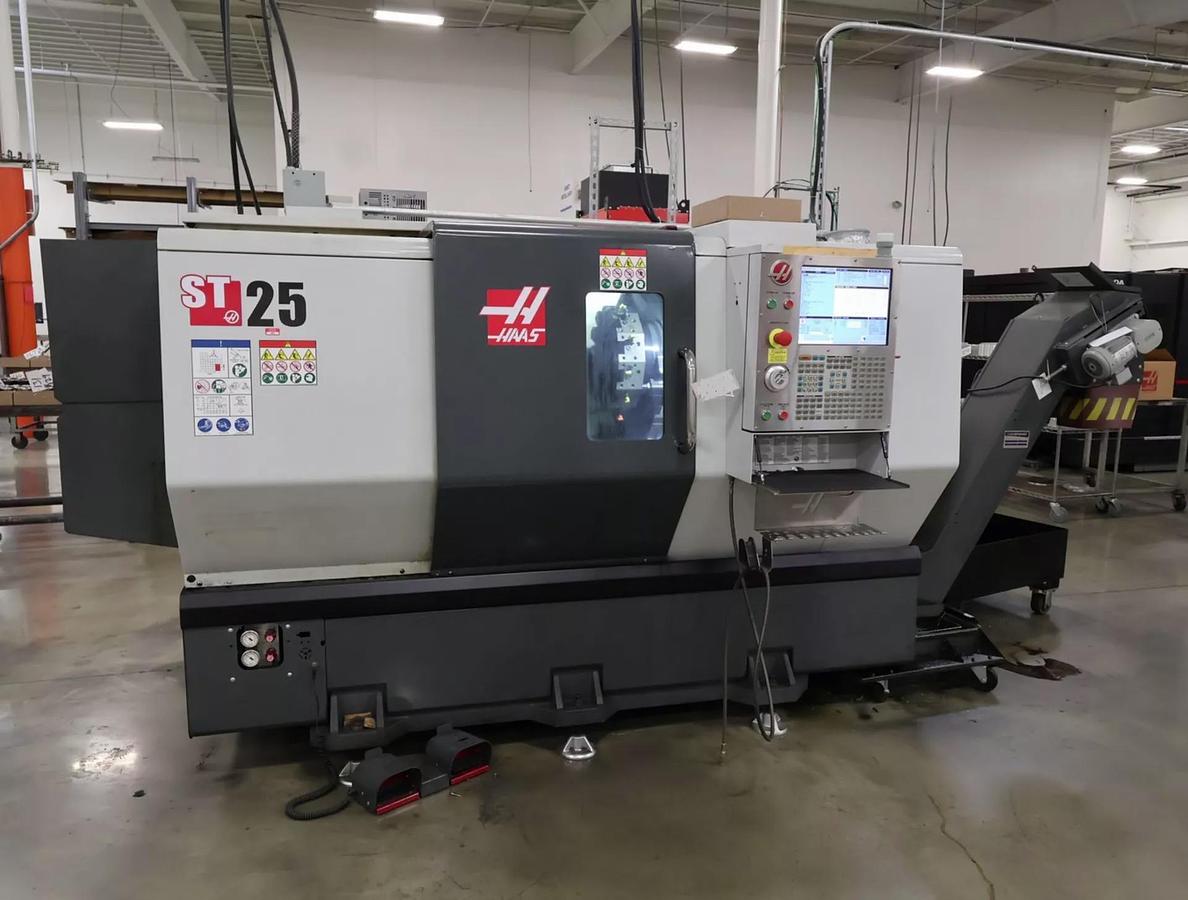

HAAS, ST-25, 2017, CNC LATHE
or
Call (905) 669-7507
Specifications
| Manufacturer | HAAS |
| Model | ST-25 |
| Year | 2017 |
| Stock Number | 4925 |
| Max. Part Swing | 21" |
| Max. Cutting Diameter | 11.75" |
| Max. Cutting Length | 22.5" |
| Bar Capacity | 3" |
| Travels - X-axis | 8.4" |
| Travels - Z-axis | 22.5" |
| Rapid Feedrate on X | 945 ipm |
| Rapid Feedrate on Z | 945 ipm |
| Max. Thrust X | 4100 lbf |
| Max. Thrust Z | 5100 lbf |
| Spindle Nose | A2-6 |
| Max. Rating | 30 Hp |
| Max. Speed | 3,400 rpm |
| Max. Torque | 300.0 ft-lbf @ 500 rpm |
| Spindle Bore | 3.5" |
| No. of Tools | 12 station |
| Boring Bar Rear Clearance (from back of turret ) | 4" |
| Coolant capacity | 55 Gal. |
| Approx. Weight | 9,000 lbs. |
Equipped With
FEED CUTTING TIME: 1,237 HRS.

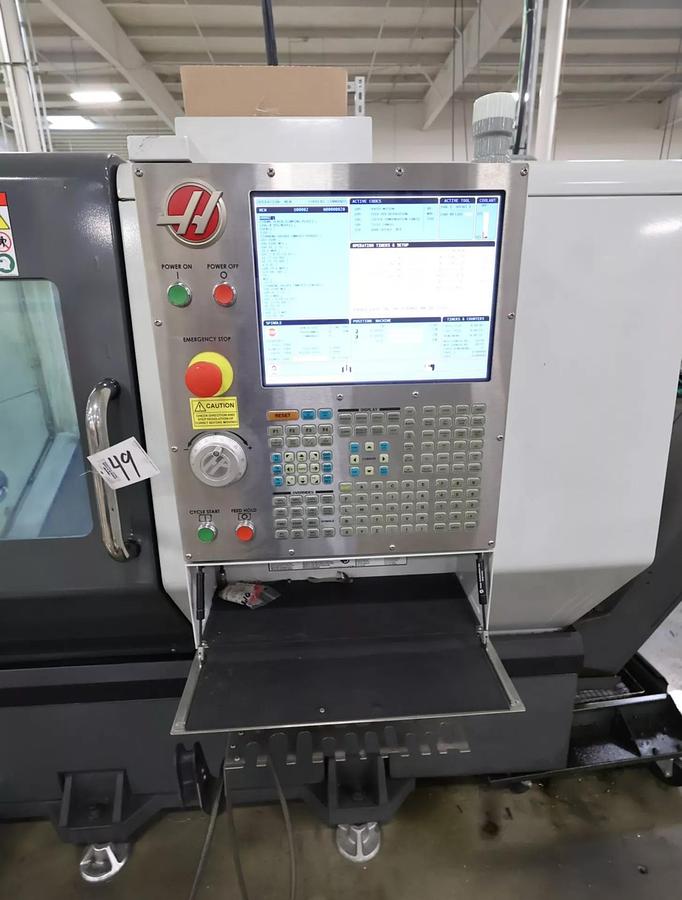

HAAS CNC CONTROL
COLLET CHUCK
RIGID TAPPING
TOOL PRESETTER
12 STN TURRET
HYDRAULIC TAILSTOCK
CHIP CONVEYOR
