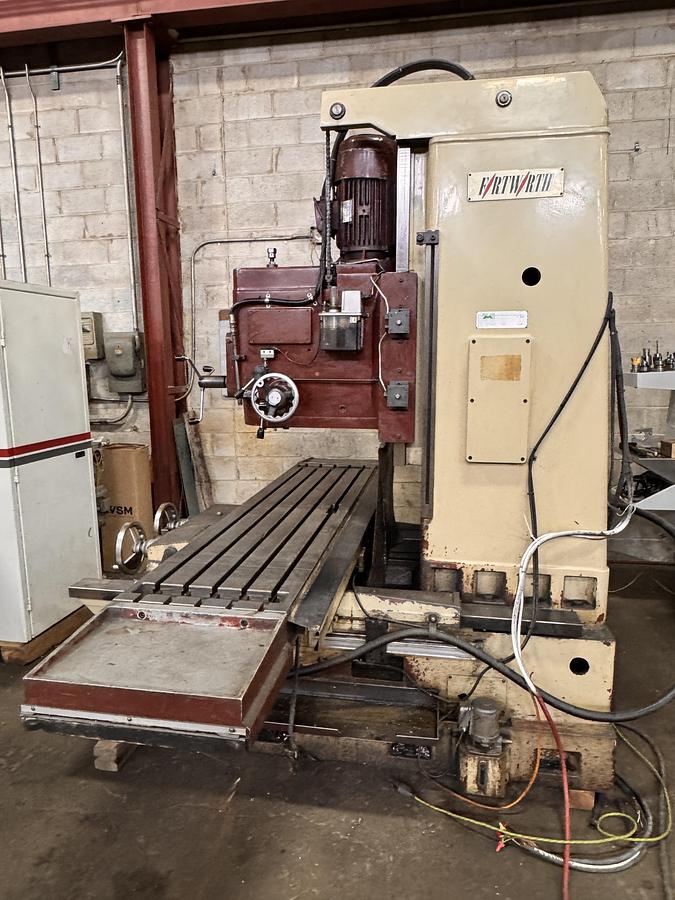

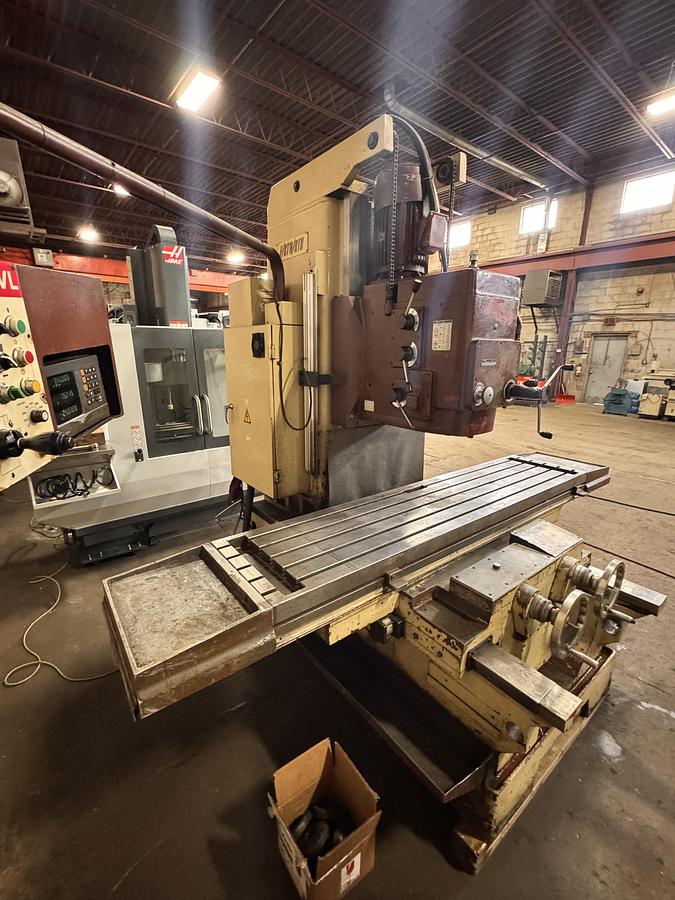

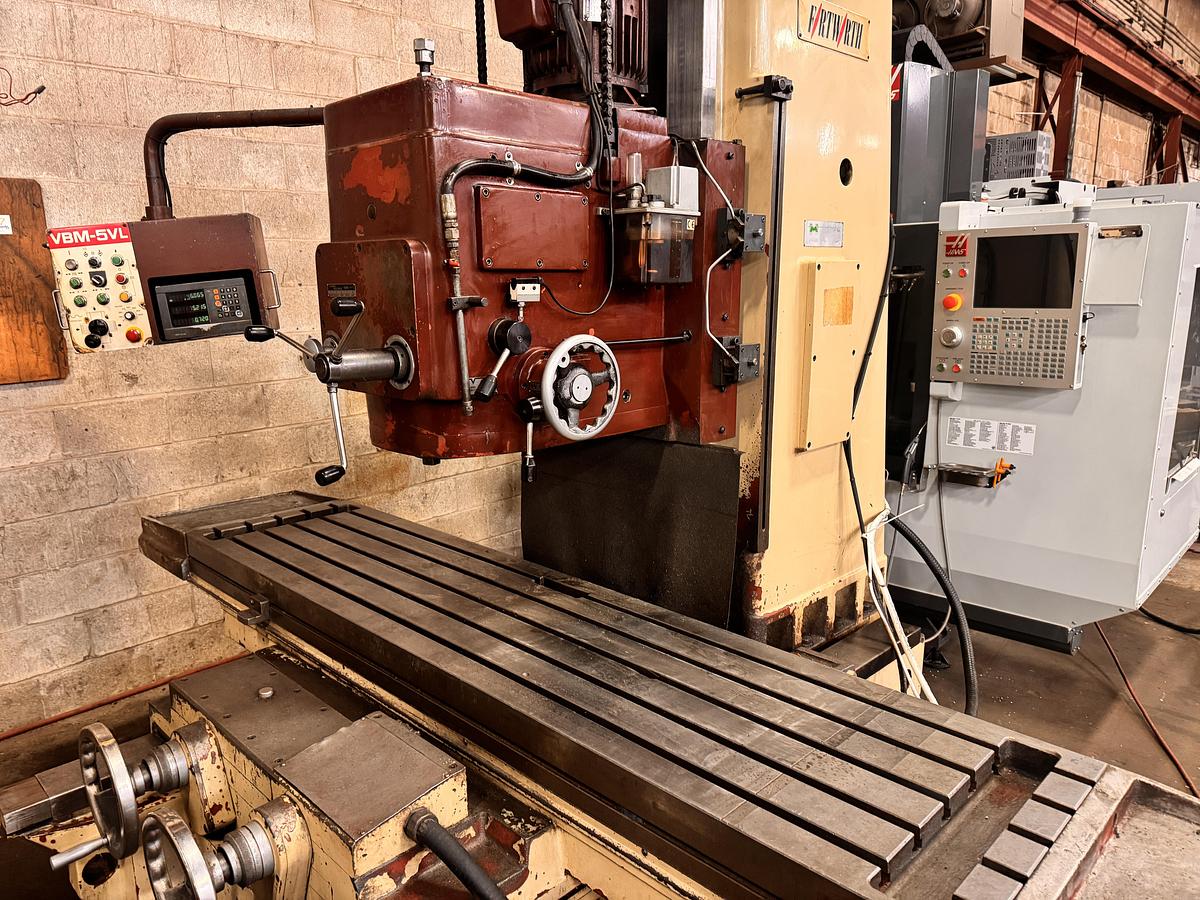

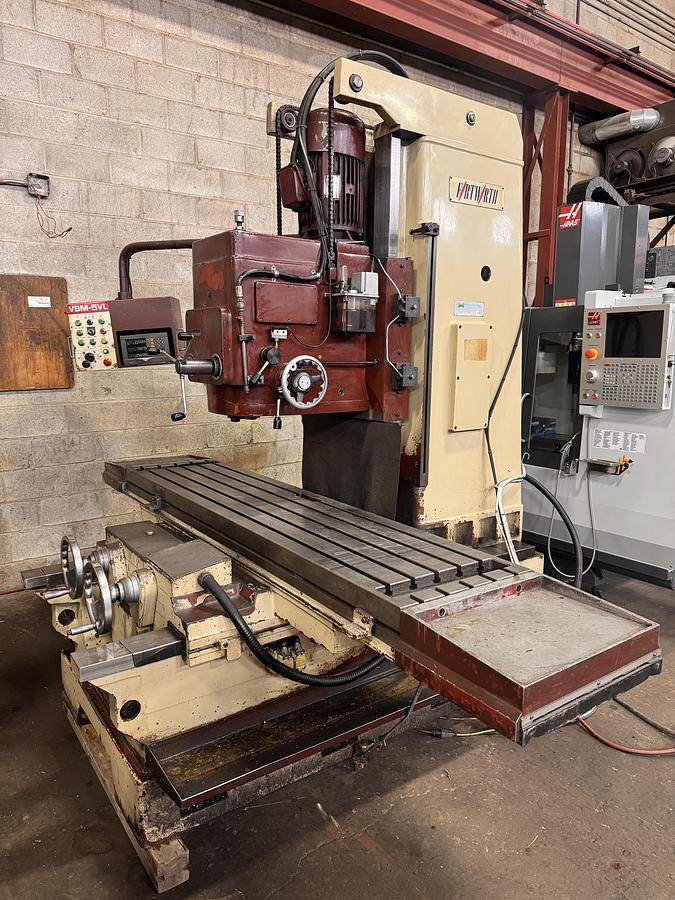

19" x 86" FORTWORTH MODEL, VBM-5VL BED TYPE VERTICAL MILLING MACHINE
Specifications
| Manufacturer | FORTWORTH |
| Model | VBM -5VL |
| Year | 2000 |
| Stock Number | 4923 |
| YEAR | 2000 |
| TABLE WIDTH | 19" |
| TABLE LENGTH | 86" |
| TABLE TRAVEL - LONGITUDINAL | 59' |
| TABLE TRAVEL - CROSS | 23" |
| SPINDLE TAPER | #50 TAPER |
| SPINDLE SPEED | 45-1500 RPM |
| MOTOR | 10 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. DIMENSIONS | 134"x 101"x 113" |
| APPROX. WEIGHT | 14 100 LBS |
| TABLE LOAD CAPACITY | 4120 LBS |
| SPINDLE NOSE TO TABLE | 4" TO 31 1/2" |
Equipped With
3 AXIS HEIDENHAIN DRO
COOLANT PUMP
LUBRICATION
RAPID FEEDS
JOYSTICK CONTROL
The Fortworth VBM-5VL Bed Type Vertical Milling Machine is a robust manual mill, ideal for various industrial applications. This 2000 model features a spacious 19" x 86" table, allowing for extensive material handling with a 59" longitudinal and 23" cross travel. The machine operates with a powerful 10 HP motor and supports spindle speeds ranging from 45 to 1500 RPM, accommodating different milling requirements with a #50 taper spindle. Equipped with a 3-axis Heidenhain DRO, this milling machine ensures precision and ease of operation. Additional features include a coolant pump, lubrication, rapid feeds, and joystick control, enhancing both performance and user convenience. With a spindle nose to table distance of 4" to 31 1/2" and a table load capacity of 4120 lbs, it caters to a diverse range of machining tasks. This used milling machine presents an approximate weight of 14,100 lbs and dimensions of 134" x 101" x 113", suitable for sizable workshops. Operating on 575V/3/60 electricity, the Fortworth VBM-5VL provides reliable performance, making it a valuable addition to any milling operation seeking capacity and durability.
