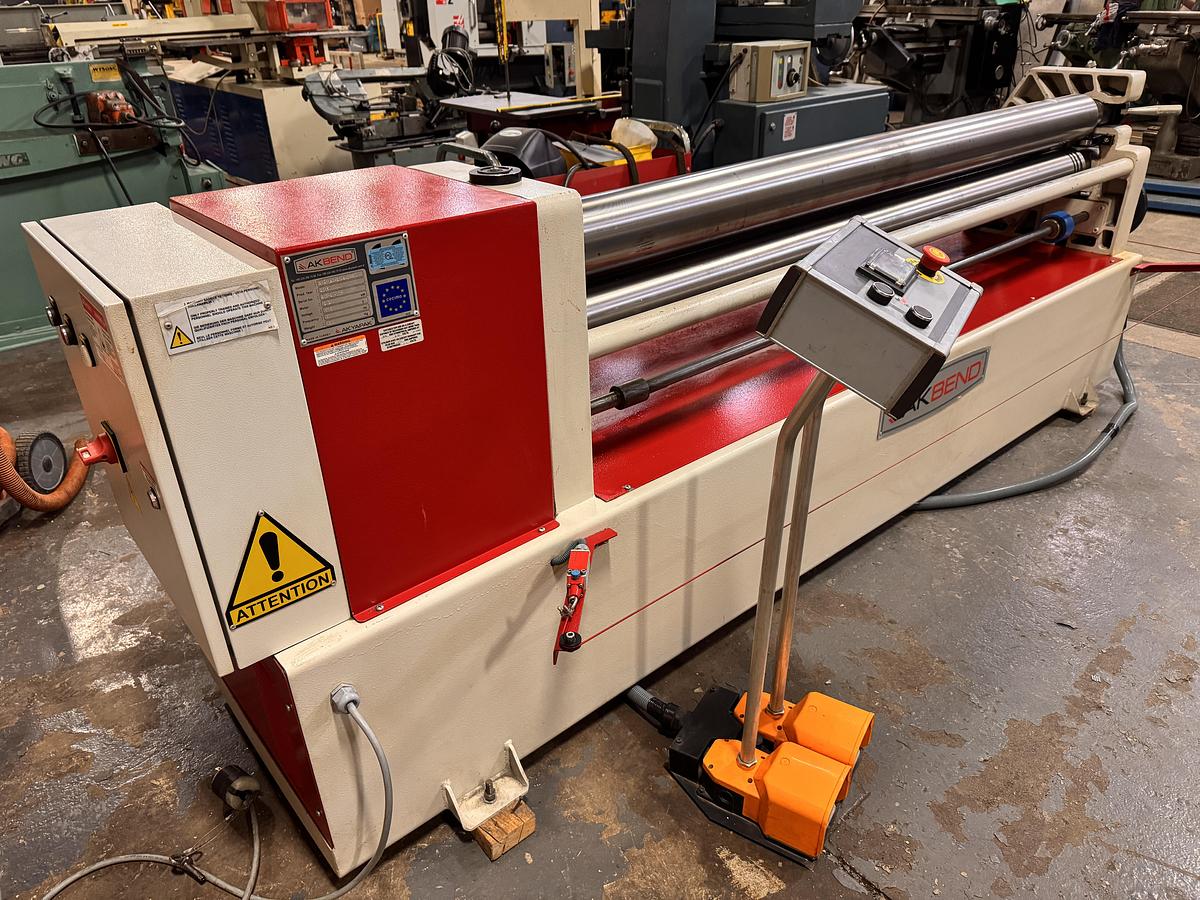

5/32" X 80", AKBEND, HYDRAULIC, INITIAL PINCH PLATE ROLLS - 2015
or
Call (905) 669-7507
Specifications
| Manufacturer | AKBEND |
| Model | ASM 140-20/4.0 MMIJ |
| Year | 2015 |
| Stock Number | 4884 |
| MAX. THICKNESS | 3/16" |
| PRE-BENDING THICKNESS | 5/32" |
| BENDING LENGTH | 80" |
| ROLL DIAMETER | 5.5" |
| BENDING SPEED | 224"/MIN. |
| ELECTRICS | 575 V/3 PH/ 60 HZ |
| MOTOR HP | 4 HP ( 2.2 KW ) |
| APPROX. WEIGHT | 3,400 LBS. |
| OVERALL DIMENSIONS | 91.3" L X 35.5" W X 48" TALL |
Equipped With
FOOT PEDESTAL CONTROL W/DIGITAL DISPLAY
MOTORIZED REAR ROLL ADJUSTMENT
CENTRAL ROLLERS POWERED WITH ELECTRIC MOTOR & GEAR DRIVE
SAFETY LINE
UPPER ROLLER CAN BE SWIVELLED OUT
HARDENED ROLLERS
