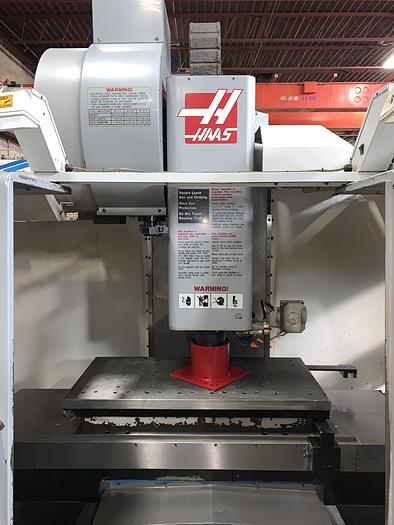

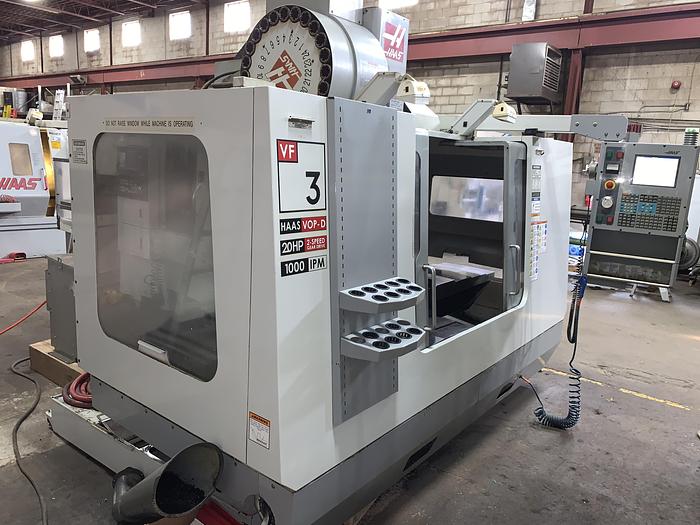

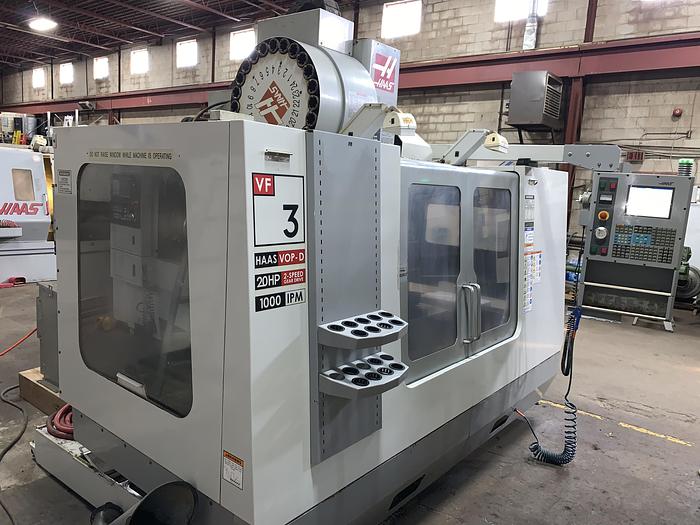

40"X, 20"Y, 25"Z, HAAS, VF-3BAPC, 2004, CNC VERTICAL MACHINING CENTER
Sold
Specifications
| Manufacturer | HAAS |
| Model | VF-3BAPC |
| Year | 2004 |
| Stock Number | 4130 |
| TABLE AREA | 48" x 18" (PALLET SHUTTLE) |
| X-AXIS TRAVEL | 40" |
| Y-AXIS TRAVEL | 20" |
| Z-AXIS TRAVEL | 25" |
| MAX. TABLE LOAD | 3,500 LBS. |
| SPINDLE NOSE TO TABLE SURFACE | 4" - 29" |
| NO. OF STATIONS ON ATC | 24 + 1 |
| SPINDLE TAPER | CAT 40 |
| MAX. SPINDLE SPEED | 7,500 RPM, 2-SPEED GEARBOX |
| RAPID FEED RATE - X /Y /Z | 710"/MIN. |
| MAIN MOTOR | 20 HP |
| MAX. TOOL WEIGHT | 12 LBS. |
| APPROX. WEIGHT | 12,500 LBS. |
| APPROX. OVERALL DIMENSIONS | 139"L X 110"D X 118"H |
| ELECTRICS | 220V/3/60 |
Equipped With
BRUSHLESS 4TH AXIS WIRING
COOLANT CHIP SWEEP SYSTEM
HIGH INTENSITY LIGHTING
CHIP AUGER
SIDEMOUNT TOOL CHANGER 24+1
P-COOL
FLOPPY DRIVE
REMOTE JOG HANDLE
1 MB MEMORY
COORDINATE ROTATION & SCALING
MACRO
QUICKCODE PROGRAMMING
SPINDLE ORIENTATION
RIGID TAPPING
HIGH SPEED MACHINING
