30"X, 16"Y, 20"Z, HAAS, VF-2SS, 2013, CNC VERTICAL MACHINING CENTER, W/ 4TH AXIS ROTARY TABLE
Sold
Specifications
| Manufacturer | 30"X, 16"Y, 20"Z, HAAS, VF-2SS, 2013, CNC VERTICAL MACHINING CENTER, W/ 4TH AXIS ROTARY TABLE |
| Model | VF-2SS |
| Year | 2013 |
| Stock Number | 4124 |
| TABLE AREA | 36" X 14" |
| X-AXIS TRAVEL | 30" |
| Y-AXIS TRAVEL | 16" |
| Z-AXIS TRAVEL | 20" |
| MAX. TABLE LOAD | 1,500 LBS. |
| SPINDLE NOSE TO TABLE SURFACE | 4" - 24" |
| NO. OF STATIONS ON ATC | 24 + 1 |
| SPINDLE TAPER | CAT 40 |
| MAX. SPINDLE SPEED | 12,000 RPM, DIRECT DRIVE |
| MAIN MOTOR | 30 HP |
| RAPID FEEDRATE | 1,400 IPM |
| MAX. CUTTING FEEDRATE | 833 IPM |
| MAX. TOOL WEIGHT | 12 LBS. |
| APPROX. WEIGHT | 8,000 LBS. |
| APPROX. OVERALL DIMENSIONS | 110" L X 93" D X 105" H |
| ELECTRICS | 220V/3/60 |
Equipped With

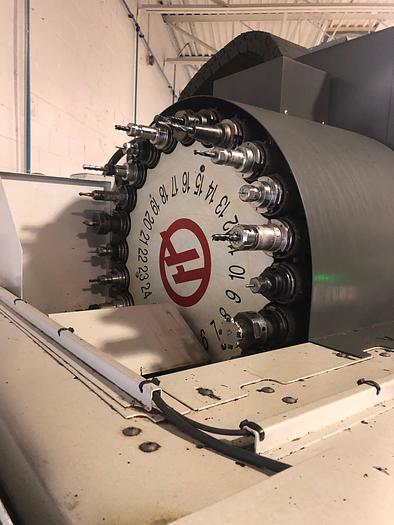

24 + 1 SIDEMOUNT TOOLCHANGER
BRUSHLESS 4TH AXIS READY
CHIP AUGER
COORDINATING ROTATION & SCALING
MACRO
HIGH INTENSITY LIGHTING

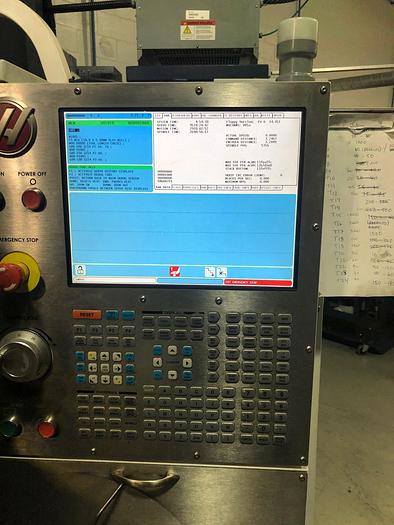

INTUITIVE PROGRAMMING SYSTEM
REMOTE JOG HANDLE
SPINDLE ORIENTATION
THRU SPINDLE COOLANT
P-COOL
RENASHAW WIRELESS PROBING SYSTEM
RIGID TAPPING
EARLY POWER FAILURE DETECTION SYSTEM
750 MB EXPANDED MEMORY
AUXILIARY COOLANT FILTER SYSTEM
HRT-210 4TH AXIS ROTARY TABLE
