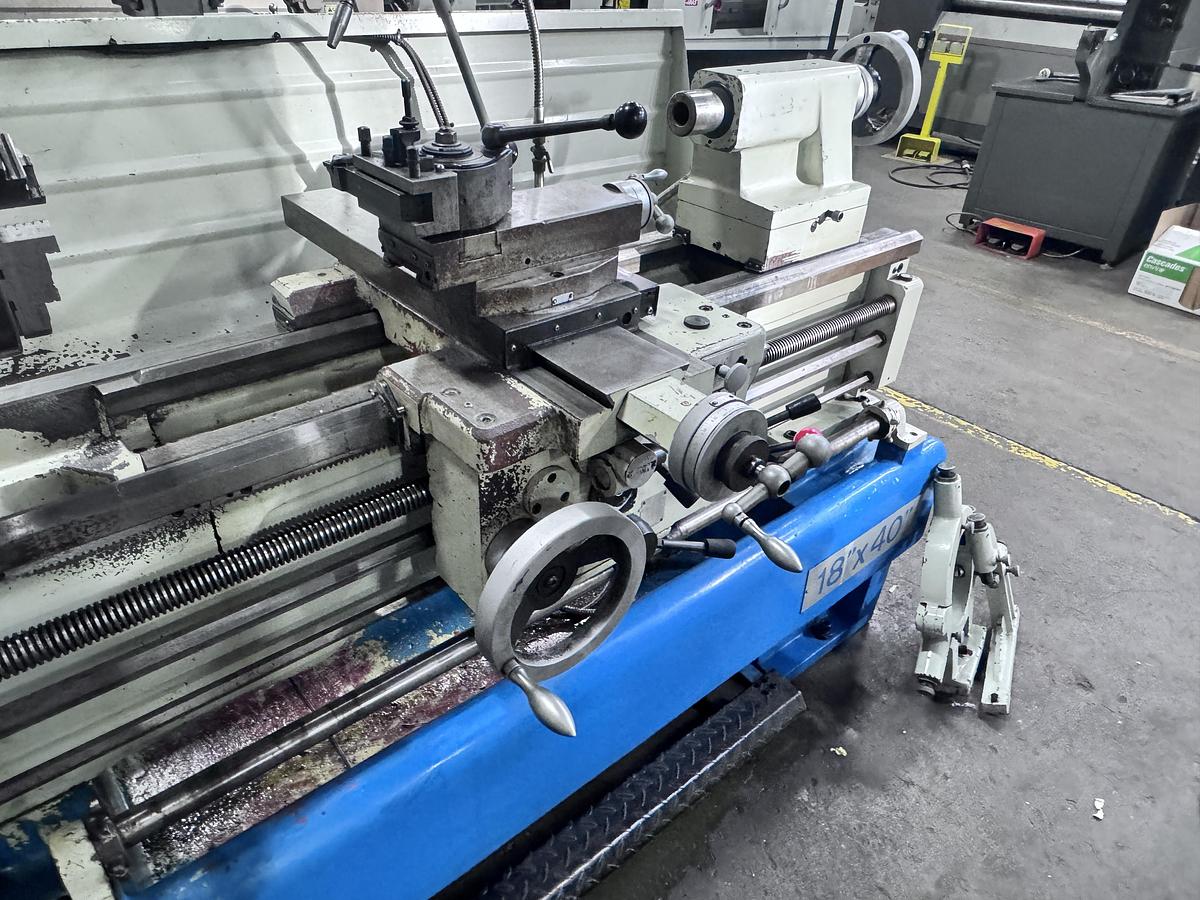

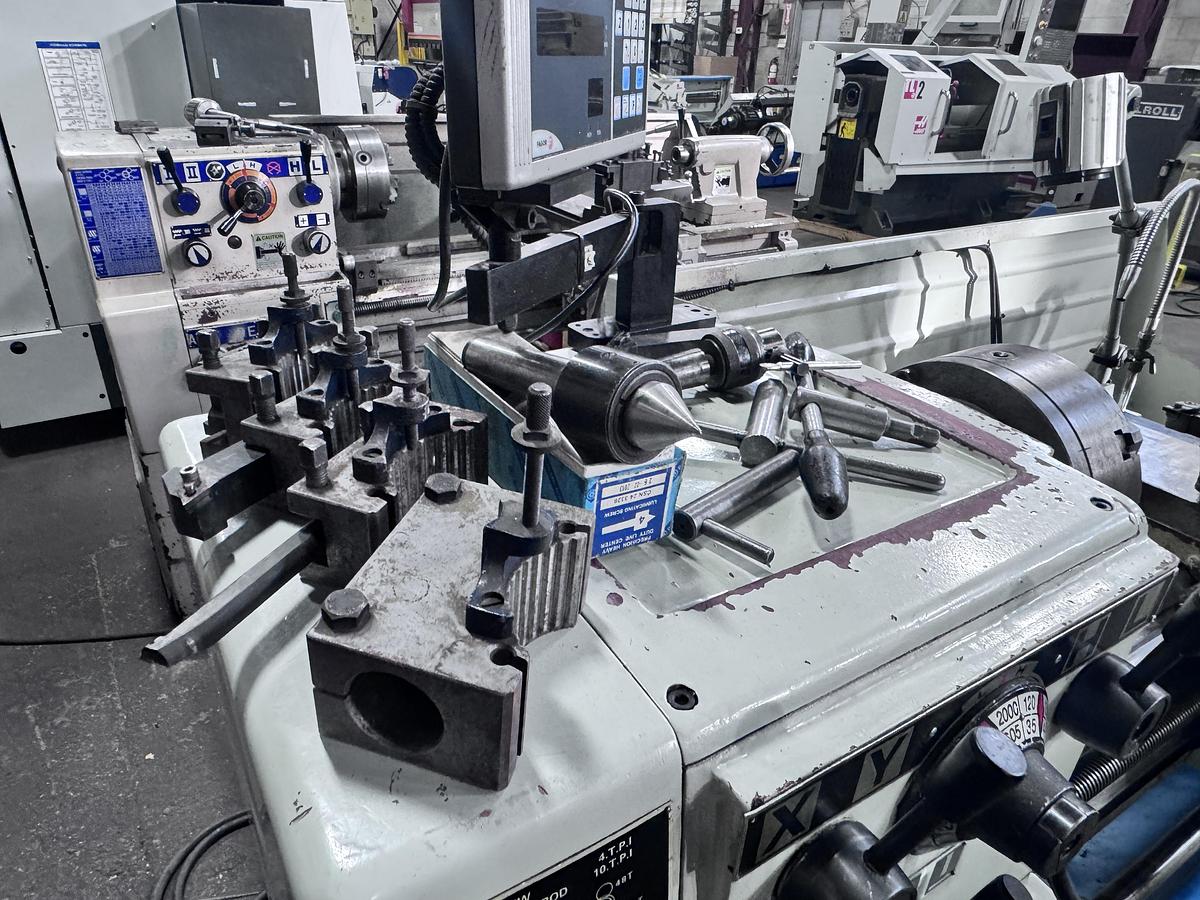

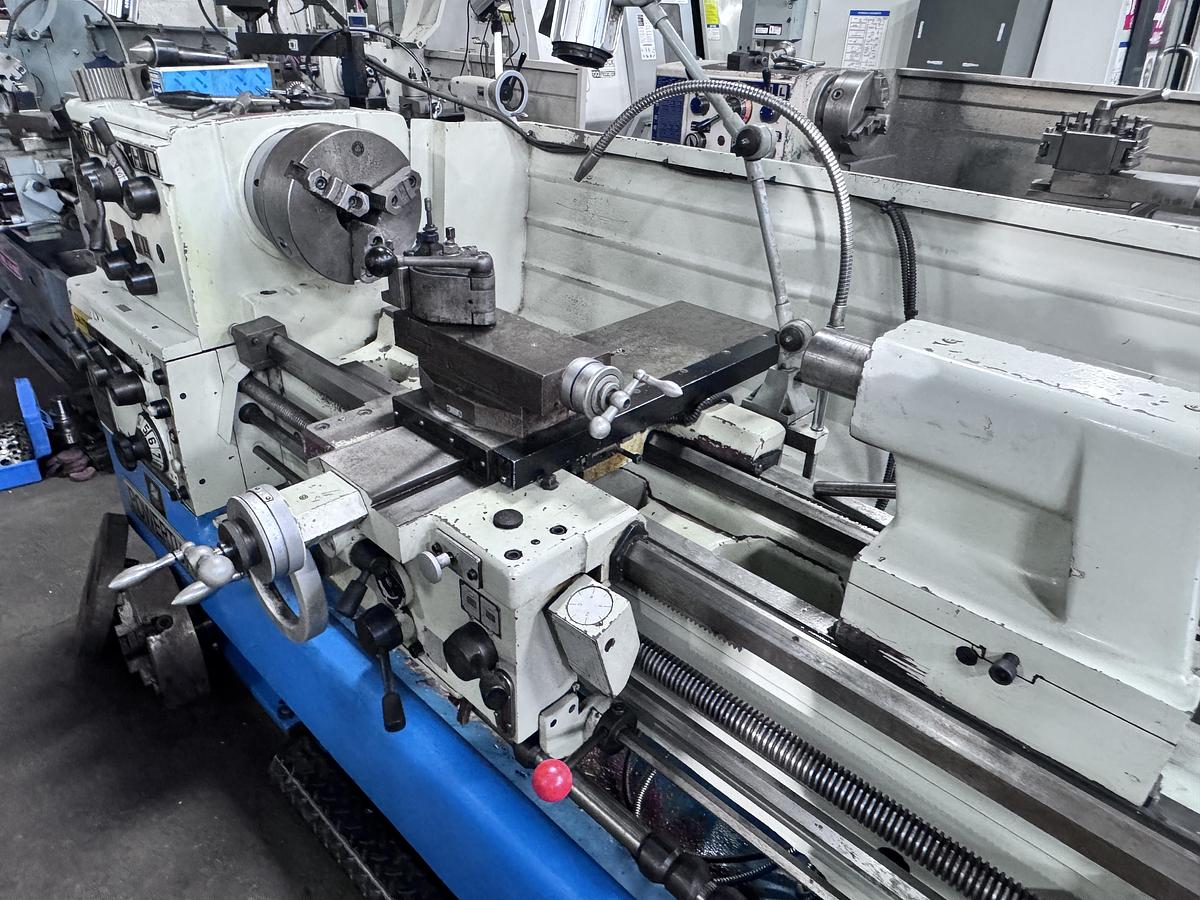

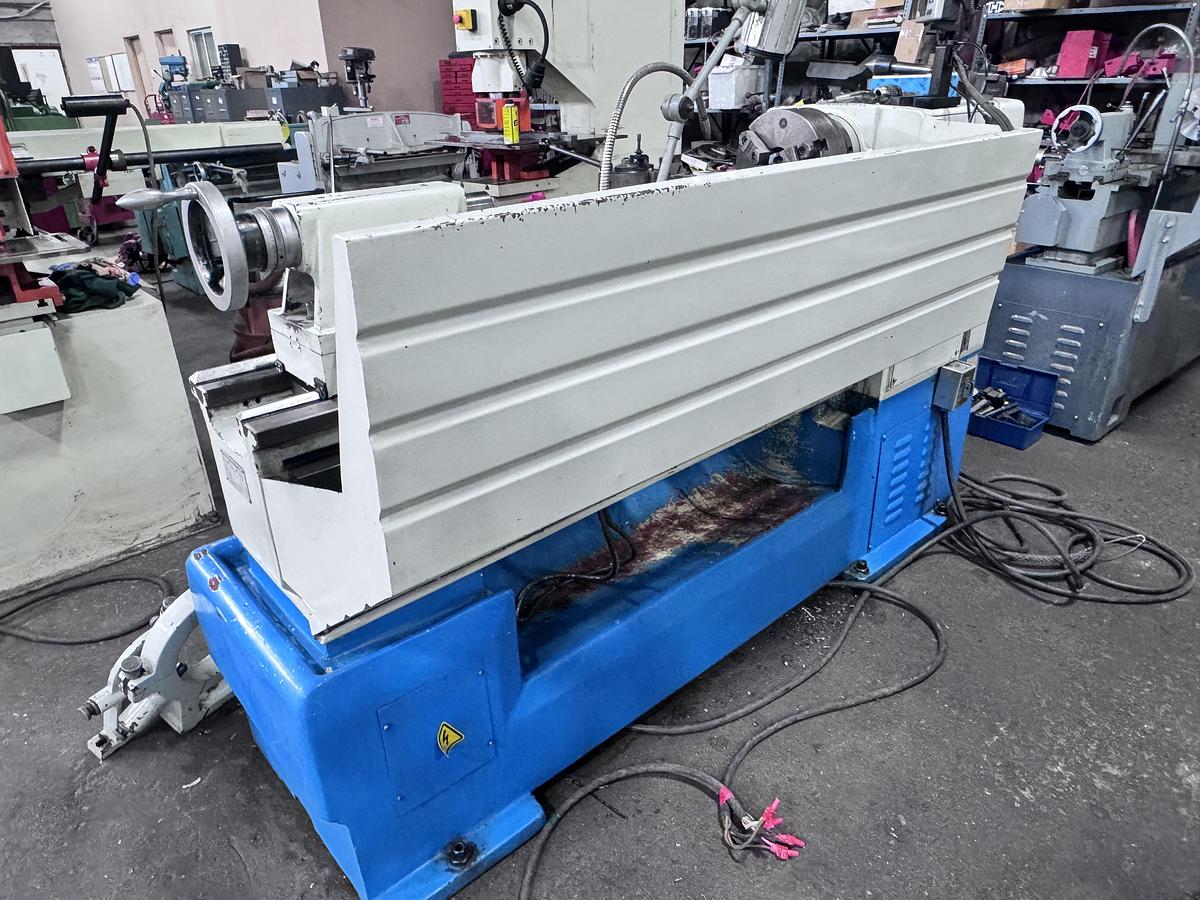

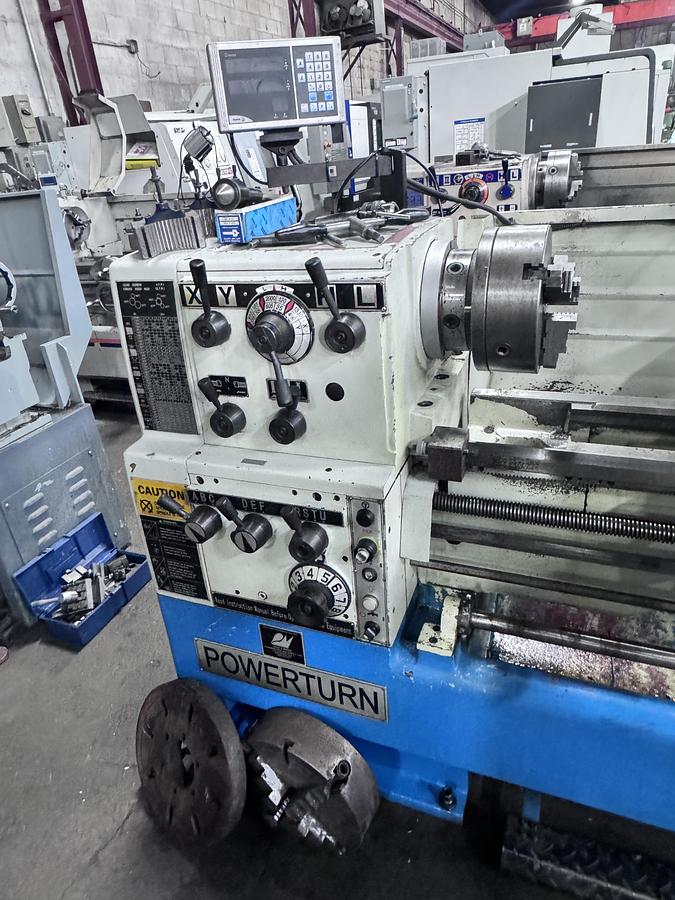

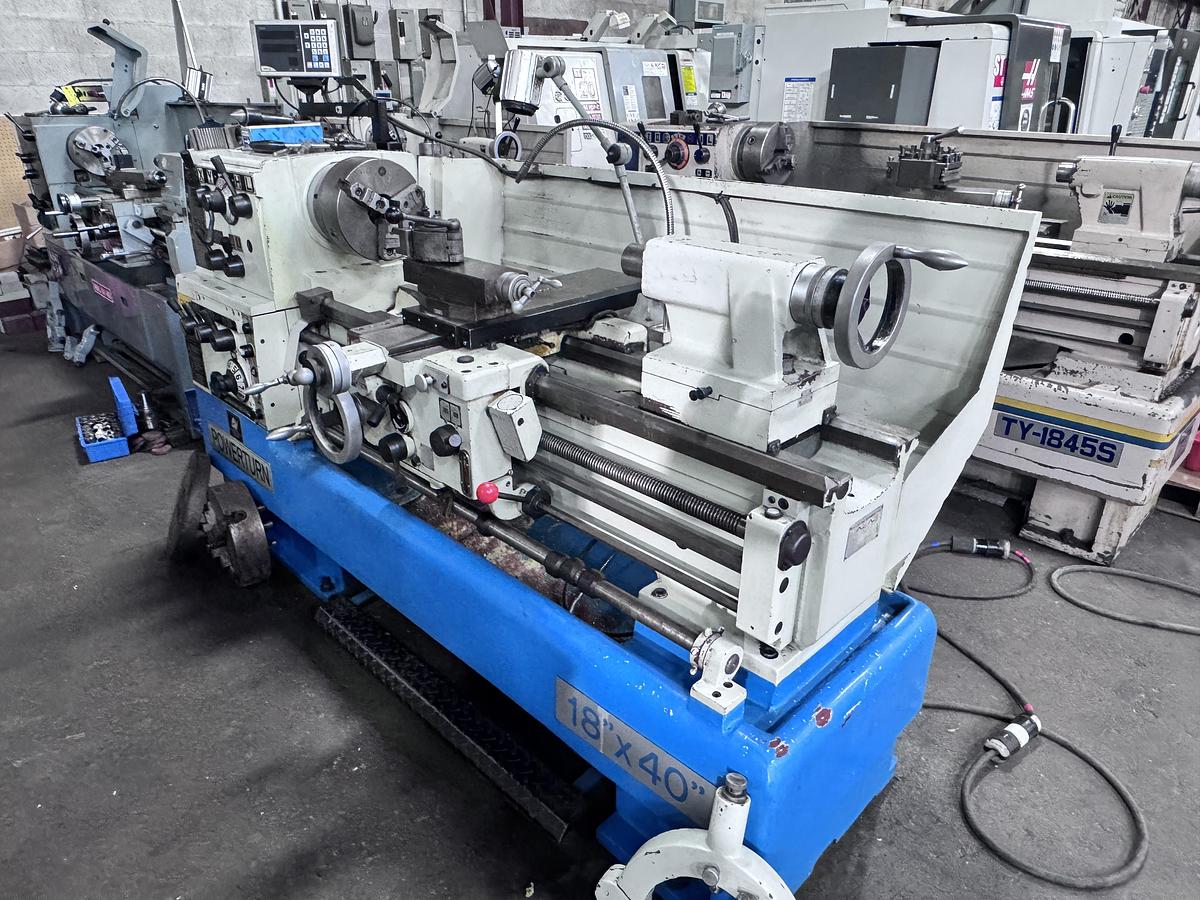

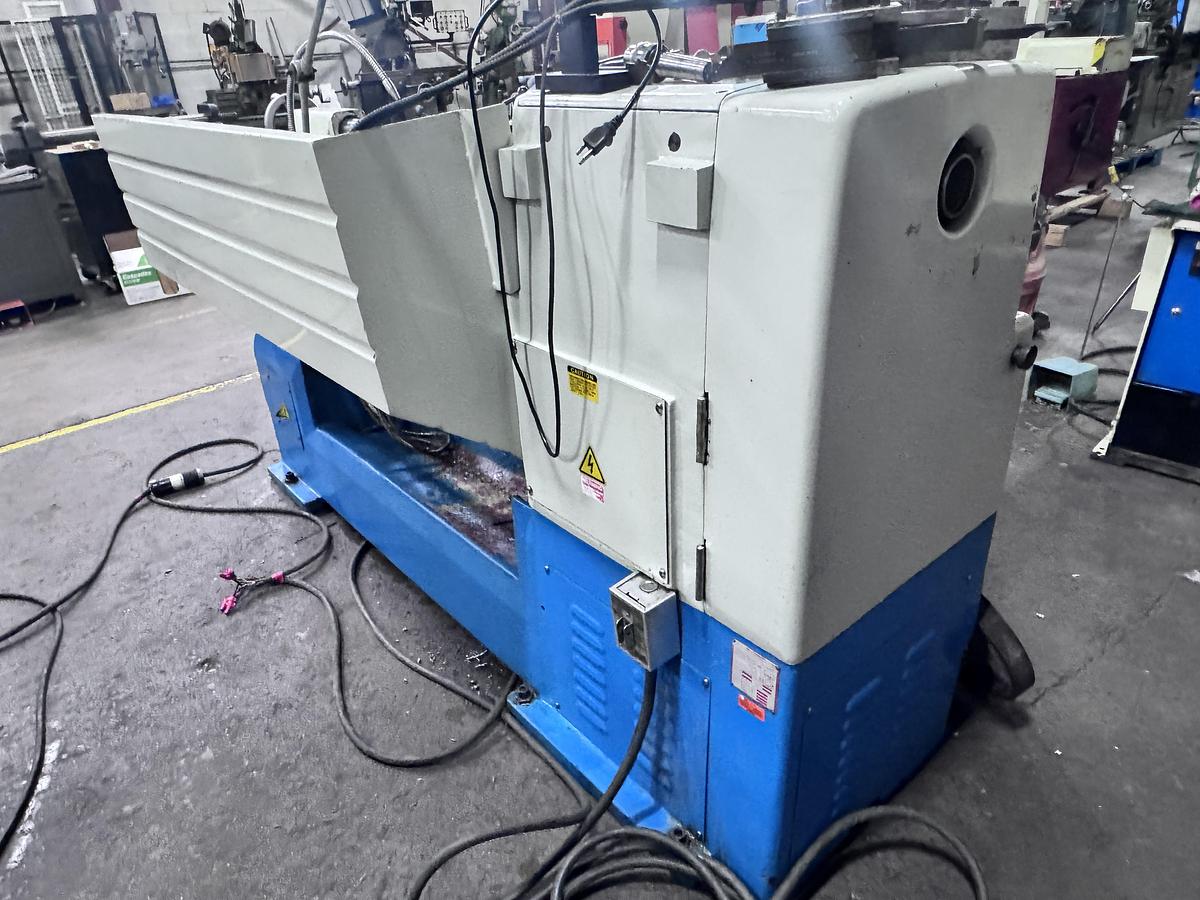

18" X 40", POWERTURN, TOOLROOM LATHE
or
Call (905) 669-7507
Specifications
| Manufacturer | POWERTURN |
| Model | C6246X1000 |
| Stock Number | 4854 |
| SWING OVER BEDWAYS | 18" |
| SWING OVER CROSS SLIDE | 10.4" |
| SWING IN GAP | 27" |
| WIDTH OF BED | 11.85" |
| CENTER DISTANCE | 40" |
| SPINDLE NOSE - CAMLOCK | D1-8 |
| SPINDLE BORE | 2-1/8" |
| SPINDLE SPEEDS (12) | 25 - 2000 RPM |
| SPINDLE TRAVEL OF TAILSTOCK | 4.75" |
| TAPER OF TAILSTOCK | MT 4 |
| WEIGHT (40" CENTRES) | 4,400 LBS |
| APPROX. OVERALL DIMENSIONS | 7'L x 34"D x 50"H |
Equipped With
-ONE PIECE CASE BASE -HARDENED & GROUND BEDWAYS -COOLANT SYSTEM -REAR SPLASH GUARD -FOOT PEDAL BRAKE -THREAD CUTTING DIAL -STEADY REST -FOLLOW REST -HALOGEN WORK LIGHT -FACE PLATE -3-JAW CHUCK 10" -4-JAW CHUCK 12" -QUICK CHANGE TOOLPOST W/ ASSORTED HOLDERS -ELECTRICS 575/360
