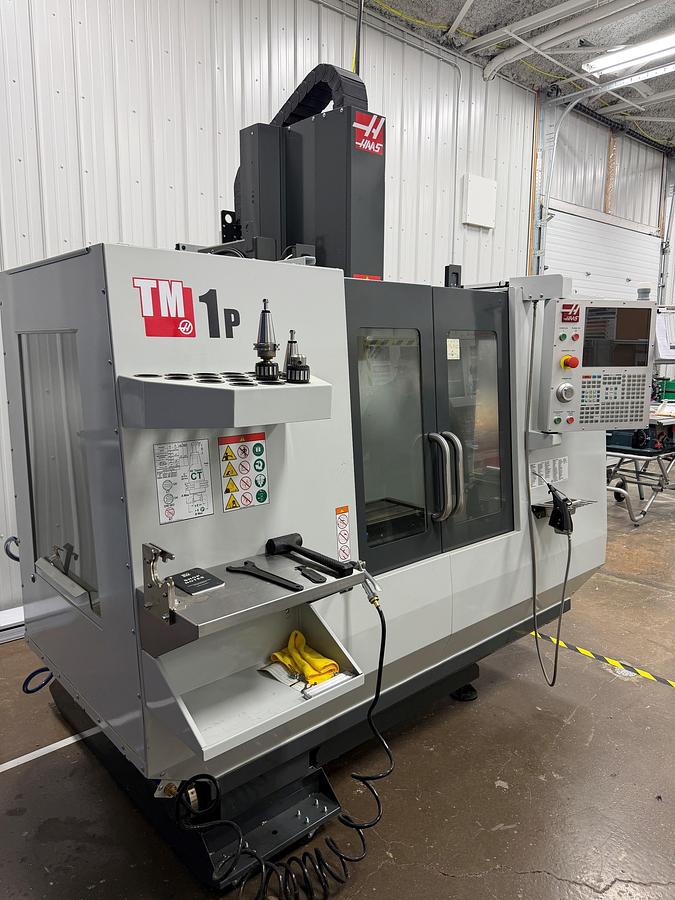

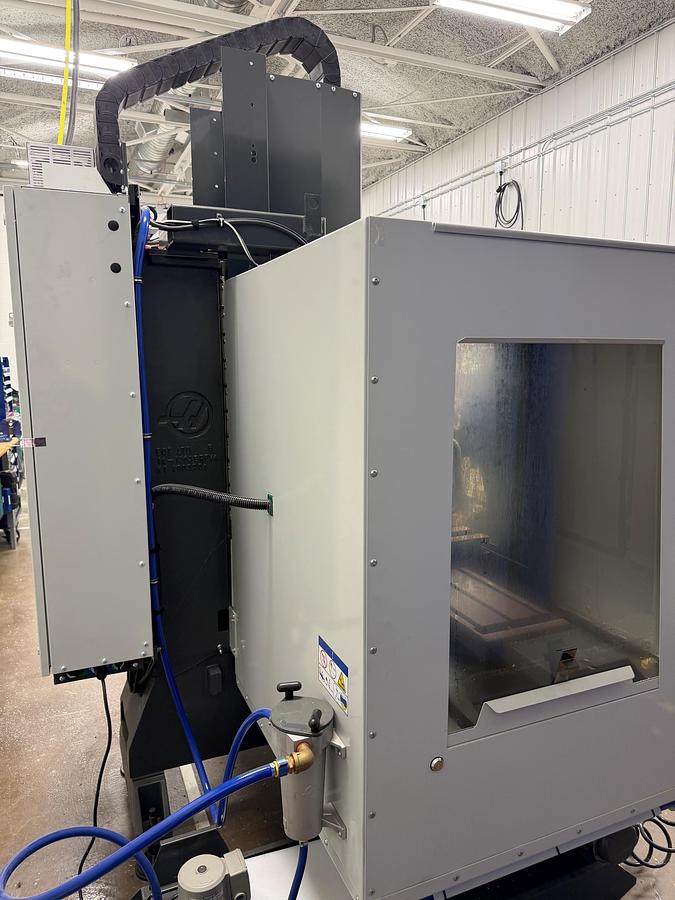

30"X, 16"Y, 16"Z, HAAS, TM-1P, 2020, CNC VERTICAL TOOLROOM MILL
or
Call (905) 669-7507
Featured
Specifications
| Manufacturer | HAAS |
| Model | TM-1P |
| Year | 2020 |
| Stock Number | 4897 |
| X-AXIS TRAVEL | 30" |
| Y-AXIS TRAVEL | 16" |
| Z-AXIS TRAVEL | 16" |
| SPINDLE NOSE TO TABLE ( MAX ) | 20" |
| SPINDLE NOSE TO TABLE ( MIN ) | 4" |
| SPINDLE HP | 7.5 HP |
| MAX. SPINDLE SPEED | 6000 RPM |
| DRIVE SYSTEM | DIRECT SPEED, BELT DRIVE |
| TAPER | CAT 40 |
| COOLING | AIR COOLED |
| WORKTABLE AREA | 47.8" X 10.5" |
| T-SLOT CENTER DISTANCE | 4" |
| MAX. WORKPIECE WEIGHT | 350 LBS. |
| MAX. CUTTING FEEDRATE - X, Y, Z | 400 IPM |
| TOOL CHANGER CAPACITY - CAROUSEL TYPE | 10 |
| MAX. TOOL DIAMETER (FULL) | 3.5" |
| MAX. TOOL WEIGHT | 12 LBS. |
| APPROX. WEIGHT OF MACHINE | 4,440 LBS. |
Equipped With
1GB memory

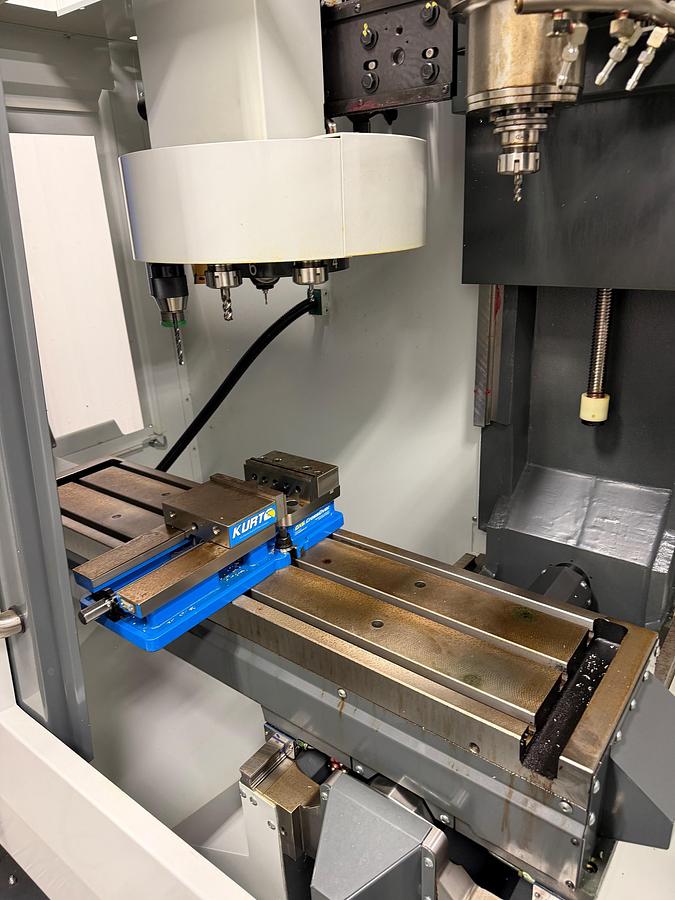

Convenience package including toolholder vise, tool tray, front writing table
Assorted Tool Holders
Coolant pump kit
CT option
ETHERNET interface
Haas connect
Edia display
Visual programming system
WIFI
Worklight
10 pocket toolchanger
6000 rpm spindle
