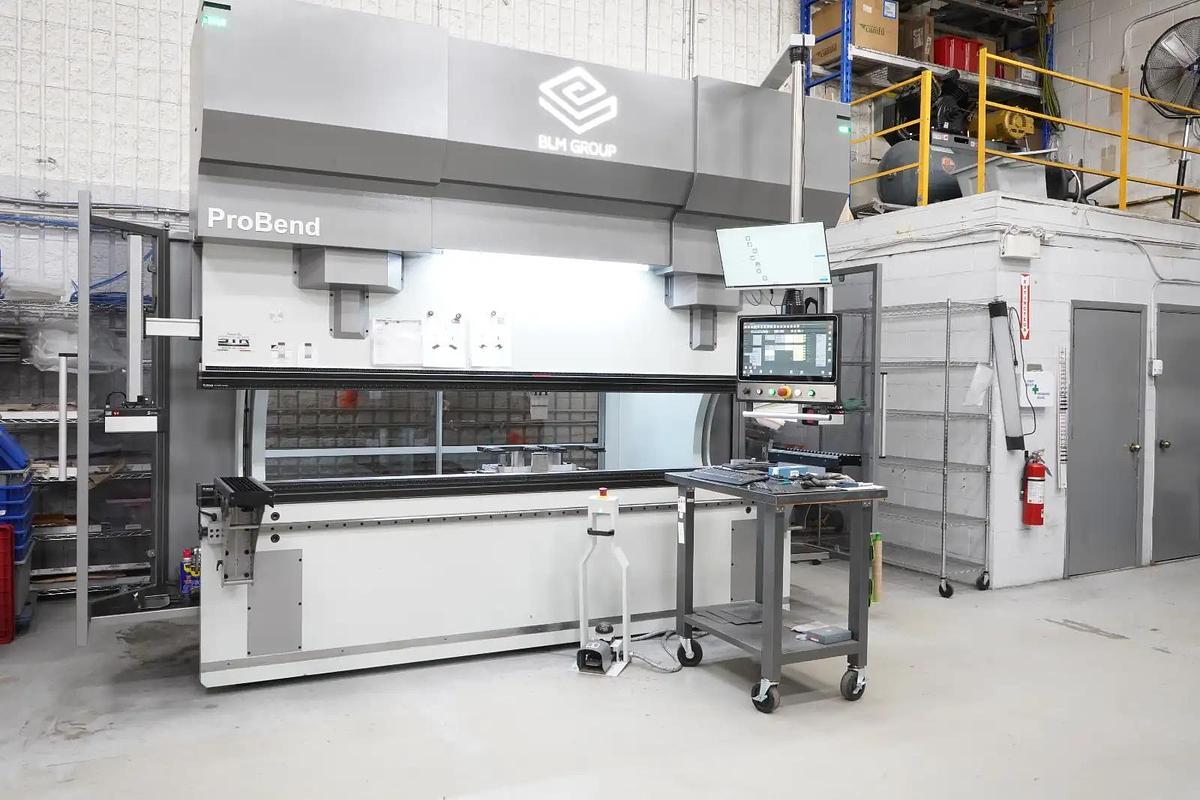

BLM 165 TON x 10' ELECTRIC CNC PRESS BRAKE 2021
or
Call (905) 669-7507
Specifications
| Manufacturer | BLM |

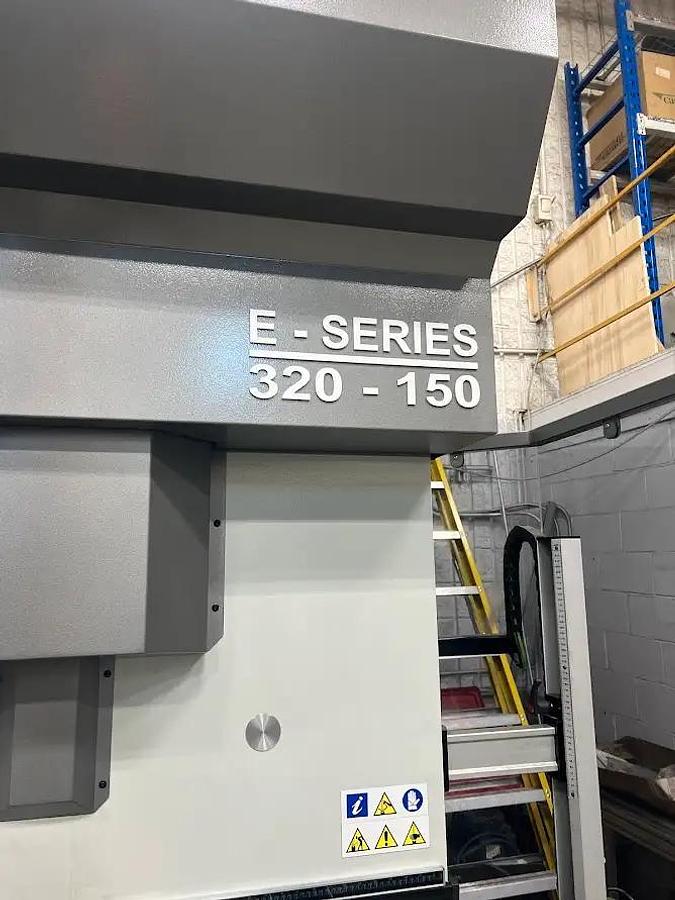

| Model | 320-150 |
| Year | 2021 |
| Stock Number | 4850 |
| TONNAGE | 165 TON |
| OVERALL BENDING LENGTH | 126" |
| DISTANCE BETWEEN FRAMES | 100" |
| STROKE | 14" |
| OPEN HEIGHT | 29" |
| CLOSED HEIGHT | 15" |
| MOTOR | 30 HP |
| APPROX. WEIGHT | 25824 LBS. |
| APPROACH SPEED | 354 IPM |
| BENDING SPEED | 2-59 IPM |
| RETURN SPEED | 354 IPM |
| THROAT DEPTH | 20" |
Equipped With

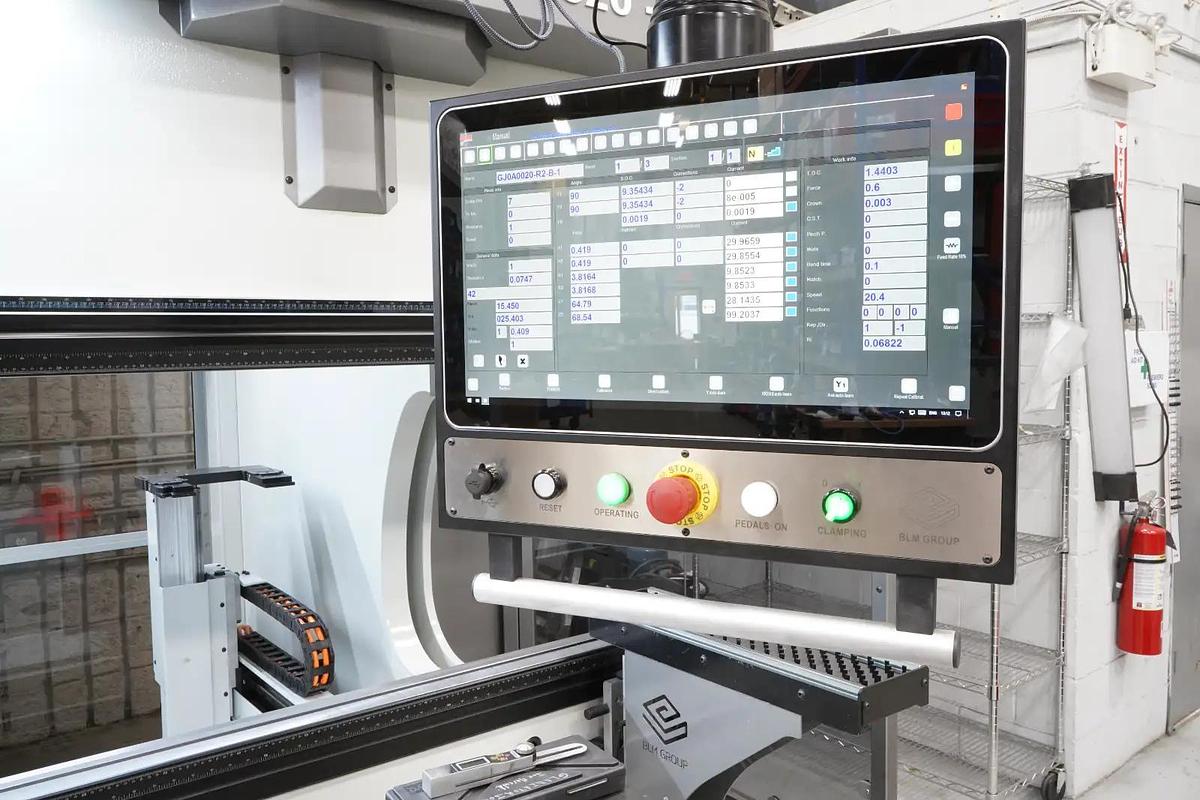

SPHERA 21 BY ESA CNC CONTROL -3 D CAPABLE

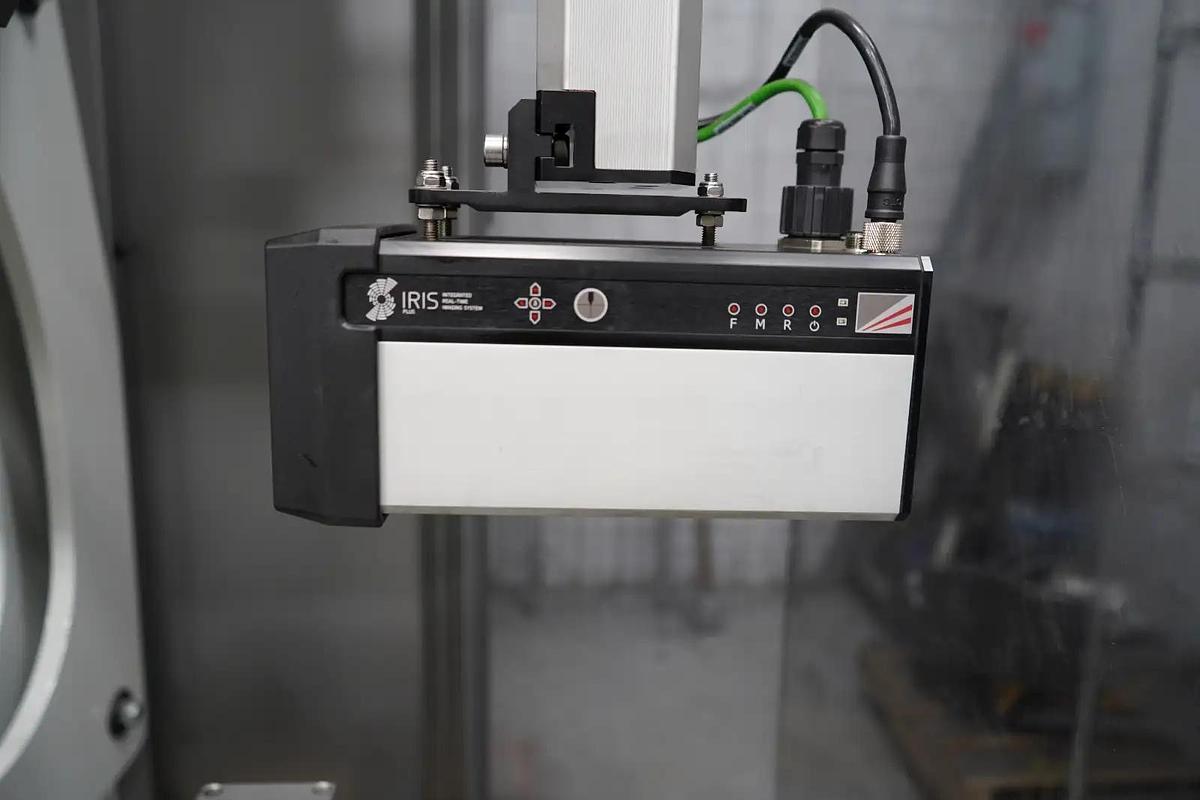

LAZER SAFE IRIS PLUS W/ MEASURING WITH ANGLE CORRECTION

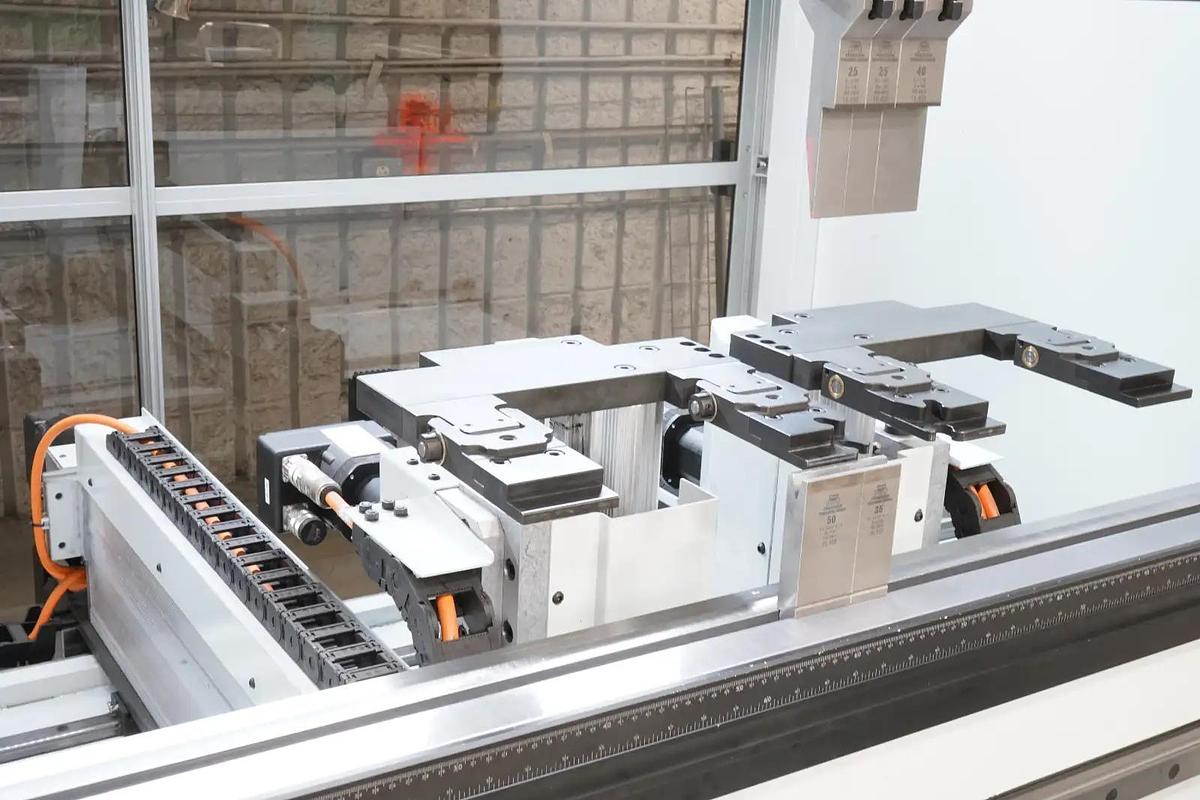

6 AXIS BACK GAUGE (X1/X2 R1R2Z1Z3)
WILA NEW STANDARD HYDRAULIC CLAMPING
WILA NEW STANDARD PRO DIE BOTTOM CLAMING AND CNC CROWNING
2 x FRONT MOUNTED SHEET SUPPORTS
LED TOOL LOCATOR GUIDE
