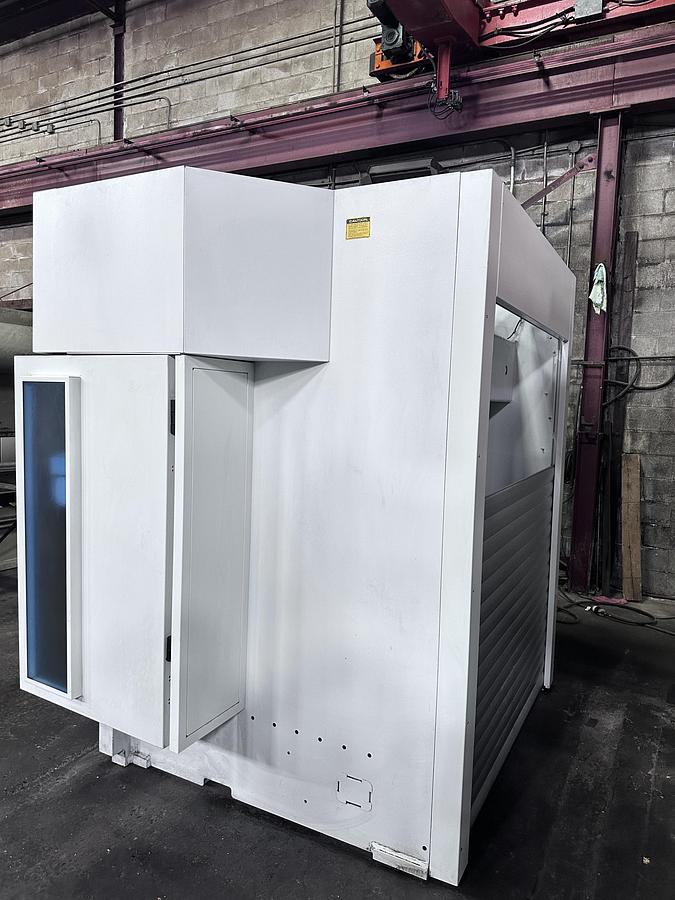

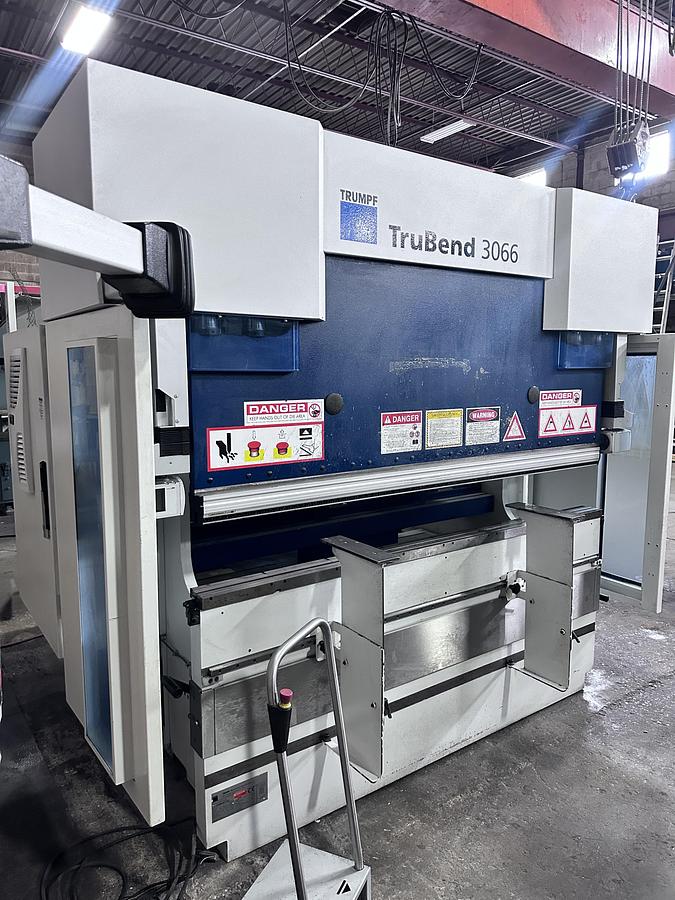

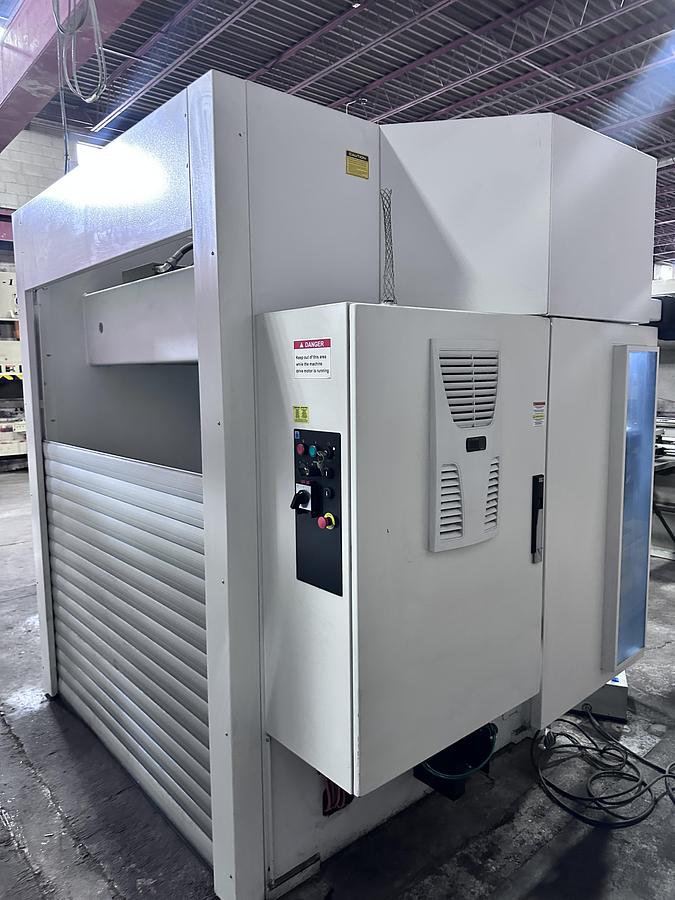

73 TON X 82", TRUMPF TRUBEND 3066, CNC HYDRAULIC PRESS BRAKE - 2013
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 3066 |
| Year | 2013 |
| Stock Number | 4807 |
| BEND CAPACITY | 73 TONS |
| OVERALL BENDING LENGTH | 82" |
| DISTANCE BETWEEN FRAMES | 69" |
| THROAT DEPTH | 16-1/2" |
| STROKE | 7.87" |
| OPEN HEIGHT | 14" |
| SPEEDS - Y-RAPID | 472 IN./MIN. |
| Y-WORKING, MAX. | 35 IN./MIN. |
| Y-RETURN TRAVERSE SPEED | 472 IN./MIN. |
| X-AXIS | 1181 IN.MIN. |
| Z-AXIS | 2362 IN./MIN. |
| Y-AXIS POSITION ACCURACY | 0.0004 IN. |
| X-AXIS POSITION ACCURACY | 0.002 IN. |
| R-AXIS POSITION ACCURACY | 0.004 IN. |
| WORKING RANGE, Y-AXIS STROKE | 8" |
| TRAVEL PATH X-AXIS | 24" |
| TRAVEL PATH R-AXIS | 6" |
| OVERALL DIMENSIONS APPROX. | 102"L X 65"D X 93"H |
| APPROX. OVERALL WEIGHT | 12,456 LBS. |
Equipped With
2D DELEM CNC CONTROL
4-AXIS BACK GAUGE ( X, R, Z1, Z2 )
TRUMPF LASER SAFETY LIGHTS
WILA NEW STANDARD HYDRAULIC UPPER CLAMPING
BOTTOM HYDRAULIC CLAMPING
MANUAL CROWNING SYSTEM

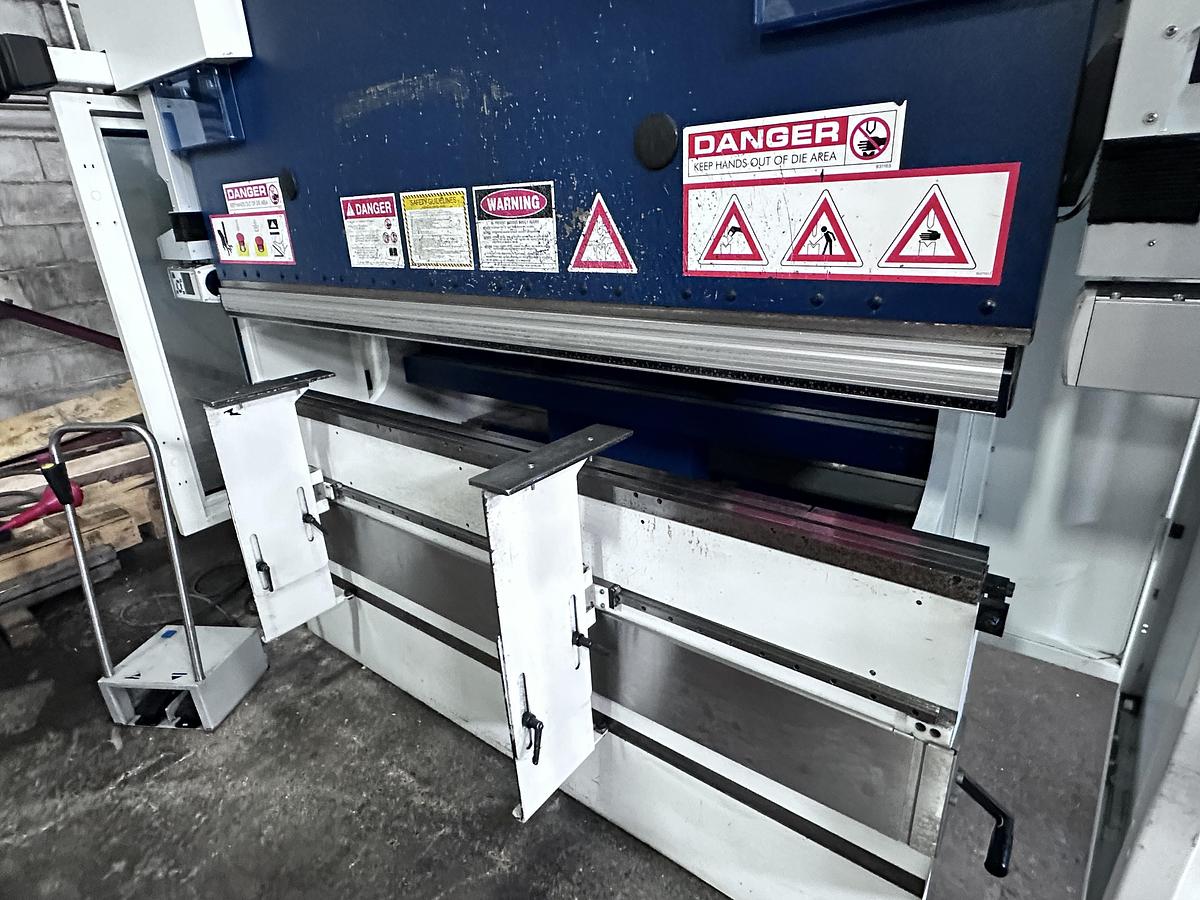

2 FRONT LINEAR SUPPORTS
MULTIFUNCTION FOOT SWITCH
The 2013 TRUMPF TRUBEND 3066 is a used CNC hydraulic press brake with a bending capacity of 73 tons and an overall bending length of 82 inches. It features a 2D DELEM CNC control, enhancing precision and ease of use. The machine is equipped with a 4-axis back gauge (X, R, Z1, Z2) and TRUMPF laser safety lights for improved operation and safety. Incorporating WILA new standard hydraulic upper clamping and bottom hydraulic clamping, the machine ensures efficient and secure workpiece handling. A manual crowning system aids in maintaining consistent bending angles, while two front linear supports provide additional material stability. The multifunction foot switch offers convenient control during operation. With an impressive Y-axis rapid speed of 472 inches per minute and working speed of 35 inches per minute, this press brake ensures high productivity. The machine boasts precise position accuracy across axes: Y-axis at 0.0004 inches, X-axis at 0.002 inches, and R-axis at 0.004 inches. Measuring approximately 102 inches in length, 65 inches in depth, and 93 inches in height, it weighs around 12,456 lbs. This press brake offers robust performance and reliability for demanding metalworking applications.
