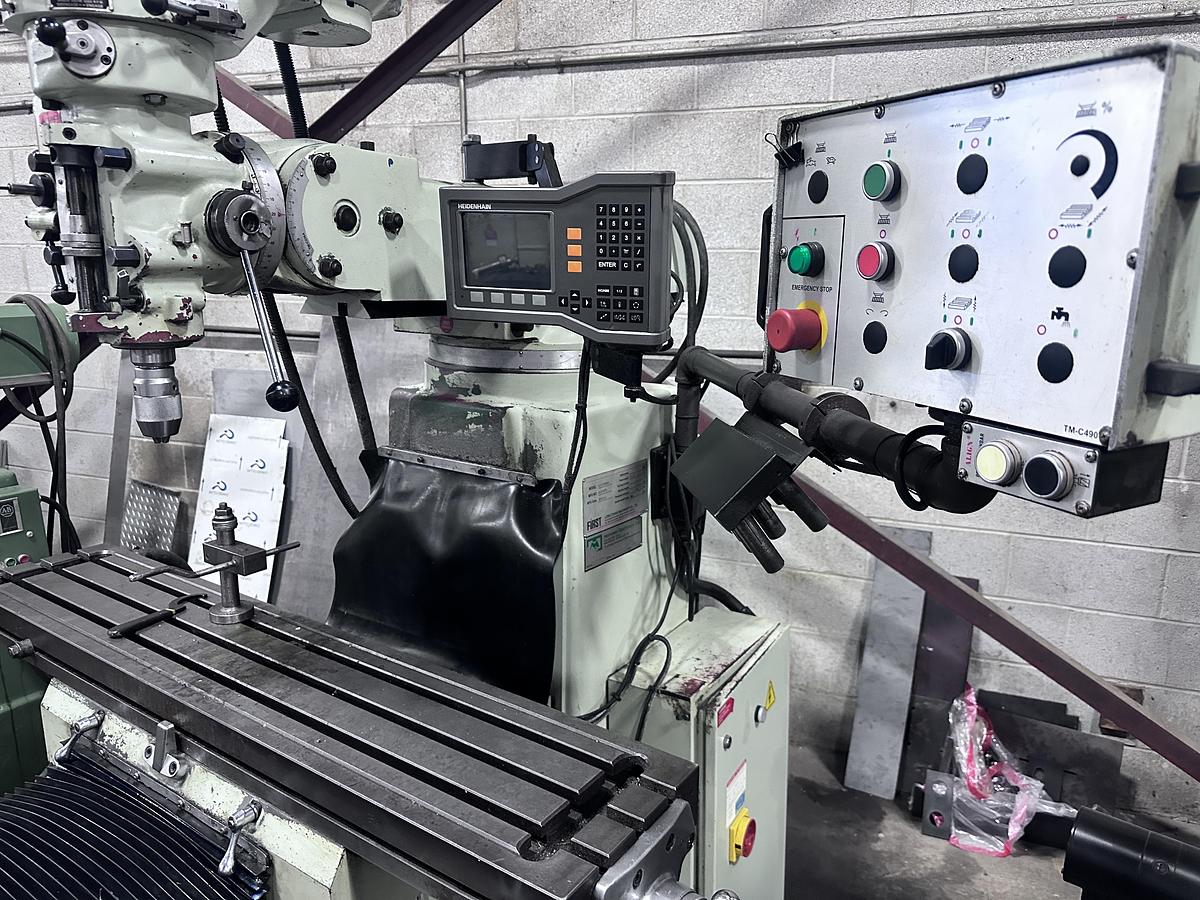

10" X 50" FIRST, LC-185VS, VERTICAL MILLING MACHINE - 2012
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-185VS |
| Year | 2012 |
| Stock Number | 4806 |
| WORKING SURFACE | 10" X 50" |
| LONGITUDINAL TRAVEL | 31" |
| CROSS TRAVEL | 16.3" |
| VERTICAL TRAVEL (KNEE) | 15.3" |
| VERTICAL FEEDS (KNEE) | RAPID |
| SPINDLE SPEEDS | 4500 RPM, VARIABLE |
| SPINDLE TAPER | R8 |
| QUILL TRAVEL | 5" |
| OVERARM TRAVEL | 18.5" |
| SPINDLE MOTOR | 3 HP |
| VERTICAL FEEDS | 1/2 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. WEIGHT | 2,750 LBS. |
Equipped With

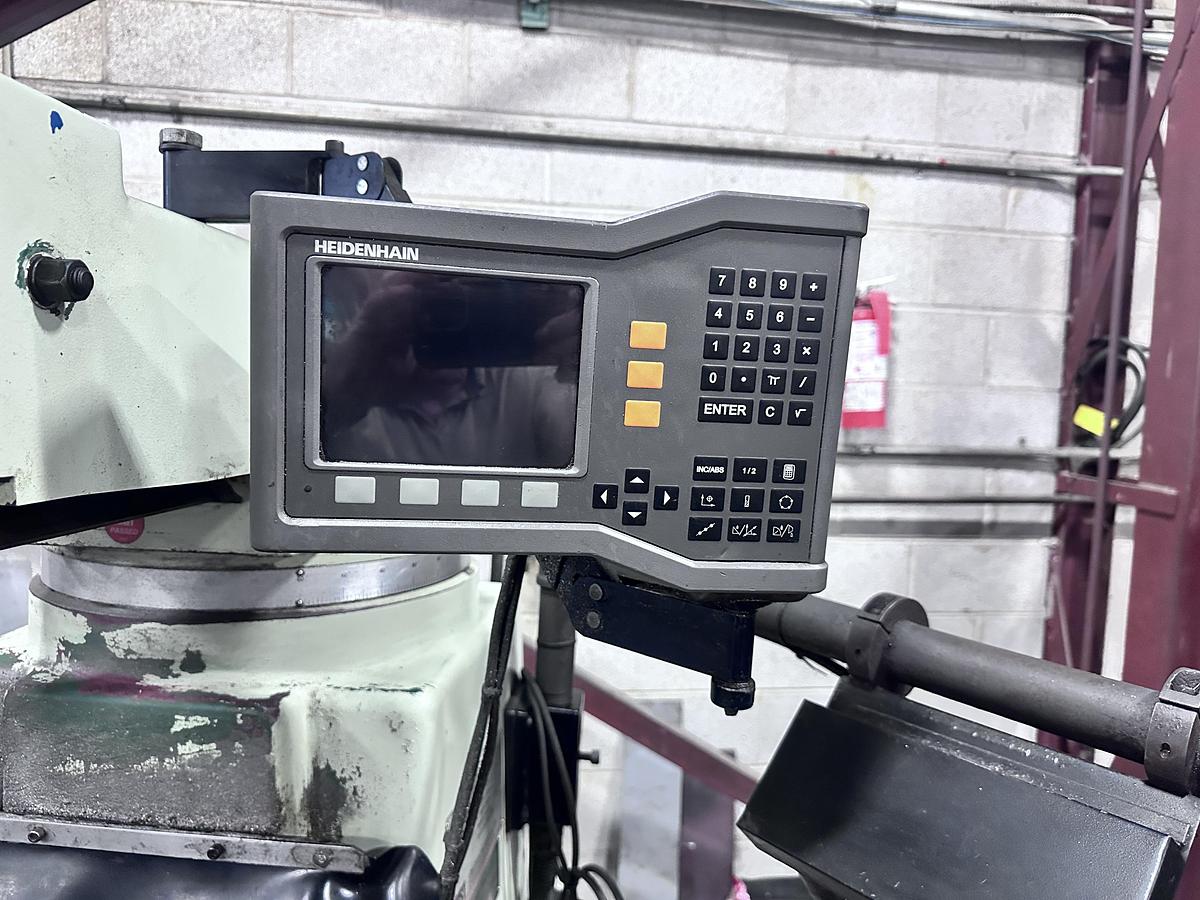

HEIDENHAIN 2-AXIS DIGITAL READOUT

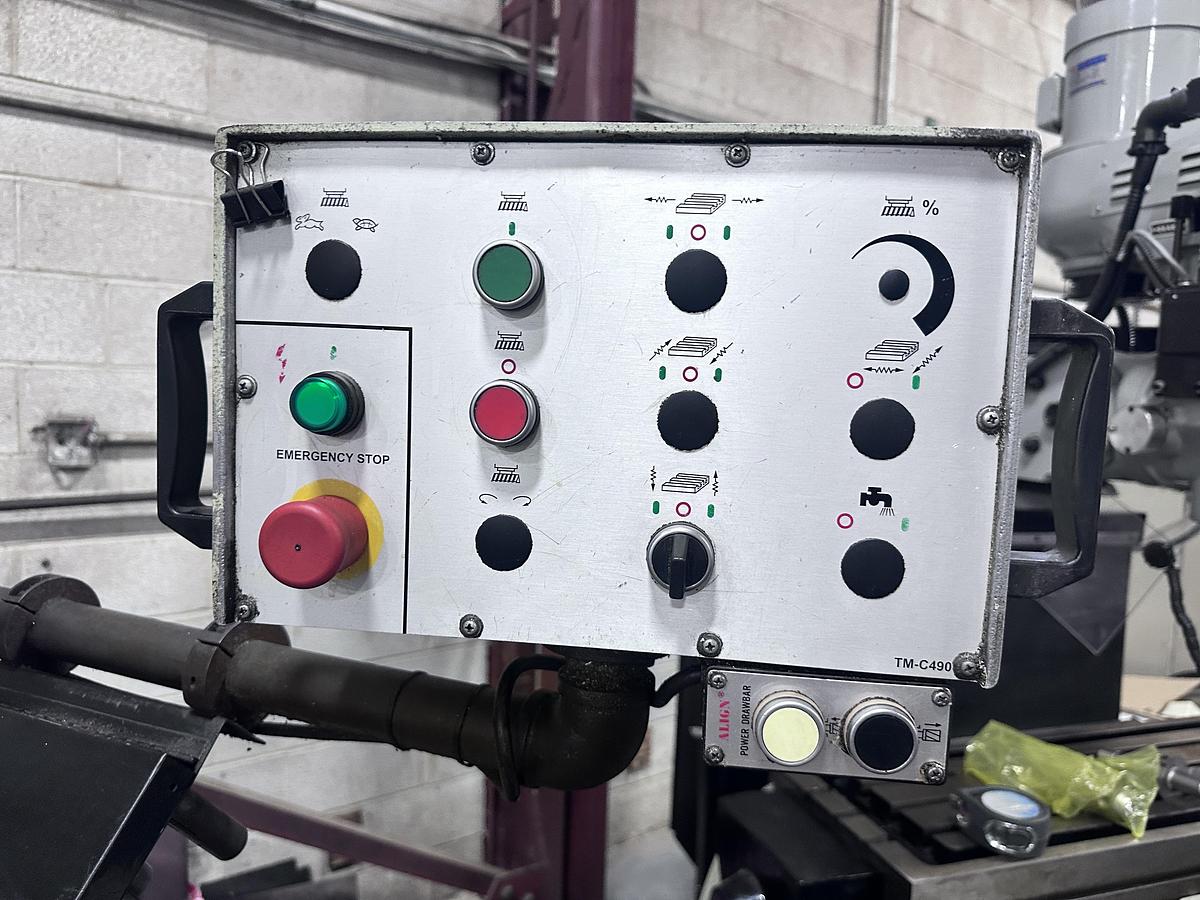

PENDANT CONTROL POWER DRAWBAR
BUILT IN POWER RISE & FALL
ONE SHOT LUBRICATION
ASSORTED COLLETS
