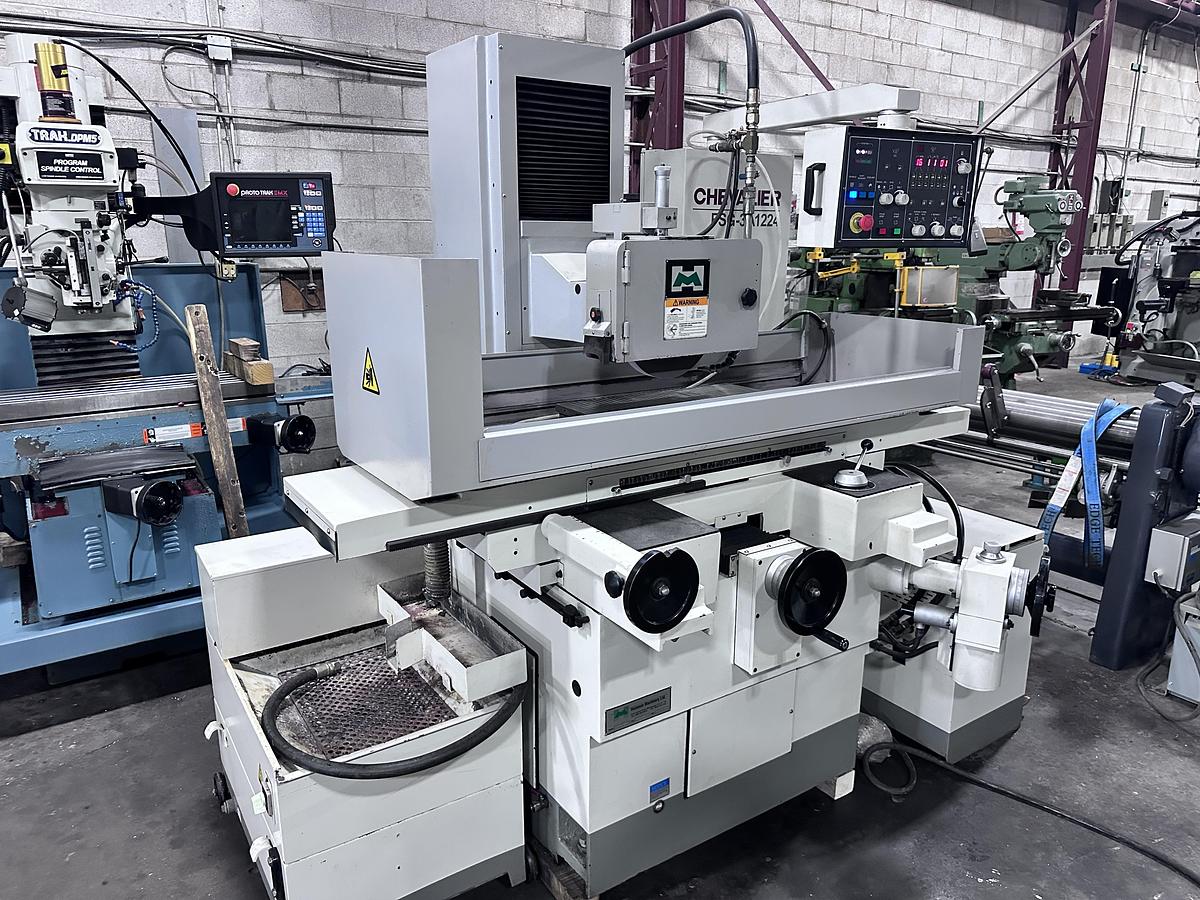

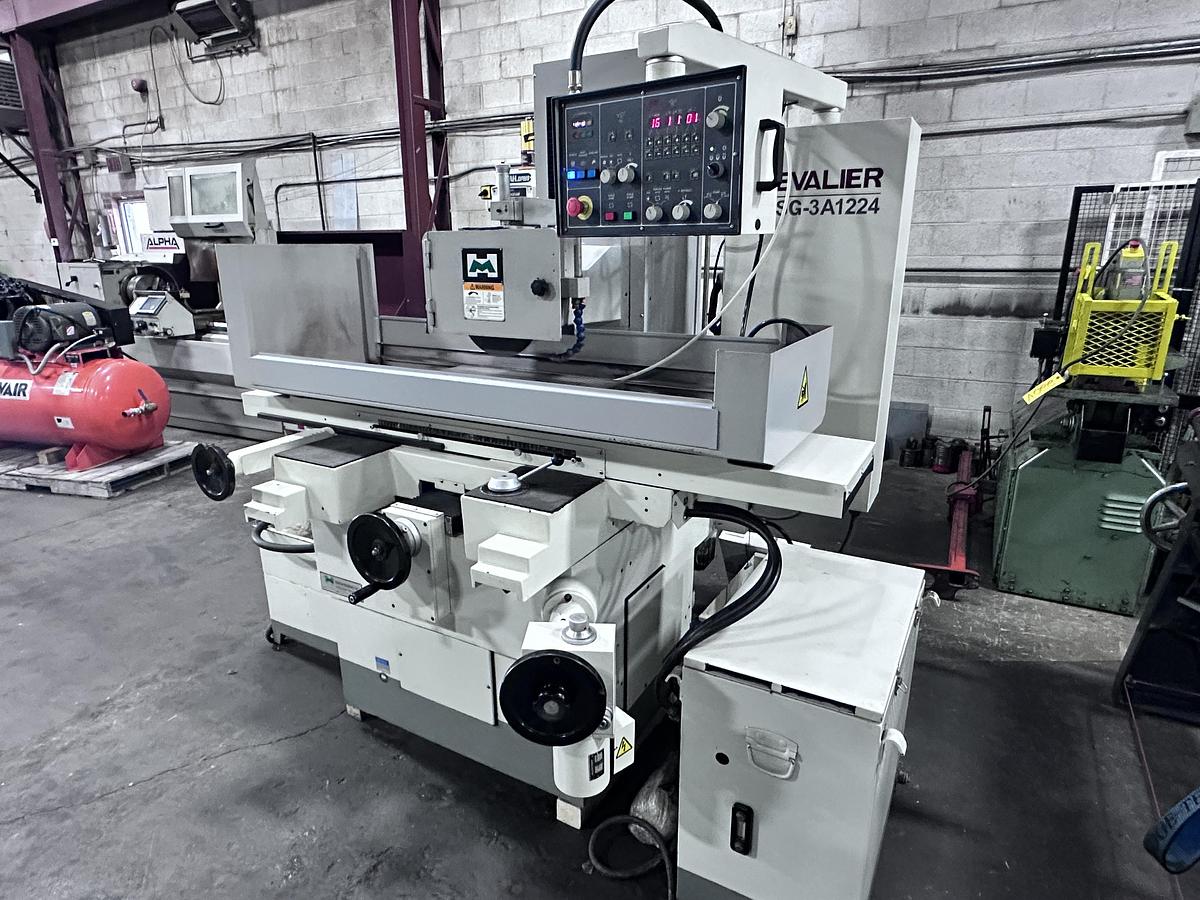

12" X 24", CHEVALIER, FSG-3A1224, 2017, FULLY AUTOMATIC HYDRAULIC SURFACE GRINDER
Sold
Specifications
| Manufacturer | CHEVALIER |
| Model | FSG-3A1224 |
| Year | 2017 |
| Stock Number | 4802 |
| Table working surface | 11-3/4" X 25-3/8" |
| Max. chuck size | 12 X 24" |
| Max. table movement (manual) | 27.5"/25-5/8" AUTO |
| Max. distane wheel to table | 19-3/4" |
| Max. wheel size | 14" X 2" X 5" BORE |
| Wheel speed | 1,750 RPM |
| Auto longitudinal feed rate | 16 - 82 FPM VARIABLE |
| Rapid wheelhead feed rate | 8 IPM |
| Auto wheelhead downfeed increments | .0005" - .002" |
| Hand wheelhead downfeed increments | 0.05" PER REVOLUTION |
| Spindle drive | 5 HP |
Equipped With
ELECTRO-MAGNETIC CHUCK INCREMENTAL DOWNFEED AUTOMATIC LONGITUDINAL & CROSS FEEDS COOLANT SYSTEM WITH PAPER FILTRATION HYDRAULIC SYSTEM
