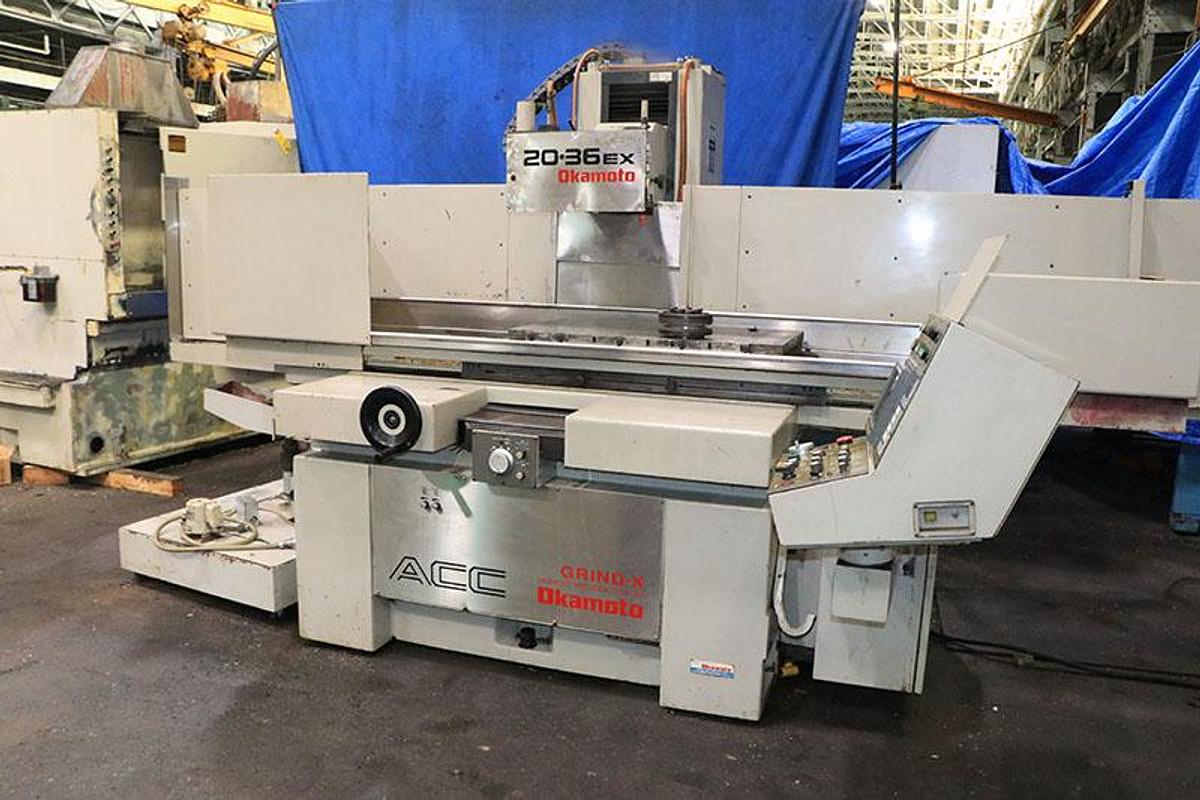

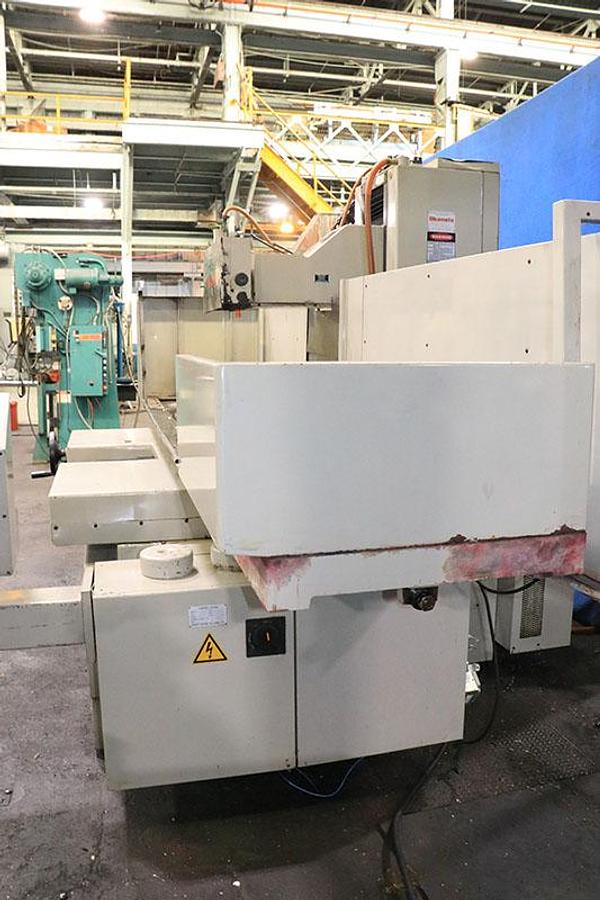

OKAMOTO ACC-20.36EX , 2001, FANUC MDI CONTROL HYDRAULIC SURFACE GRINDER

MODEL: ACC-2036EX      S/N: 77019       NEW: 2001

NOMINAL GRINDING CAPACITY .................. 20" x 36"

MAXIMUM HEIGHT UNDER 12" WHEEL ............. 21.5"

TABLE SPEED, INFINITELY VARIABLE ........... 3' TO 82' FPM

LONGITUDINAL TABLE, HANDFEED PER REV. ...... 1.85"

MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 41.3"

AUTO CROSS FEED INCREMENT .................. 0.02" TO 0.80"

AUTO CONINOUS CROSSFEED .................... 0.010 TO 40' FPM

CROSSFEED, PER REV. (X1, X5, X20) .......... 0.01", .05" & .2"

  GRAD. OF HANDWHEEL (x1, x5, x20) ......... 0.0001", 0.0005"& 0.002"

MAX. CROSSFEED, MANUAL ..................... 21.3"

AUTO INCREMENTAL DOWNFEED (10) ............. 0.00005" TO 0.0015"

SPARKOUT PASSES ............................ 0 TO 5

POWER RAPID WHEEL POSITIONING RATE ......... 40" IPM

MANUAL PULSE FEED (x.1, x1, x10) ........... 0.00001", 0.0001" & 0.001"

SPINDLE MOTOR .............................. 5 H.P.

WHEEL SIZE ................................. 12" X 1.5" X 5"

WHEEL SPEED ................................ 6,500 SFPM

GRINDING WHEEL SPEED ....................... 1,800 RPM

APPROX. DIMS.  ............................. 130" x 88"D x 81"H

APPROX. MACHINE WEIGHT ..................... 10,580 LBS.

MACHINE FEATURES:

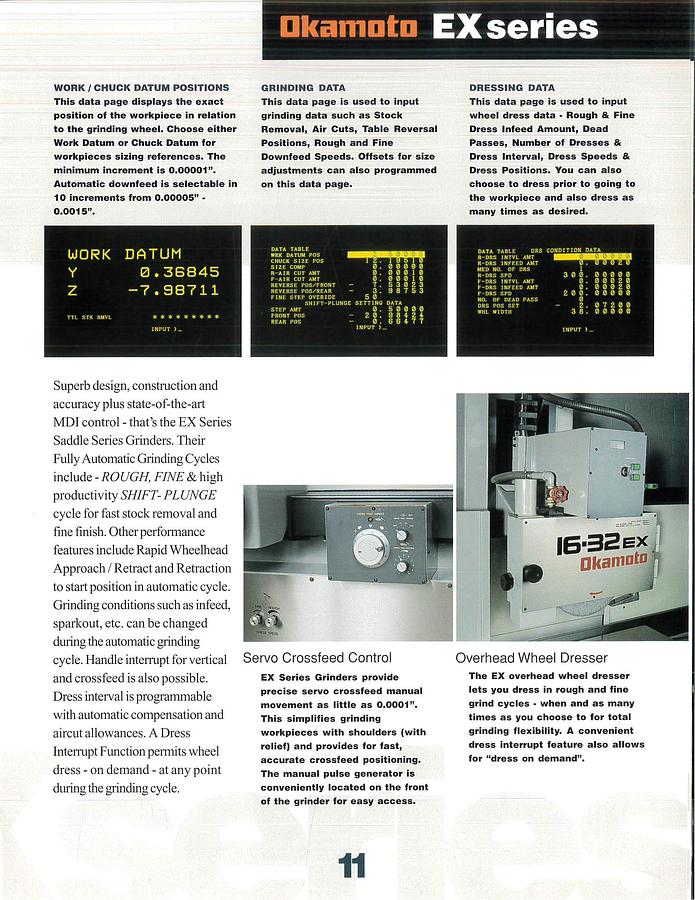

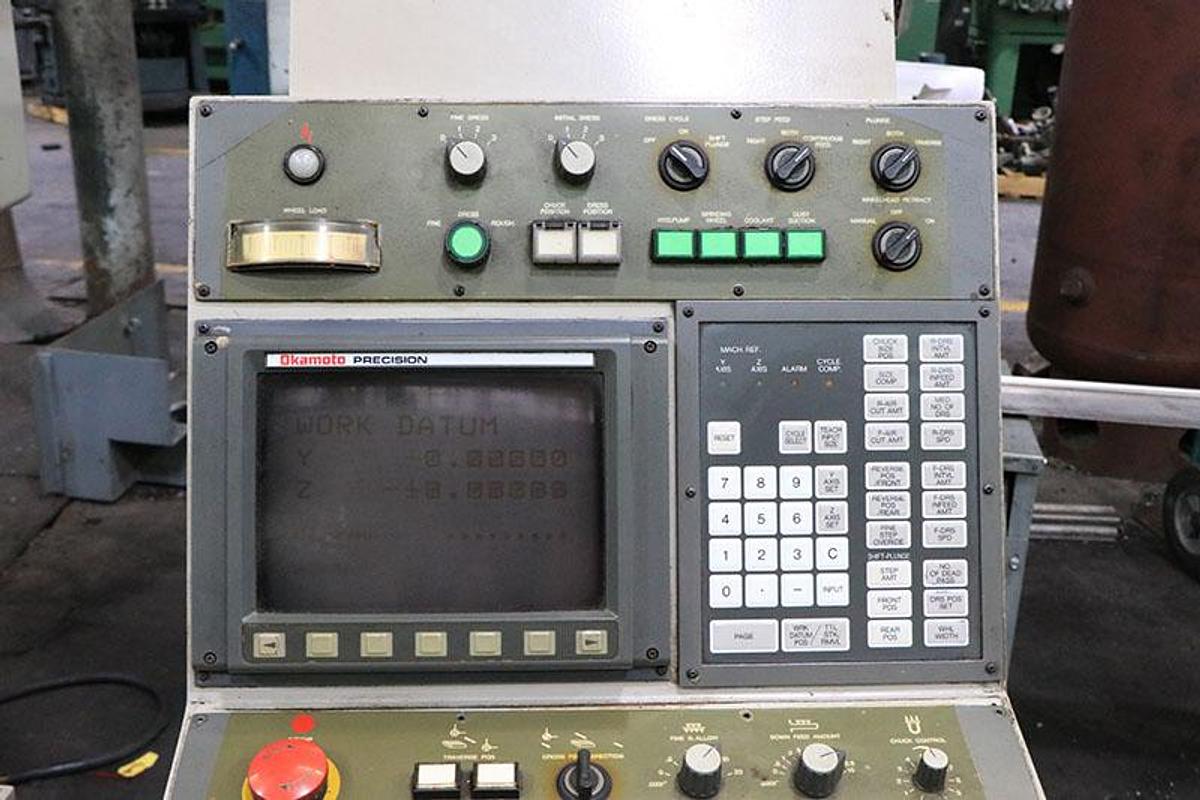

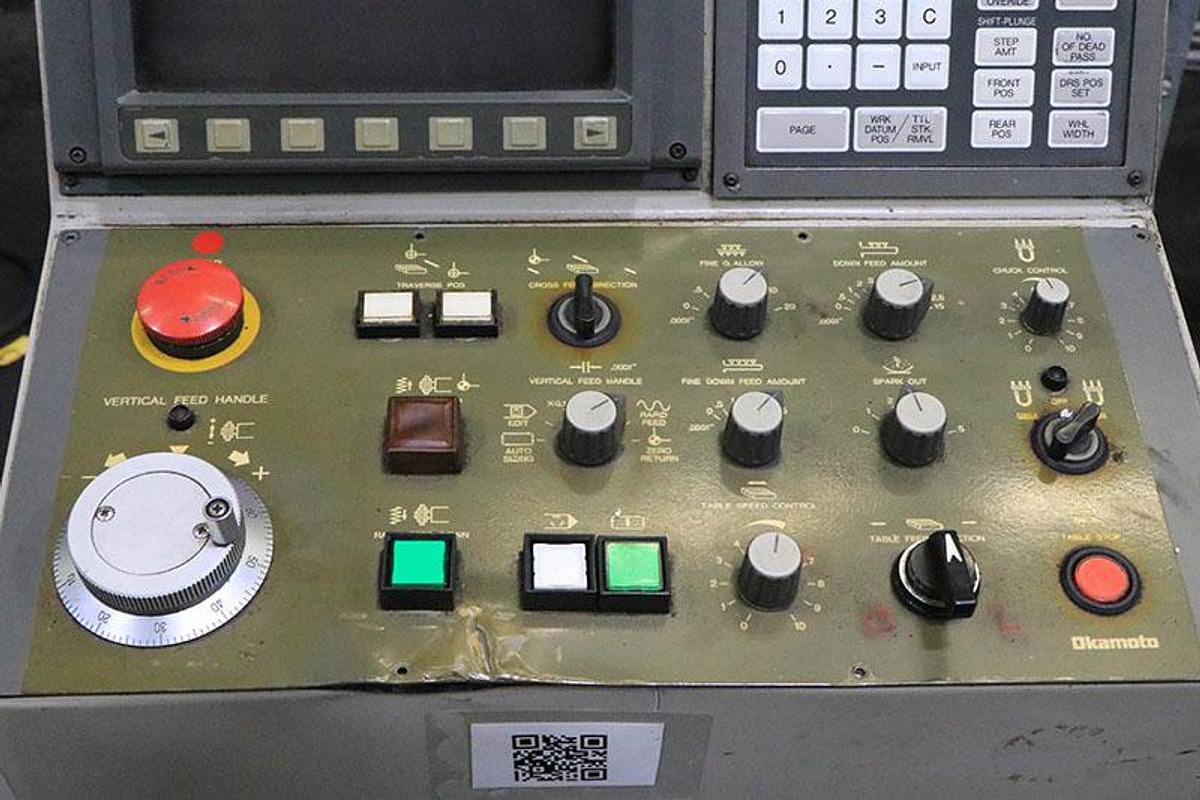

"FANUC" "EX SERIES" MDI/CNC CONTROL W/9" CRT DISPLAY

-2-AXIS PROGRAMMABLE, (Y/Z AXES)

-SIMPLE, QUICK TEACH SET-UP OF CYCLE FILLS IN

  MOST REQUIRED DATA .....  SIMPLE TO LEARN & TO USE

-CAPACITY TO GRIND 3 SURFACES IN A SINGLE SET-UP

-SERVO DRIVEN BALLSCREWS ON BOTH DOWNFEED & CROSSFEED

  FOR ULTIMATE ACCURACY

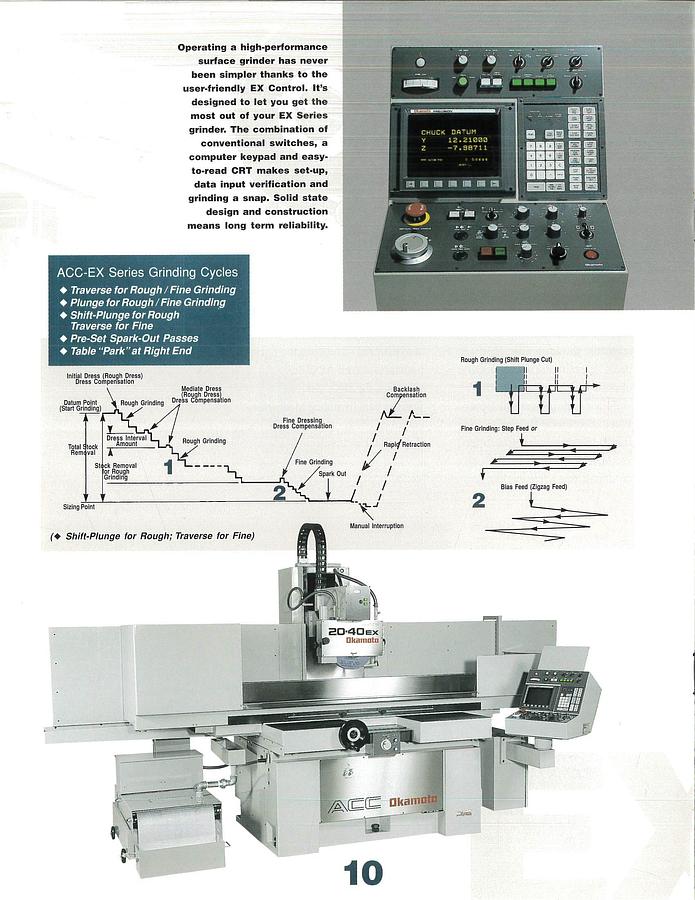

-FULLY AUTOMATIC GRIND CYCLE WITH ROUGH, FINE, SHIFT-PLUNGE,

  & RAPID WHEELHEAD RETRACTION

-FULLY-AUTO OVER-THE-WHEEL DRESSER IS PROGRAMMABLE WITH

  AUTO DRESS & WHEEL WEAR COMPENSATION, AND AIR-CUT ALLOWANCE

-INTERRUPT CYCLE AT ANY TIME TO DRESS, THEN RAPID BACK TO

  WORK AFTER COMPENSATING

EQUIPPED WITH:

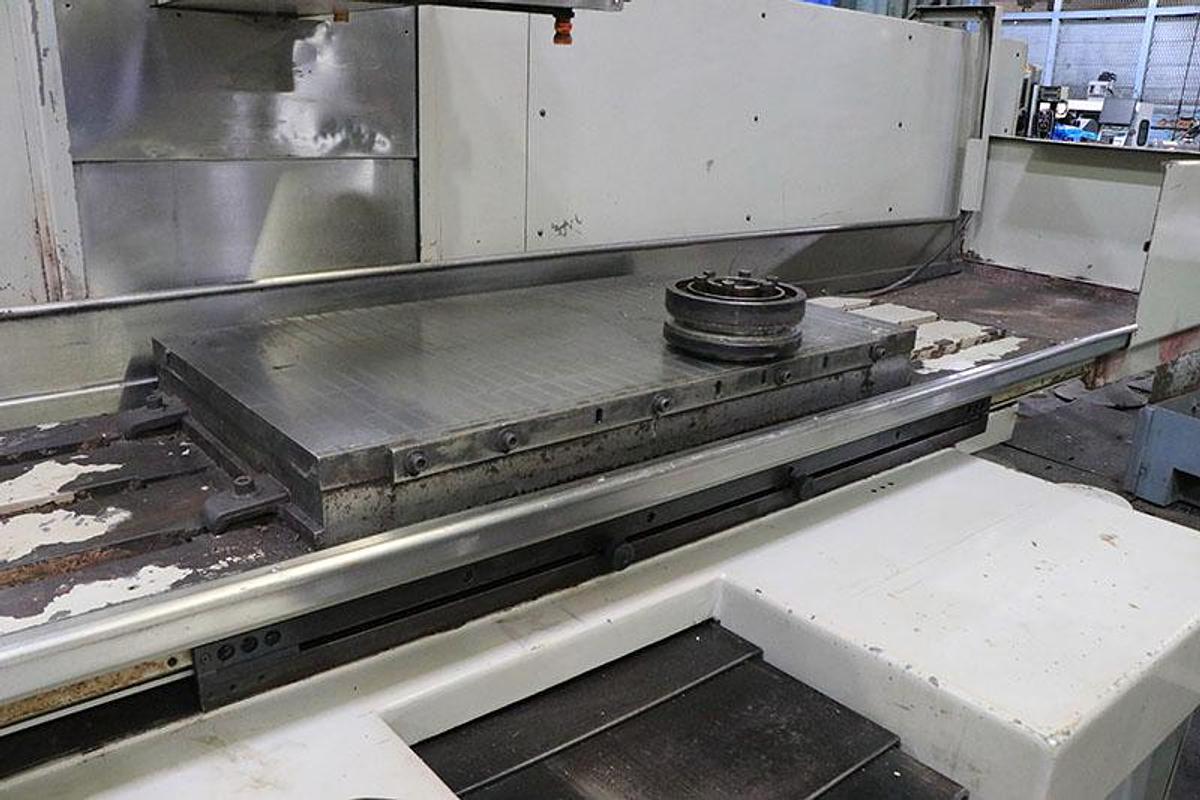

20" X 36" ELECTRO-MAGNETIC CHUCK, INTERLOC PATTERN

VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

COOLANT SYSTEM W/MAGNETIC SEPERATOR

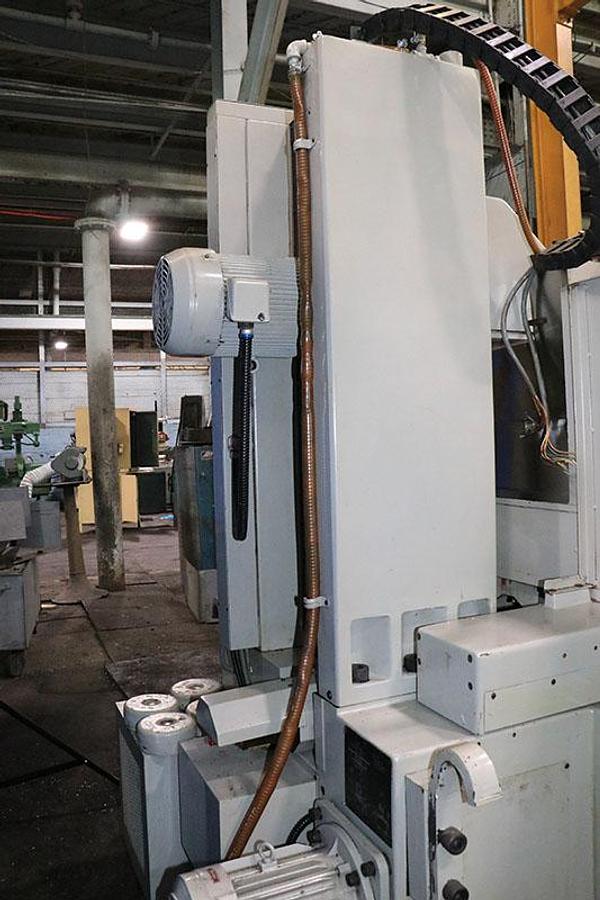

5 H.P. SPINDLE MOTOR, STANDARD

AUTOMATIC LUBRICATION SYSTEM

WAY PROTECTION DESIGN

MACHINE IS PRESENLY WIRED FOR 3/60/208 VOLTS
