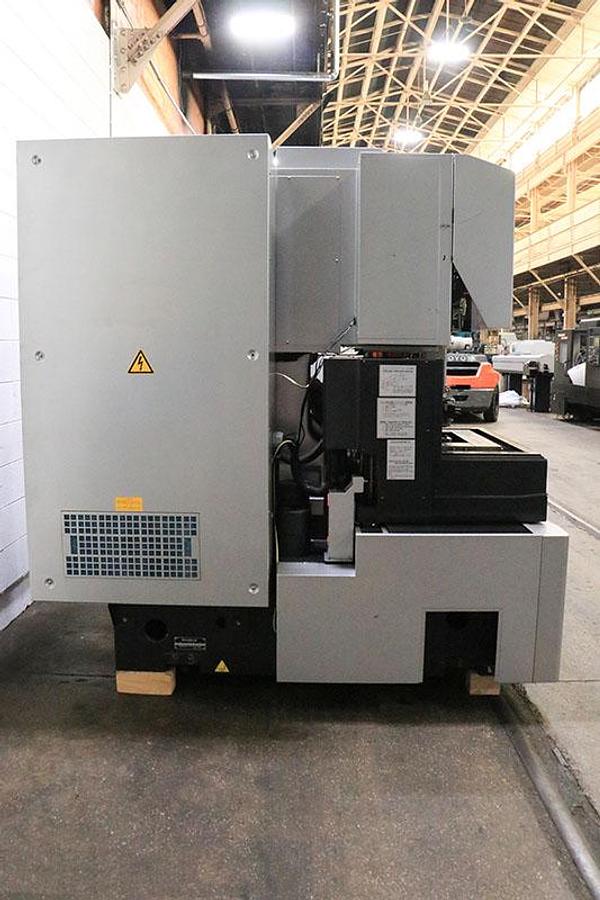

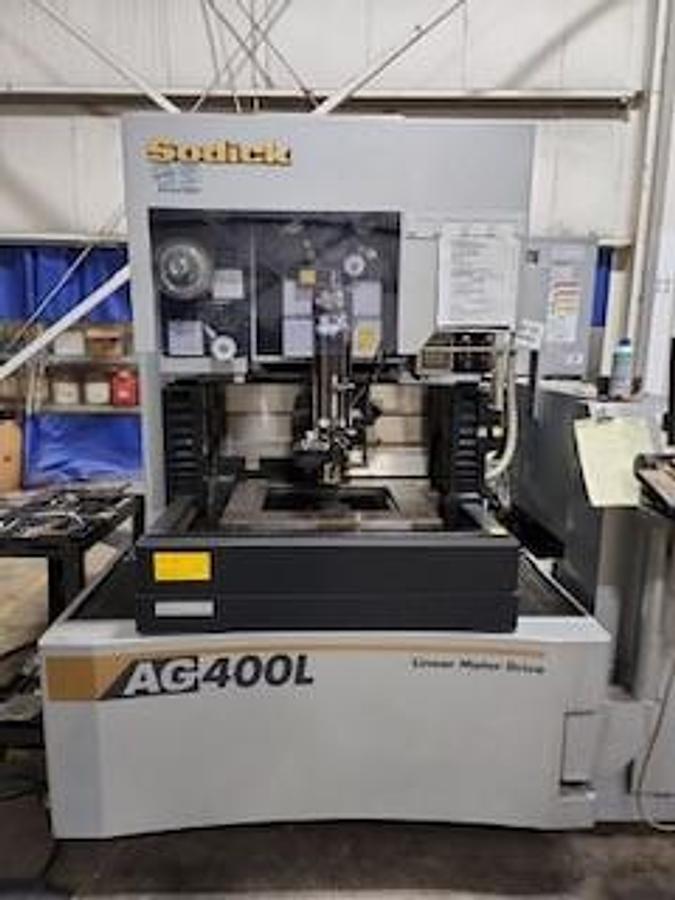

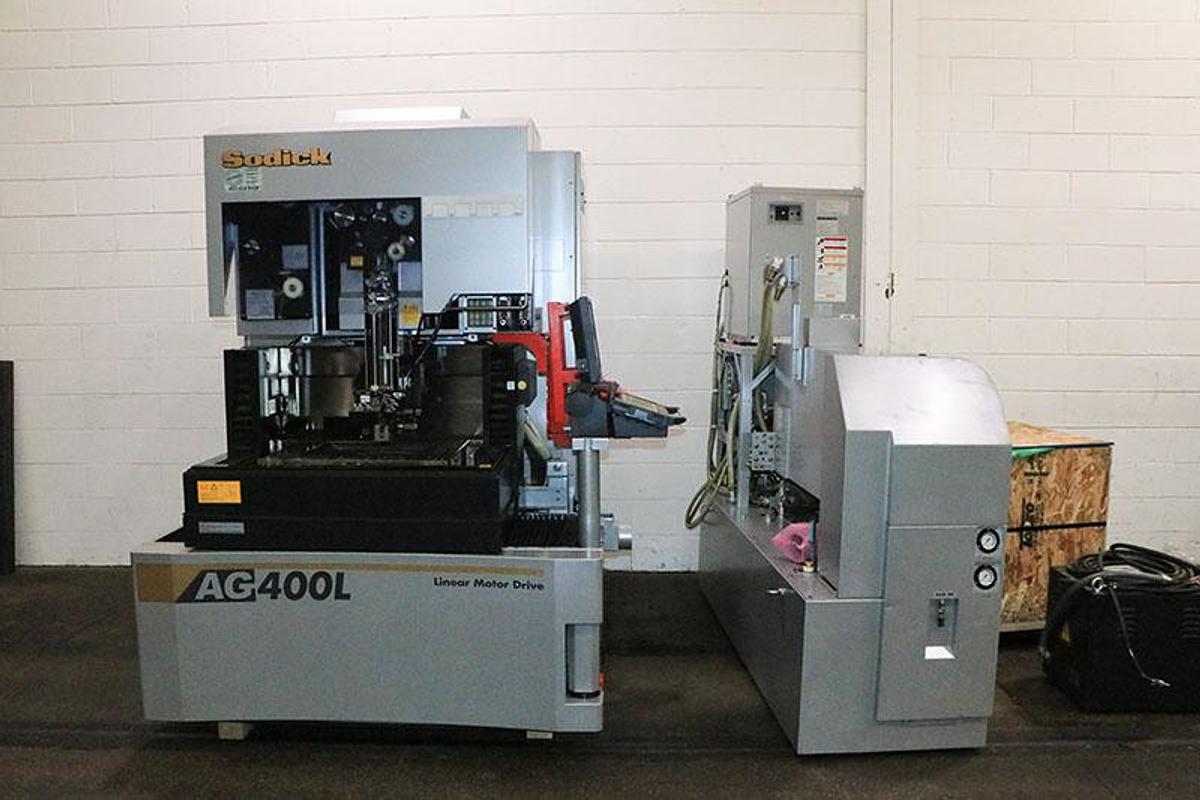

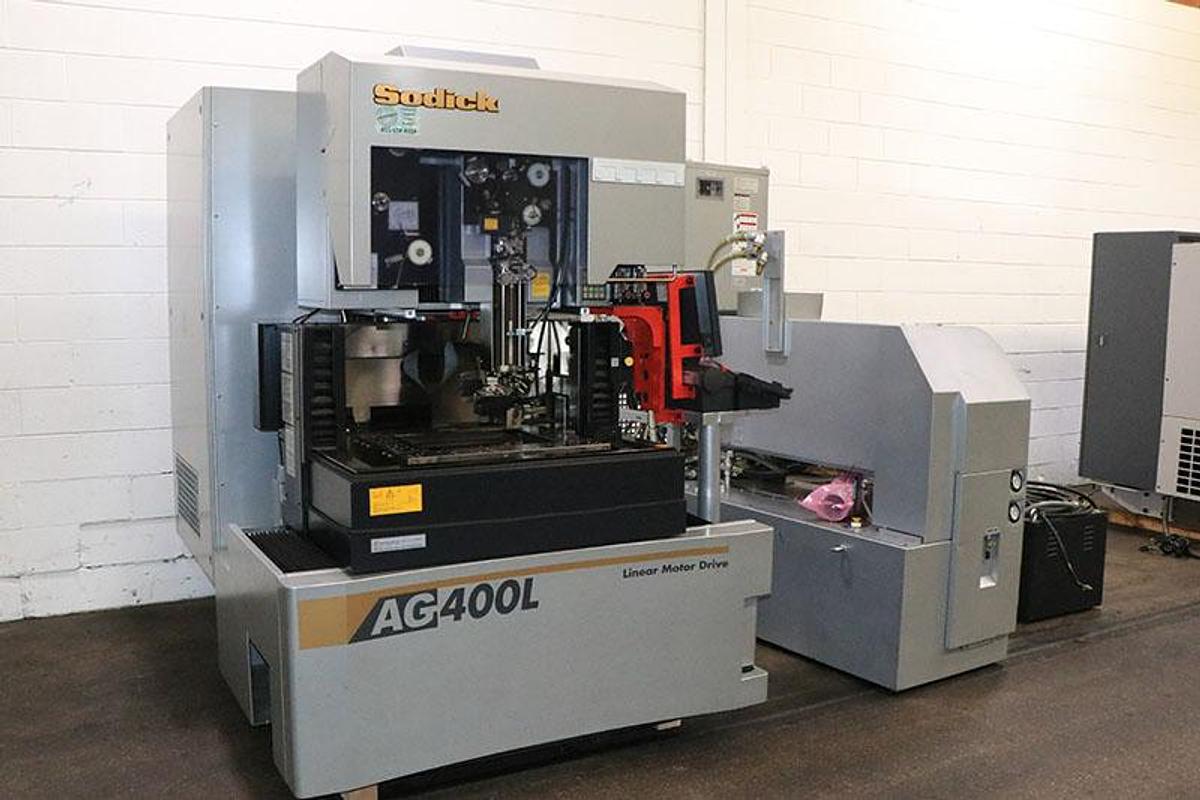

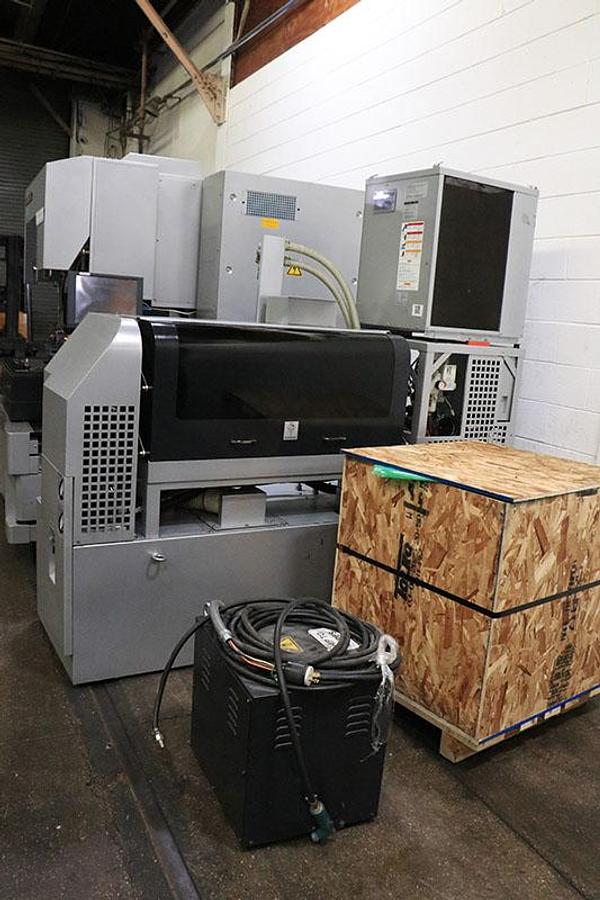

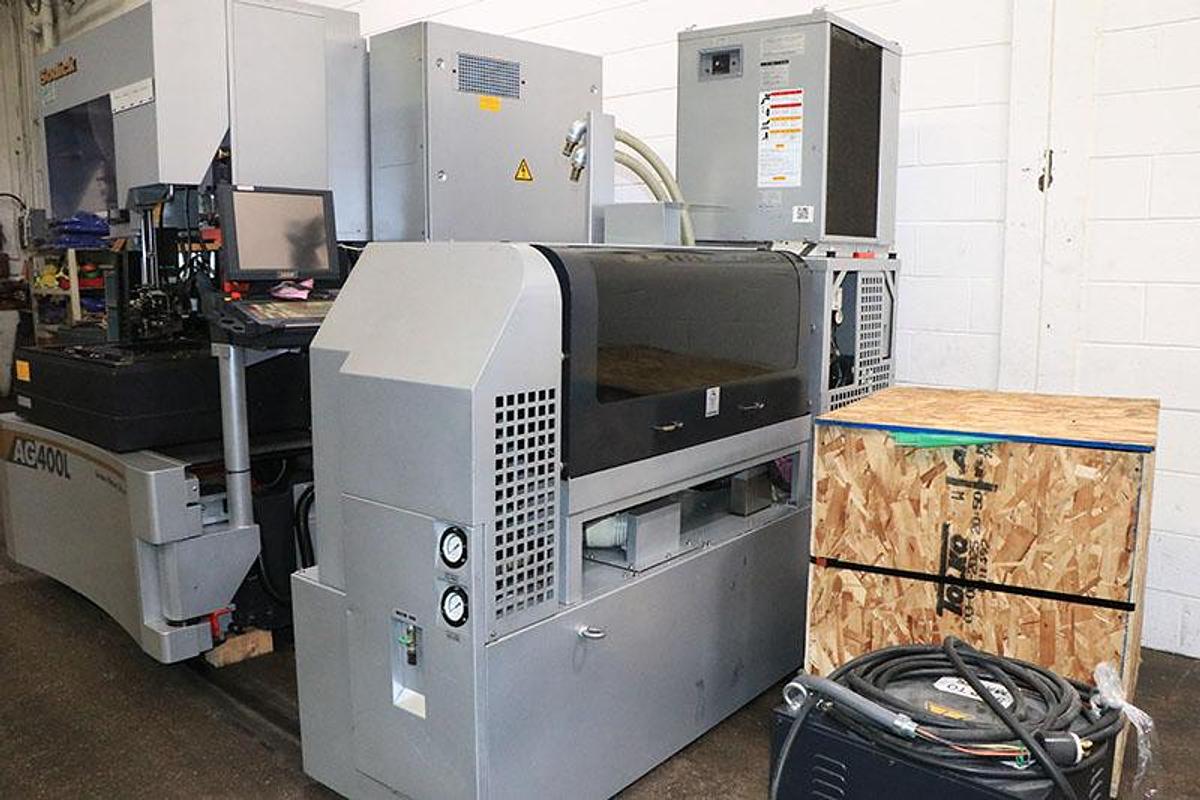

SODICK MODEL AG400L WIRE EDM MACHINE -2012

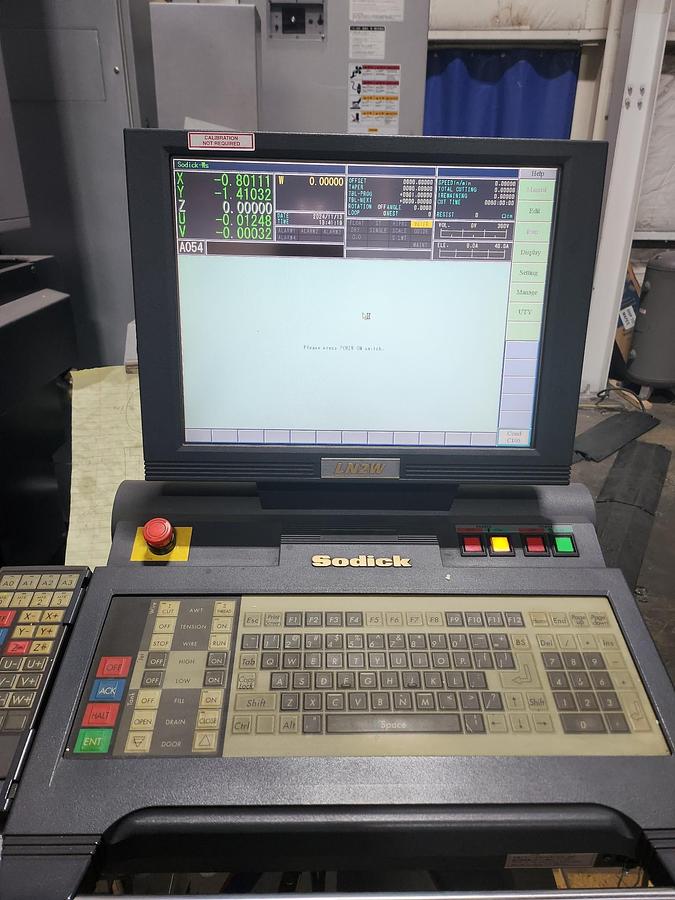

LN2W/LPW400 CNC Control & Power Supply

Program Input Method by Keyboard, USB & Ethernet

Linear Motor Design - No Ball Screws

Glass Scales

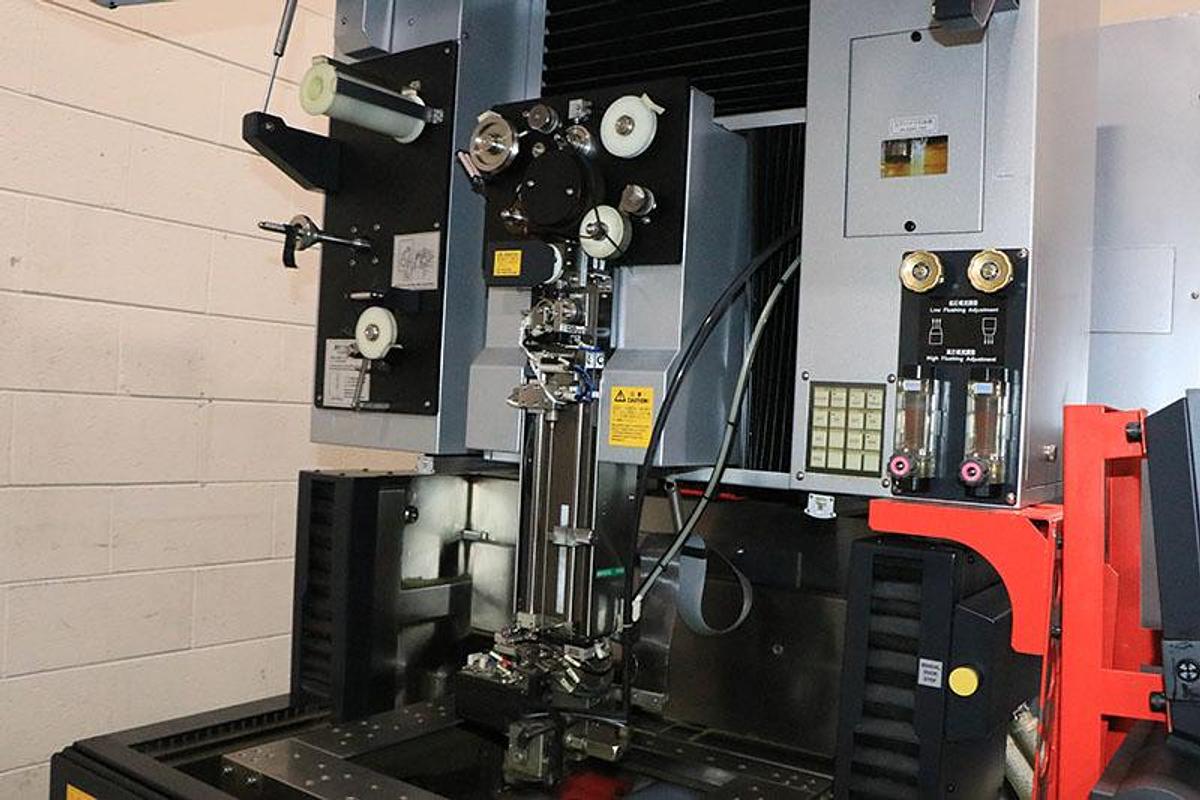

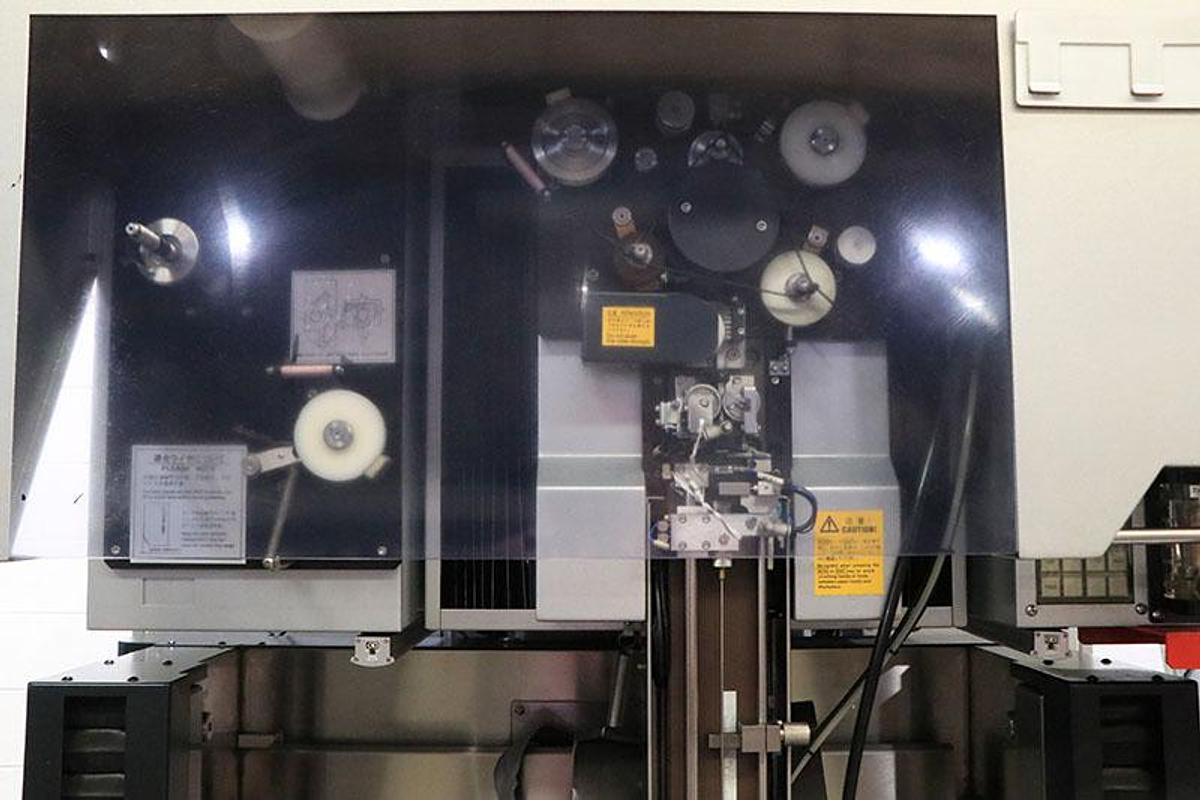

Fixed Jet Auto Wire Threader

– X Axis Travel – 15.75″

– Y Axis Travel – 11.81″

– Z Axis Travel – 9.87″

– U & V Travels - +/- 4.73"

– Max Workpiece: 24" x 18" x 9"

– Max Workplace Weight – 1,102 lbs.

Inside Tank Dimensions: 33.460" x 24.020"

– Wire Diameter: .002″~0.12″

–Wire Speed: 420mm/Second Max

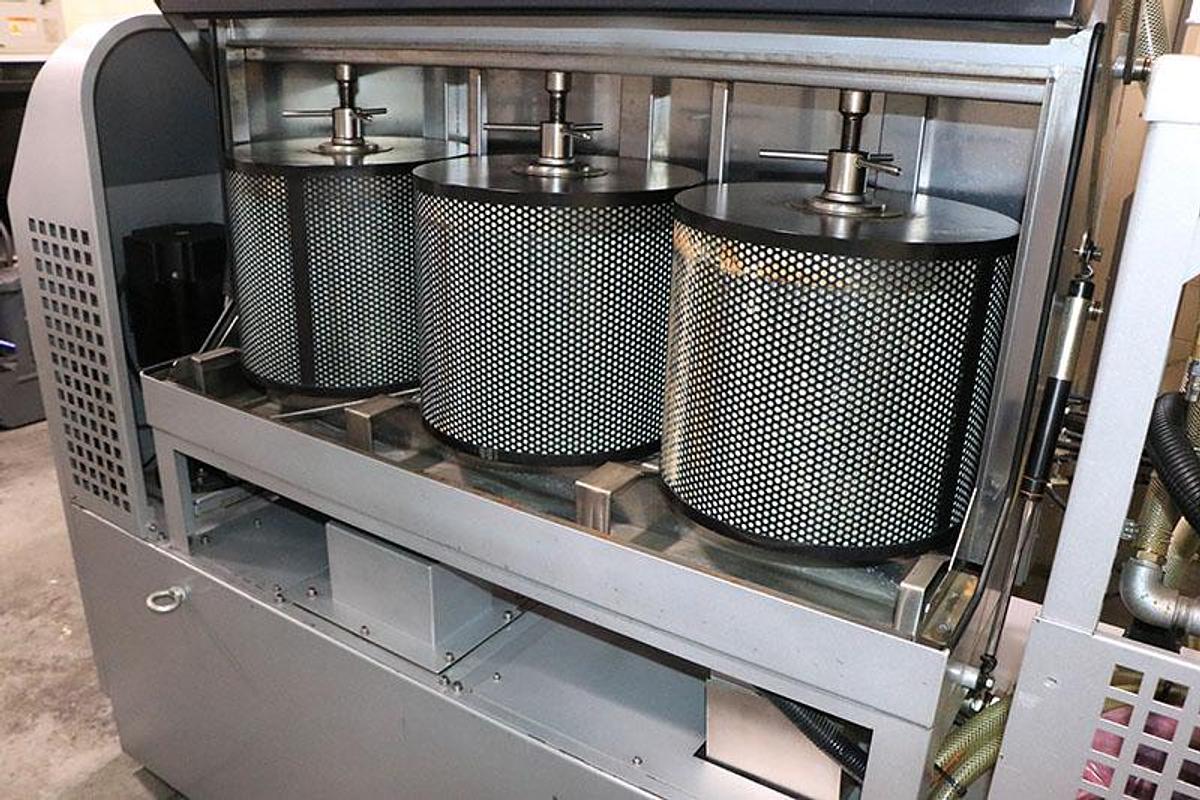

– Dielectric Fluid Capacity: 600 Liters

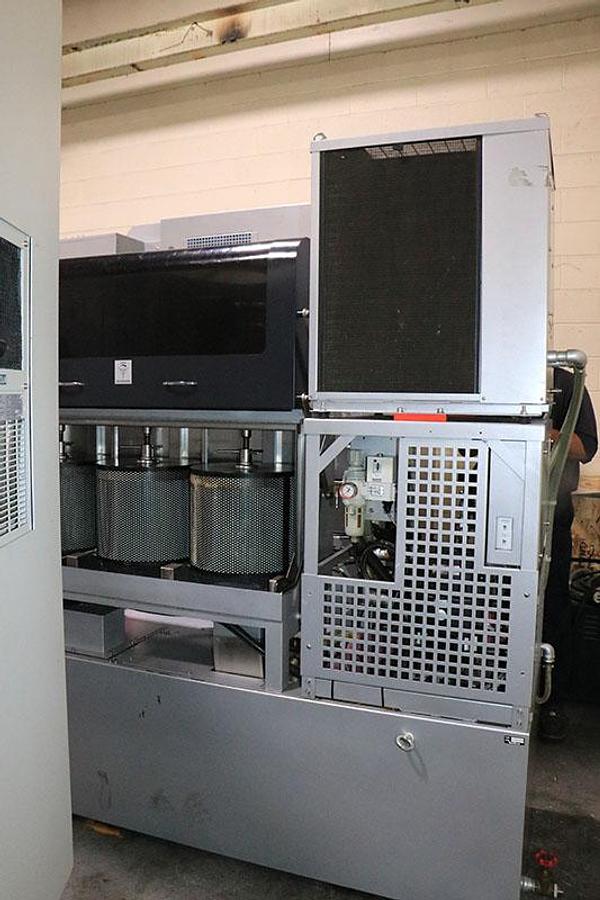

–Chiller: Yes

– Machine Tool Dims: 86.68″ x 87.99″ x 86.61″

– Approx. Weight: 8,377 Lbs.

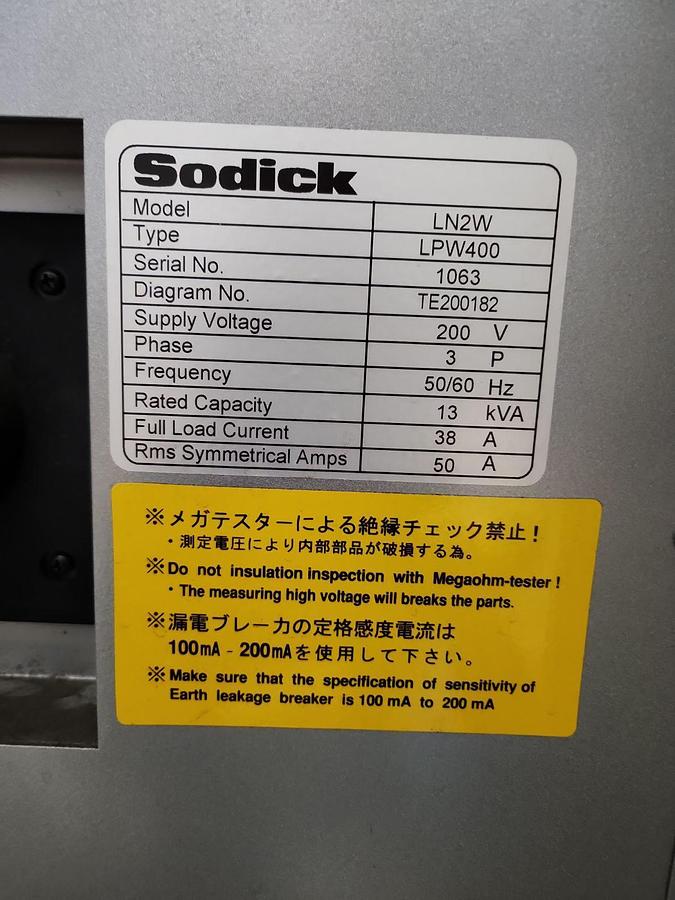

– 200 Volts/3/50-60 Hz

– 13 kva/ FLA 38 amps

– Separate Transformer Provided for

   Multiple Voltage Choices

This machine is in excellent condition and only has 4469 Cutting hours

** Deinstalled & Prepared for Shipment by Sodick **
