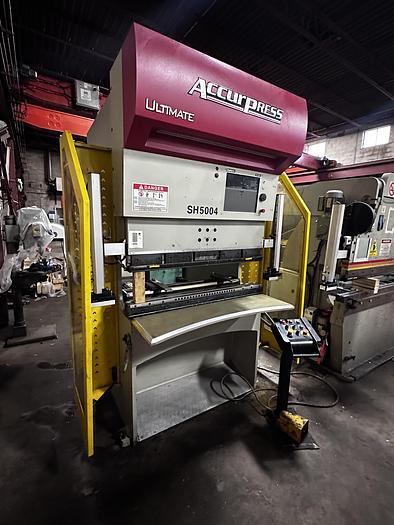

50 TON X 4' ACCURPRESS, CNC HYBRID CNC PRESS BRAKE
or
Call (905) 669-7507
Specifications
| Manufacturer | ACCURPRESS |
| Model | SH5004 |
| Year | 2015 |
| Stock Number | 4716 |
| BENDING FORCE | 50 TON |
| BEDNING LENGTH | 48" |
| DISTANCE BETWEEN FRAMES | 45.6" |
| RAM OPEN HEIGHT | 20.25" |
| THROAT DEPTH | 10" |
| FAST APPROACH | 470 IPM |
| SLOW BEND | 0 - 47 IPM |
| FAST RETURN | 470 IPM |
| X-AXIS TRAVELLING | 1180 IPM |
| R-AXIS TRAVELLING | 1180 IPM |
| STROKE, Y-AXIS | 5.9" |
| X-AXIS TRAVEL | 23.6" |
| R-AXIS TRAVEL | 10" |
| OIL TANK | 5.3 US GAL. |
| APPROX. WEIGHT | 7,400 LBS |
Equipped With
FRONT MOUNTED DELEM DA66T TOUCH SCREEN CONTROL
HYBRID " SH" USES SERVO CONTROLLED VARIABLE PUMPING ( SVP ) WHICH FEATURES A SERVO MOTOR DIRECT-DRIVING REXROTH PUMP TO PRODUCE 470 IPM RAM APPROACH & RETURN SPEEDS
WILA NORTH AMERICAN HYDRAULIC TOP CLAMPING
LAZERSAFE SAFETY LIGHTS

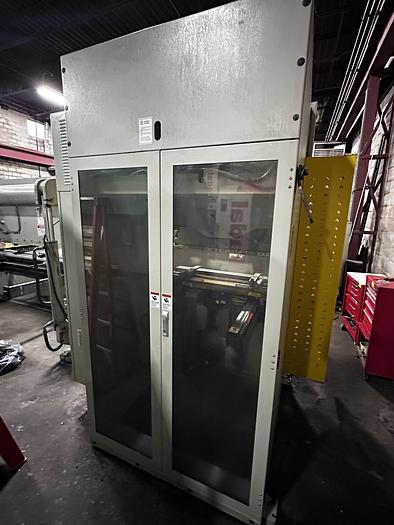

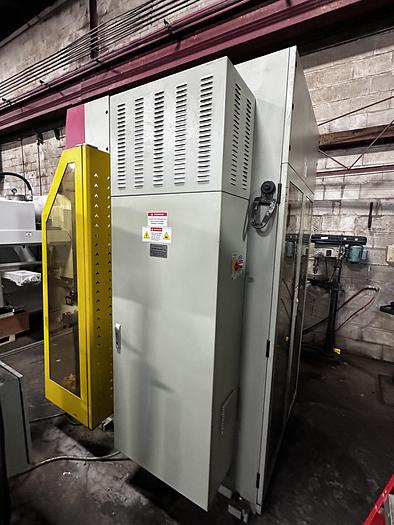

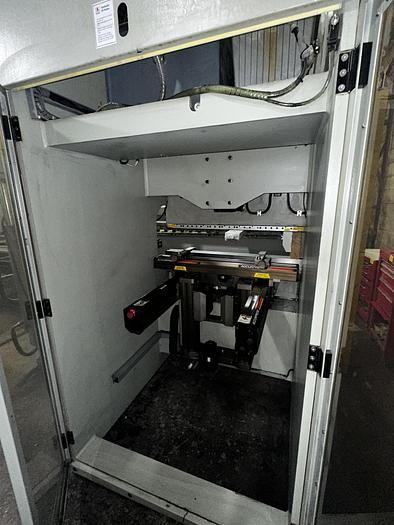

SIDE & REAR SAFETY GAURDING
WORKLIGHT

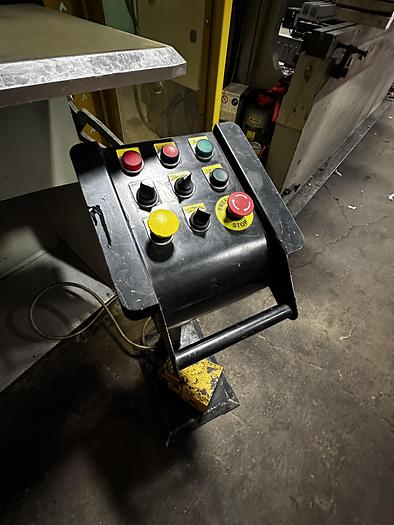

FOOT PEDESTAL CONTROL
