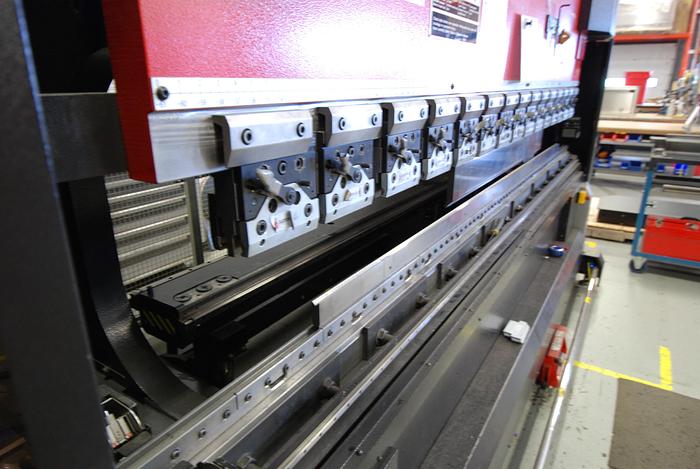

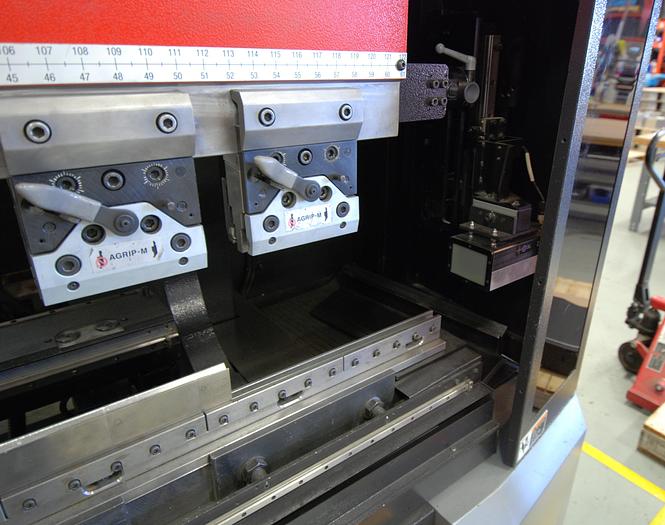

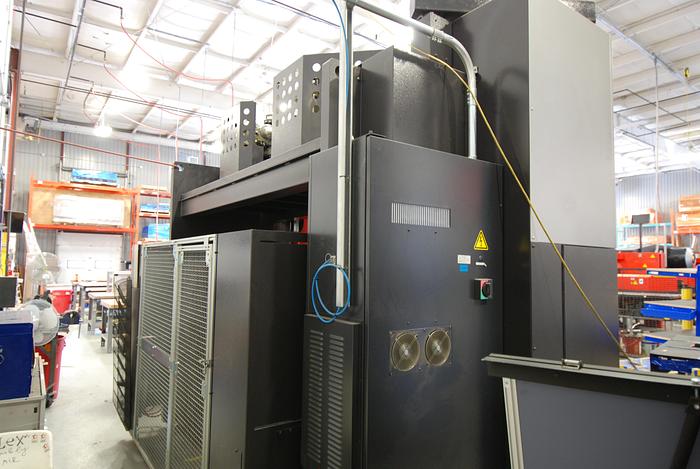

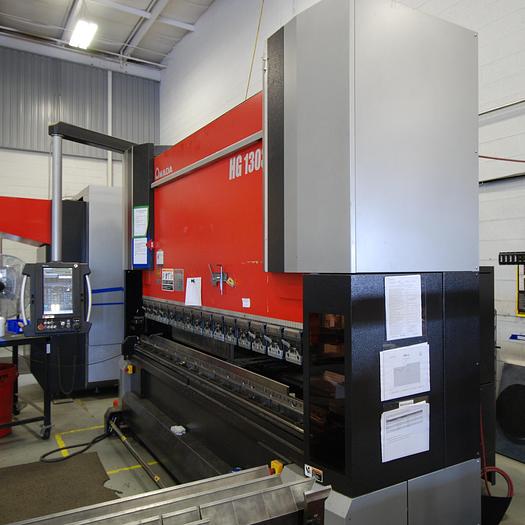

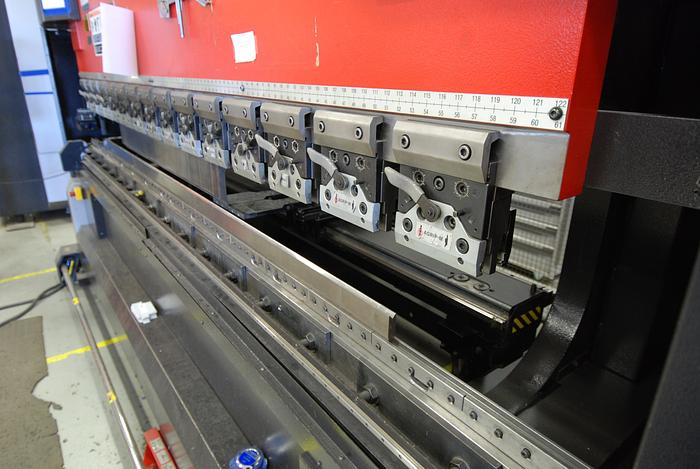

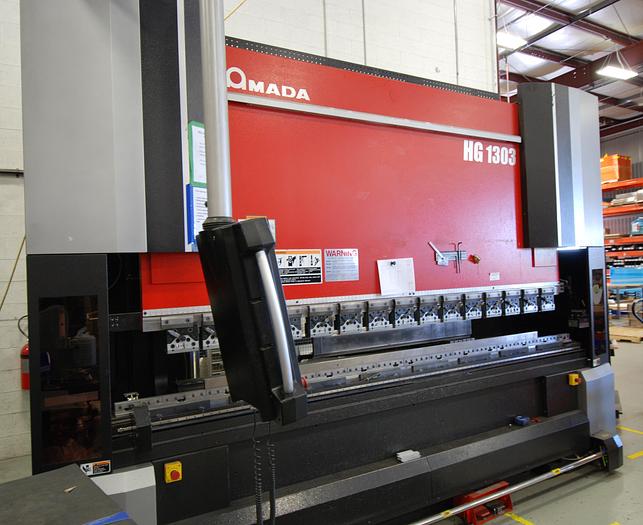

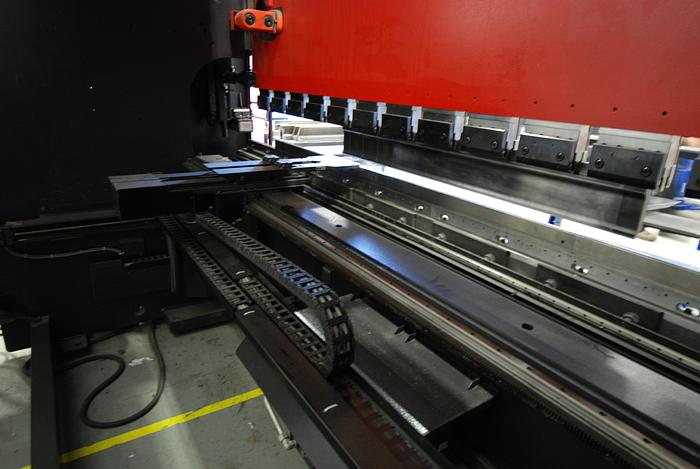

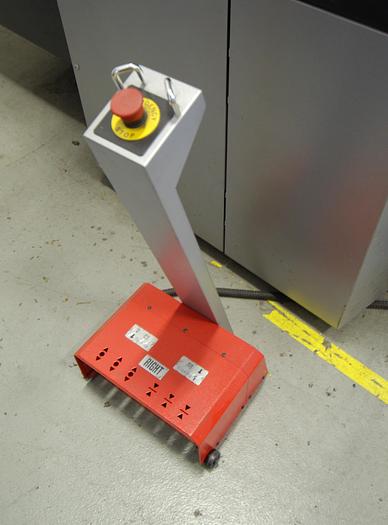

146 TON X 122.4", AMADA 2015, HG1303, SERVO/HYDRAULIC CNC PRESS BRAKE
Sold
Specifications
| Manufacturer | AMADA |
| Model | HG1303 |
| Year | 2015 |
| Stock Number | 4055 |
| INSTALLED | 2016 |
| MAX. BENDING LENGTH | 122.4" |
| DISTANCE BETWEEN FRAMES | 106.3" |
| STROKE LENGTH | 9.8" |
| OPEN HEIGHT ( NO HOLDERS ) | 20.5" |
| THROAT DEPTH | 17.7" |
| MACHINE STROKE | 9.8" |
| TABLE HEIGHT | 37.4" |
| APPROACH SPEED | 8.7"/SEC. |
| BENDING SPEED | 0.79"/SEC. |
| RETURN SPEED | 9.8"/SEC. |
| HYDRAULIC FLUID CAP. | 19 GAL. |
| BACKGAUGE SPEED ( L-AXIS) | 1,181 IPM |
| BACKGAUGE SPEED (Y-AXIS) | 3,543 IPM |
| BACKGAUGE SPEED ( Z-AXIS ) | 787 IPM |
Equipped With

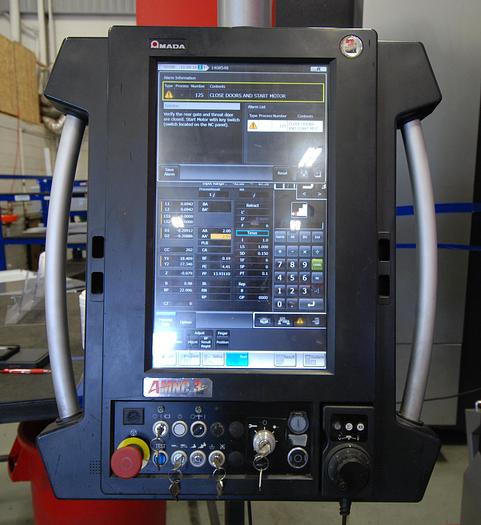

AMADA AMNC 3i, 8-AXIS CONTROL, RAM D1 & D2, BACKGAUGE L1 & L2, BACKGAUGE HORIZ. Y1 & Y2, BACKGAUGE VERTICAL Z1 & Z2 PROGRAM CAPACITY UNLIMITED VIA NET
