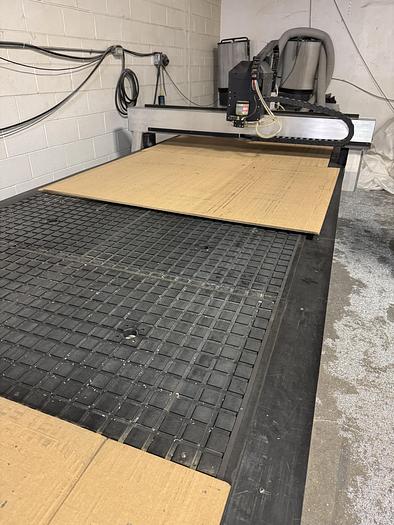

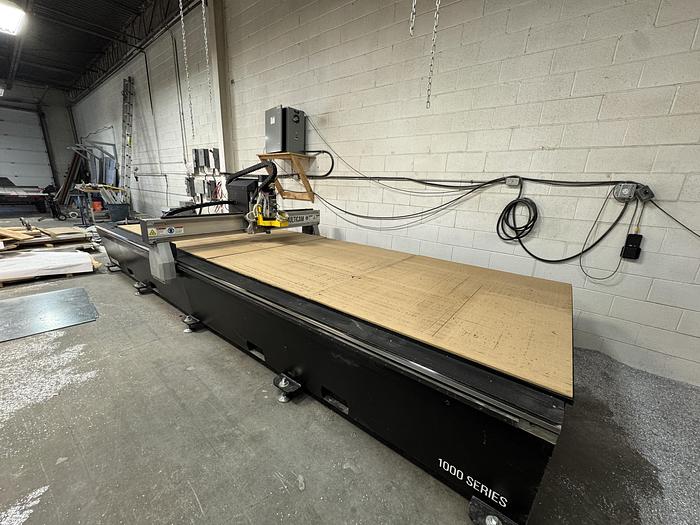

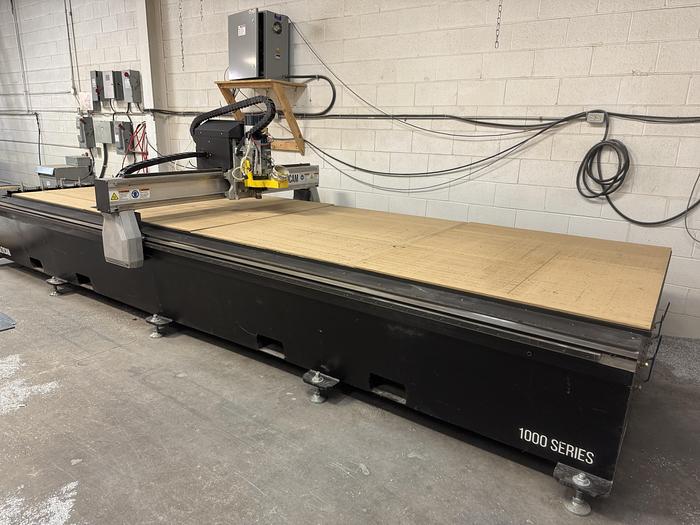

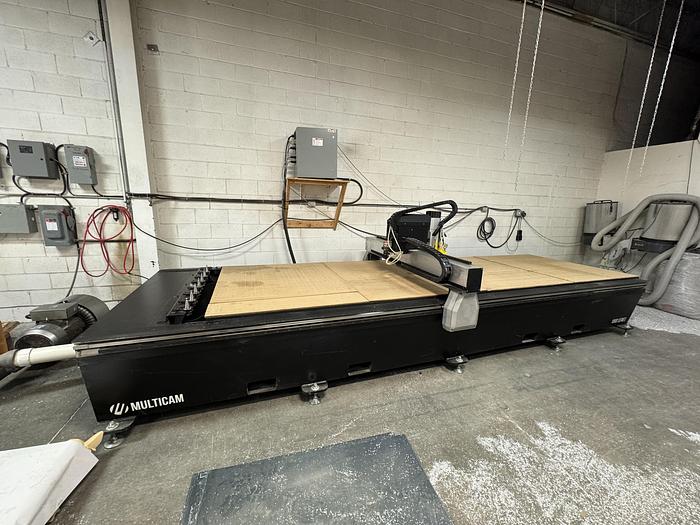

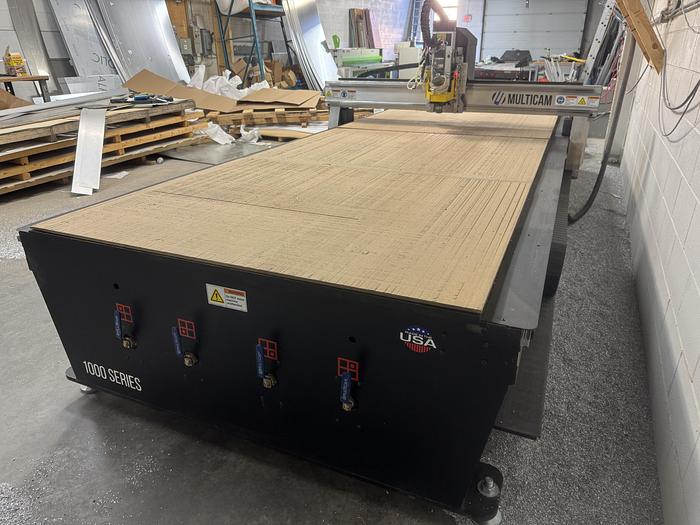

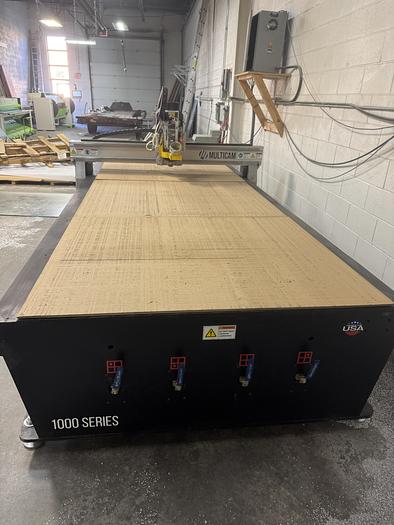

60" X 192" MULTICAM, 1000 SERIES, CNC ROUTER, 2019
or
Call (905) 669-7507
Featured
Specifications
| Manufacturer | MULTICAM |
| Model | 1000 SERIES 1-207-R |
| Year | 2019 |
| Stock Number | 4687 |
| WORK AREA | 60" X 192" |
| SPINDLE SPEED | UP TO 24,000 RPM |
| SPINDLE HP | 10 HP - 4 POLE |
| SPINDLE TAPER | ISO 30 |

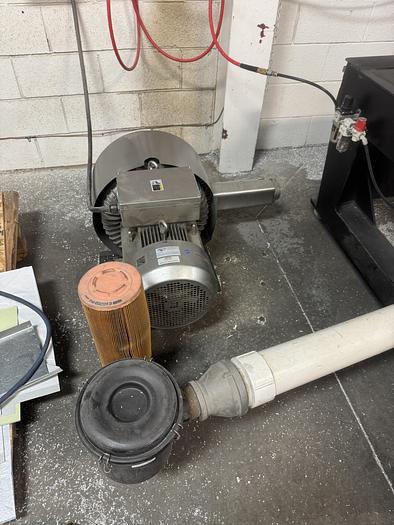

| BLOWER HP | 17 HP - 2 STAGE REGENERATIVE, W/VALVE & FILTER ( 13" HG 335 CFM ) |
| MACHINE VOLTAGE | 208V/3/60 |
| Z- AXIS CLEARANCE | 4.5" |
| Z AXIS TRAVEL | 6" |
| SLEW | 1130 IPM |
| FEED | 800 IPM |
| DRIVE SYSTEM | X & Y RACK AND PINION |
| Z AXIS DRIVE SYSTEM | LEAD SCREW |
Equipped With

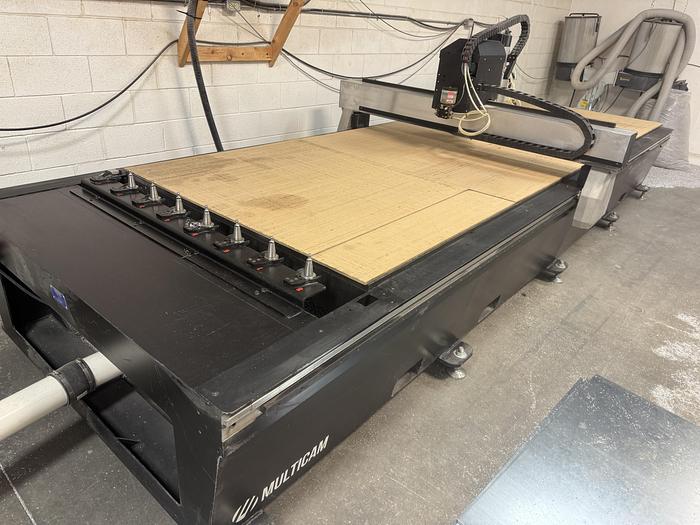

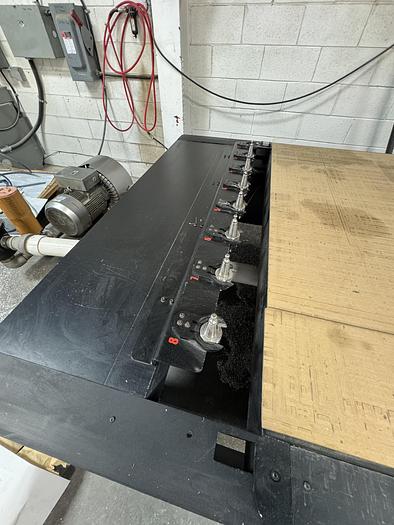

AUTOMATIC TOOL CHANGE SYSTEM

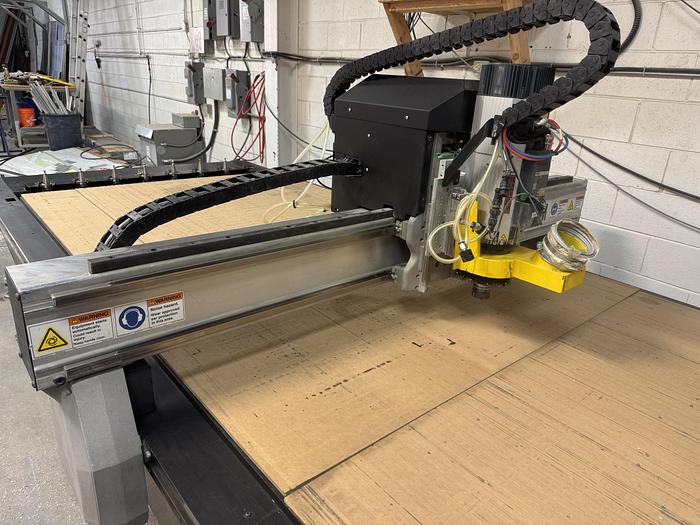

HSD 10 HP - 4 POLE ISO 30 PNEUMATIC CHUCK ( ER32 / 24,000 RPM ) FAN COOLING
Z-AXIS BALLSCREW UPGRADE FOR STEPPER 1000 SERIES ROUTERS

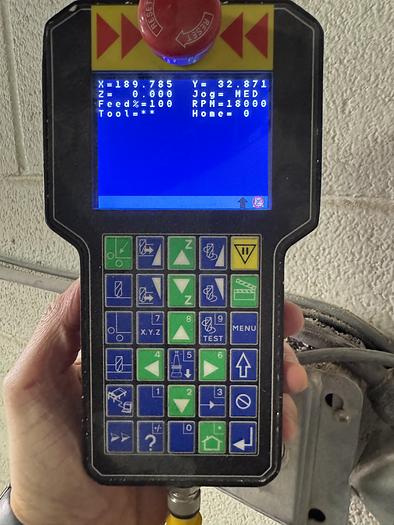

MUTLICAM EZ CONTROL HAND REMOTE
ASSORTED TOOL HOLDERS (8)
ASSORTED COLLETS (8)
HIGH VOLUME DUST COLLECTION HOOD
4 ZONE PHENOLIC UPGRADE W/MANUAL VALVES
MUTLICAM COREO SOFTWARE BMO
ALUMINUM T PLATE EXTRUSION WORKING SURFACE
THIS MACHINE IS IN AS NEW CONDITION WITH VERY LITTLE USE AND CAN BE SEEN UNDER IN A PLANT.
