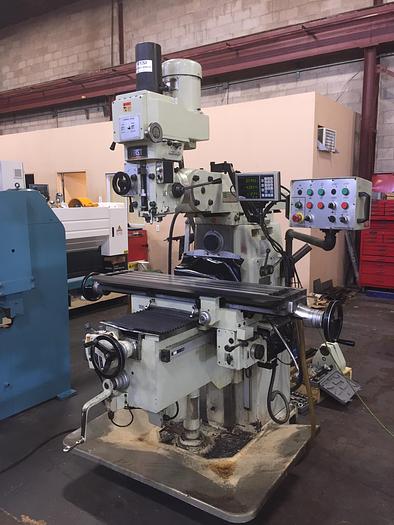

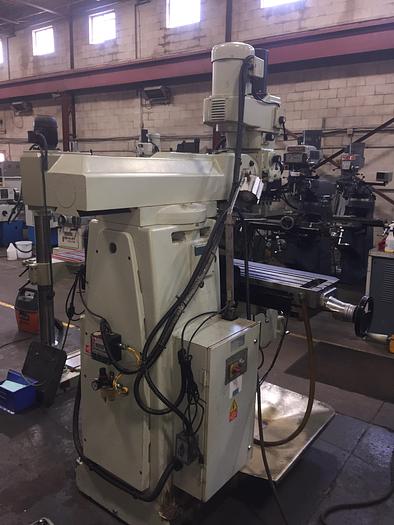

10” X 51”, FIRST, LC-20VHS, UNIVERSAL VERTICAL/HORIZONTAL MILLING MACHINE
Sold
Specifications
| Manufacturer | FIRST |
| Model | LC-20VHS |
| Year | 2006 |
| Stock Number | 4045 |
| YEAR | 2006 |
| STOCK # | 4045 |
| TABLE WIDTH | 10" |
| TABLE LENGTH | 51” |
| TABLE TRAVEL - LONGITUDINAL | 31" |
| TABLE TRAVEL - CROSS | 16" |
| VERTICAL QUILL TRAVEL | 5" |
| VERTICAL KNEE TRAVEL | 15" |
| SPINDLE TAPER | 40 |
| SPINDLE SPEED | 60 - 4500 RPM |
| MOTOR | 5 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. DIMENSIONS | 70" X 66" X 94" Tall |
| APPROX. WEIGHT | 3,250 LBS |
Equipped With

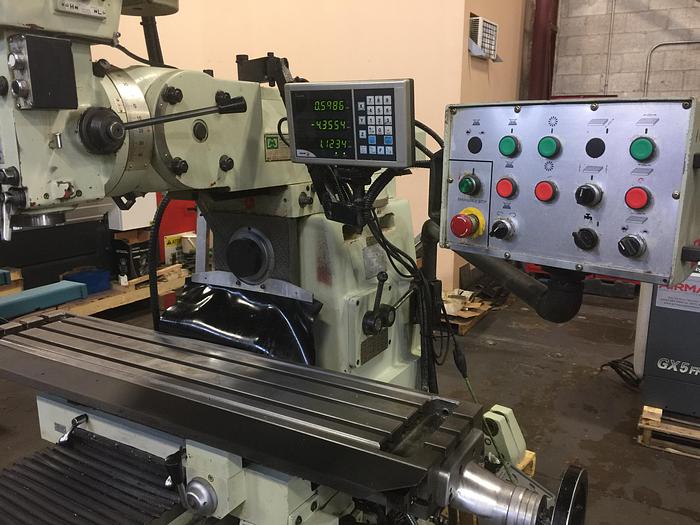

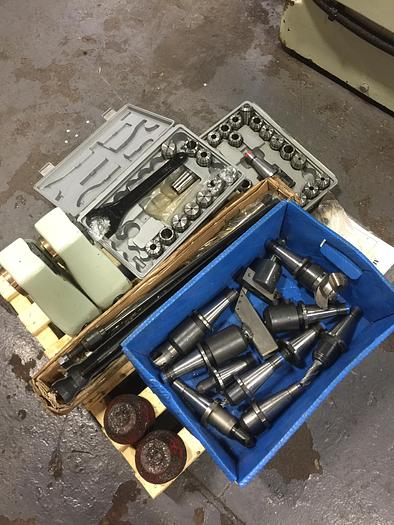

-3-Axis Fagor digital readout -Longitudinal X-Axis power feed -Y-Axis Powerfeed -Powered rise and fall on the knee -Air Power Drawbar -One shot lubrication -Arbor supports & Spindle -Assorted tool holders & collets -Worklight -Pendant Control
