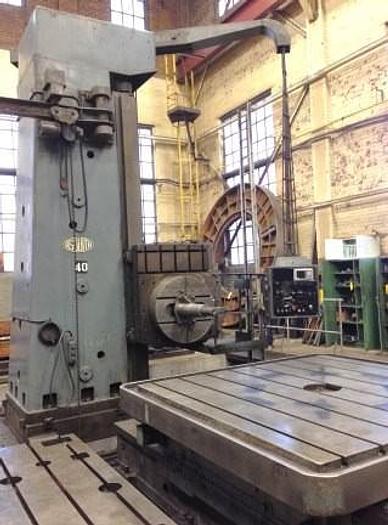

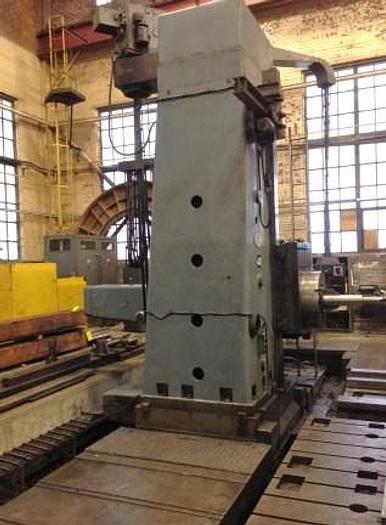

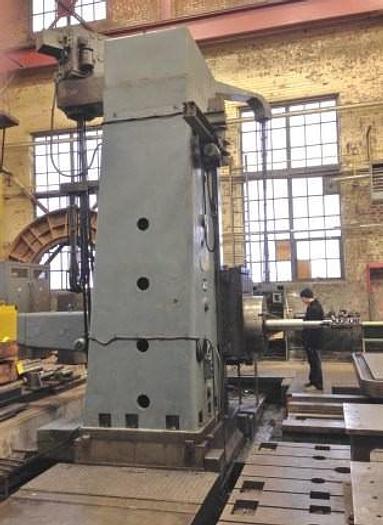

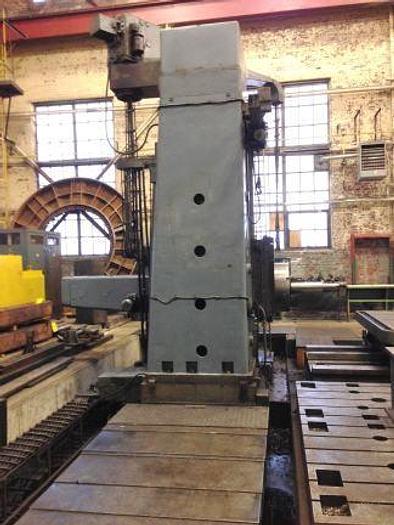

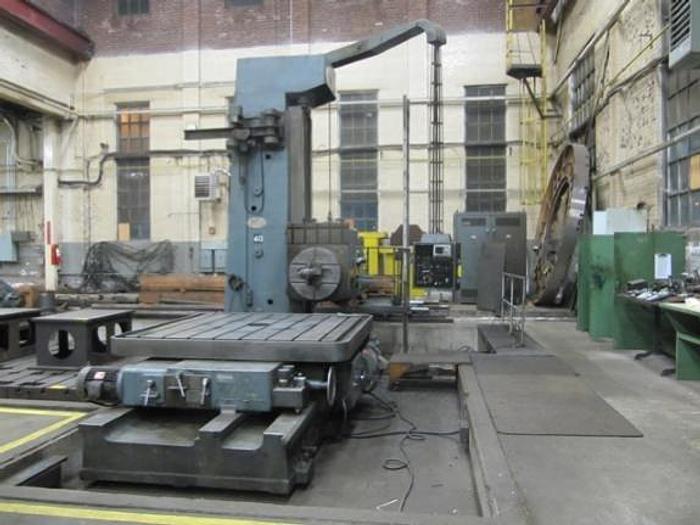

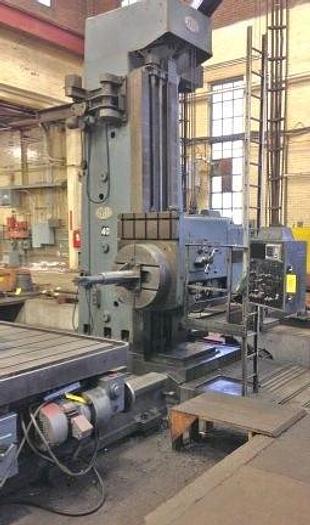

ASQUITH FB 6" MANUAL FLOOR TYPE BORING MILL
orCall (905) 669-7507
Specifications
| Manufacturer | ASQUITH |
| Model | 4FB |
| Year | 1968 |
| Stock Number | 4041 |
| SPINDLE DIAMETER | 6" |
| SPINDLE TAPER | #50 |
| HEADSTOCK VERTICAL TRAVEL, Y-AXIS | 96" |
| COLUMN TRAVEL, X-AXIS | 240" |
| SPINDLE TRAVEL, Z-AXIS | 60" |
| SPINDLE SPEEDS, INFINITY VARIABLE | 1.5 - 600 RPM |
| FACING HEAD SPEEDS | 0.5 - 215 RPM |
| SPINDLE FEEDS | 0.004 - 200 IPR |
| FACING HEAD FEEDS | 0.004 - 2 IPR |
| FEEDS, X & Y AXES | 0.018 - 60 IPM |
| MILLING FEEDS, X & Y AXES | INF. VARIABLE |
| RAPID TRAVERSE | 150 IPM |
| APPROXIMATE OVERALL HEIGHT | 236" |
| FLOOR SPACE | 180" X 408" |
| TABLE SIZE | 96" X 96" |
| TABLE INFEED | 72" |
| TABLE WEIGHT CAPACITY | 44,800 LBS. |
| ROTATION RAPID TRAVERSE | 1 RPM |
| OVERALL TABLE HEIGHT | 43.5" |
| OVERALL WIDTH | 139" |
| CIRCULAR MILLING FEEDS | 0.00028 - .97 IPR |
| CIRCULAR ROTATION FEEDS | INF. VARIABLE |
Equipped With
FEATURES:
✓ INFEEDING ROTARY TABLE WITH MILLING FEEDS
✓ HEAVY DUTY FACING HEAD
✓ HEAVY DUTY RIGHT ANGLE HEAD
EQUIPPED WITH:
FULL PENDANT CONTROLS
3-AXIS FAGOR DIGITAL READOUTS
32" DIAMETER FACING HEAD 50" CAPACITY

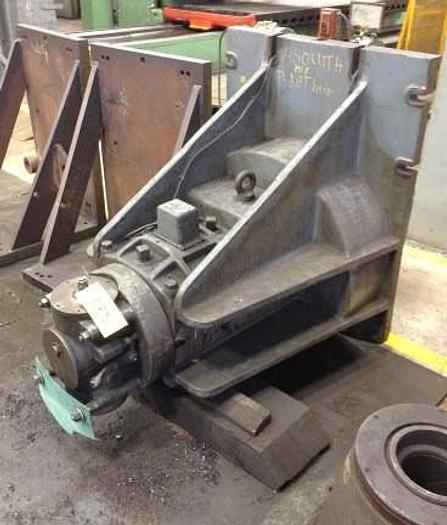

RIGHT ANGLE HEAD WITH 48" REACH

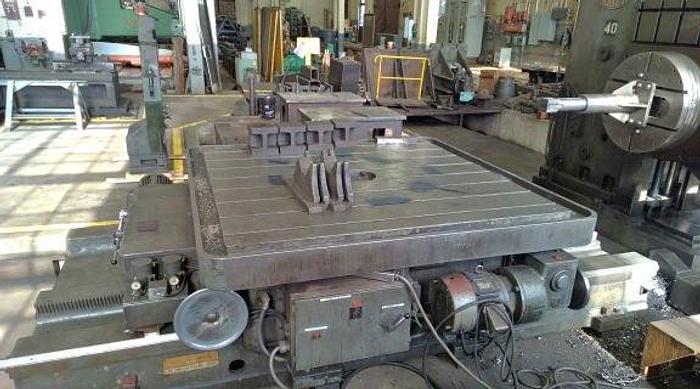

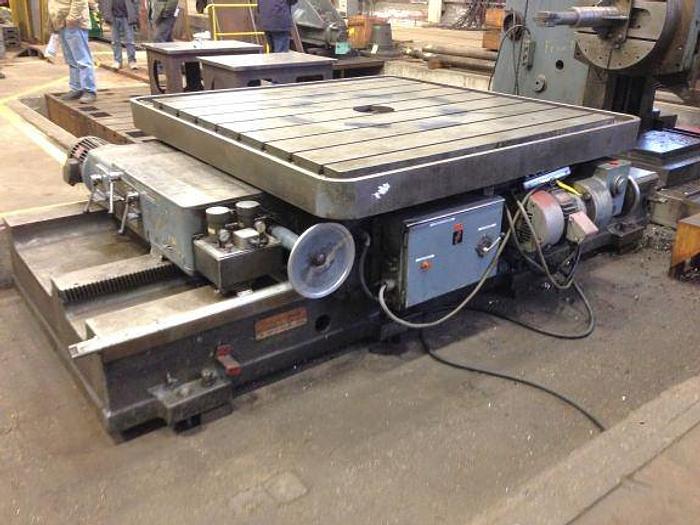

INFEEDING POWER ROTARY TABLE
ROTARY TABLE CIRCULAR MILLING FEEDS
THREAD CUTTING ATTACHMENT WITH CHANGE GEARS
HYDROSTATIC LUBRICATION
WAY COVERS
30 HP SPINDLE DRIVE MOTOR
