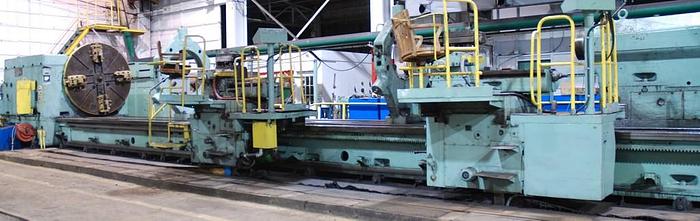

83" X 492", STANKO, HEAVY DUTY ROLL LATHE
orCall (905) 669-7507

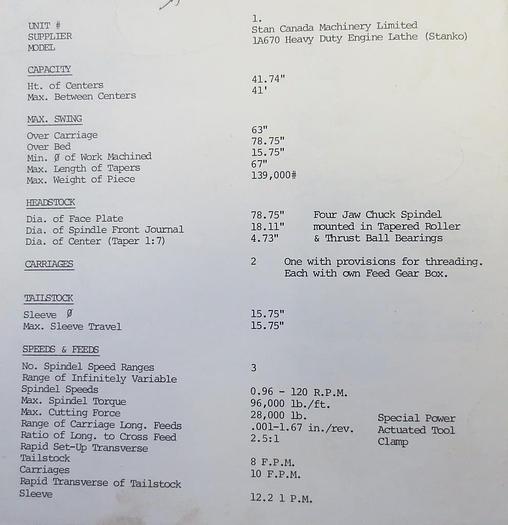

Specifications
| Manufacturer | STANKO |
| Model | 1A670 |
| Year | 1980 |
| Stock Number | 4040 |
| MAX. SWING | 83.44" |
| MAX. SWING, RATED | 78.75" |
| MAX. SWING OVEER CROSS SLIDE | 63" |
| DISTANCE BETWEEN CENTERS | 492.12" |
| WIDTH OF BED | 88" |
| SPINDLE BORE | 4.73" |
| SPINDLE SPEEDS, VARIABLE | .96 TO 120 RPM |
| SPINDLE SPEED RANGES | 3 |
| MAX. SPINDLE TORQUE | 96,000 LB./FT. |
| MAX. CUTTING FORCE | 28,000 LB. |
| RANGE OF CARRIAGE LONG. FEEDS | .001 - 1.67"/REV. |
| RATIO OF LONG. TO CROSS FEED | 2.5 : 1 |
| WEIGHT CAPACITY BETWEEN CENTERS | 60 TONS |
| LENGTH OF TAPERS | 67" |
| TAILSTOCK QUILL DIAMETER | 15.75" |
| TAILSTOCK QUILL TRAVEL | 15.75" |
| FLOOR SPACE, L X W | 820" X 170" |
| OVERALL HEIGHT | 113" |
| MACHINE WEIGHT | 253,000 LBS. |
Equipped With
FEATURES:
✓ 2-CARRIAGES
✓ 4-WAY BED
✓ CARRIAGES PASS TAILSTOCKS & STEADY RESTS
EQUIPPED WITH:

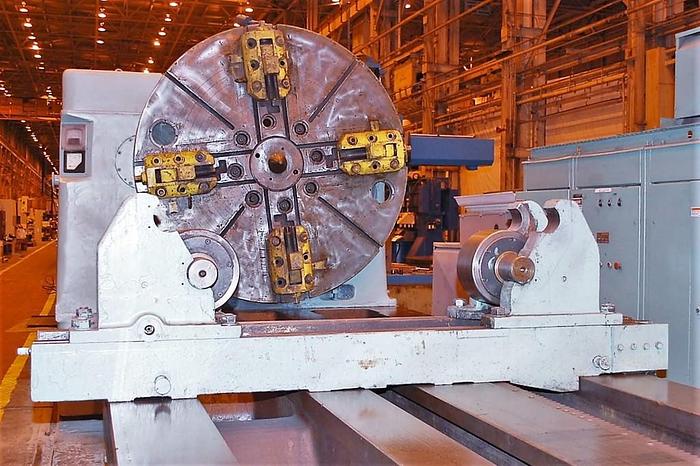

78.75" DIAMETER FACE PLATE TYPE CHUCK
(4) FACE PLATE CHUCK JAWS

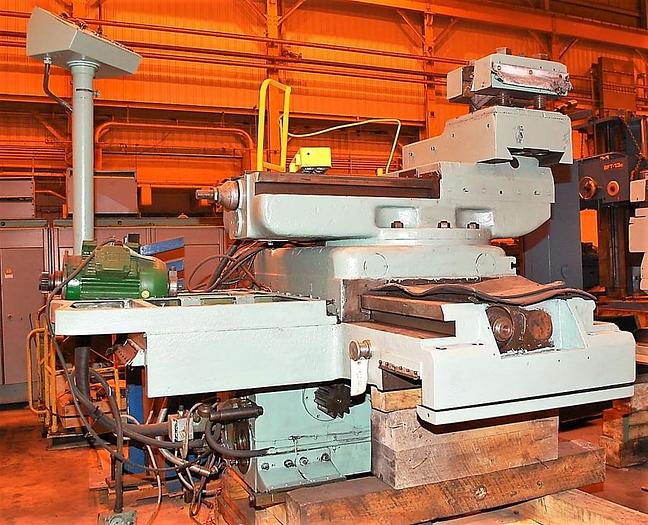

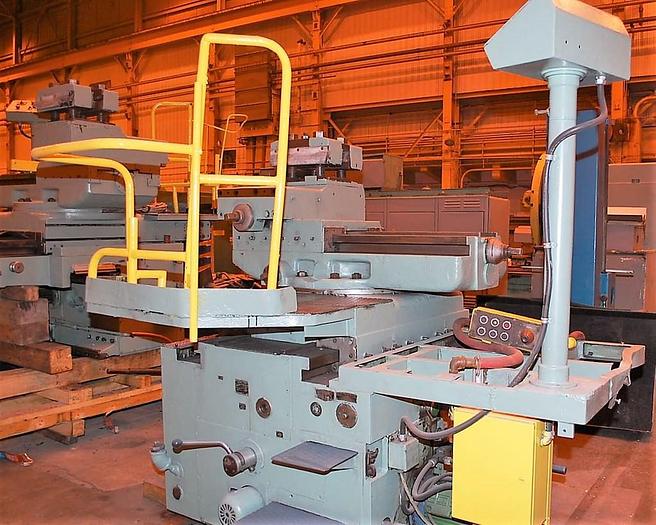

2-CARRIAGES
POWER TAILSTOCK TRAVEL
POWER QUILL TRAVEL
2 STEADY RESTS
LOAD METER ON TAILSTOCK
6-WAY POWER RAPID TRAVERSE
4-WAY TOOLPOST
COOLANT SYSTEM

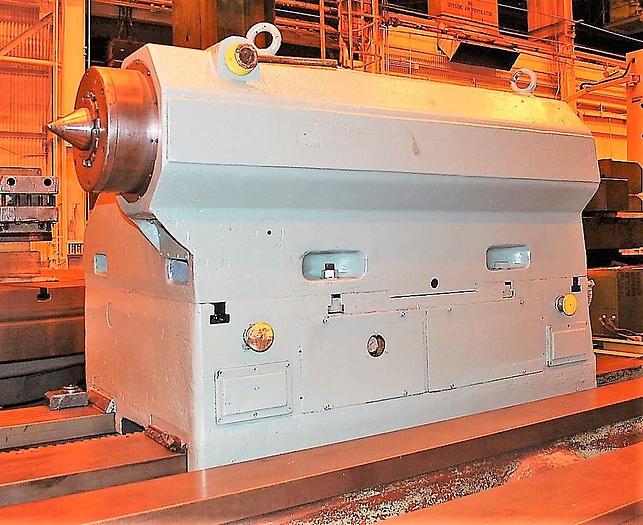

POWER TAILSTOCK
135 HP MAIN SPINDLE MOTOR
460/3/60 POWER
