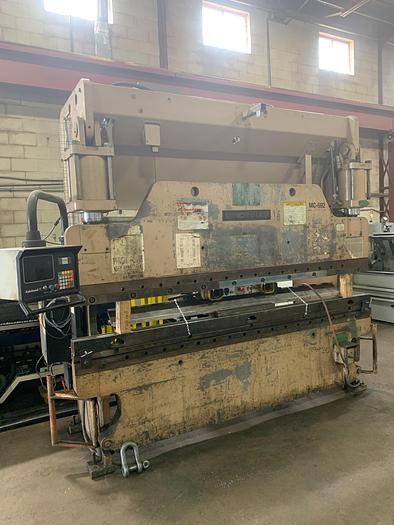

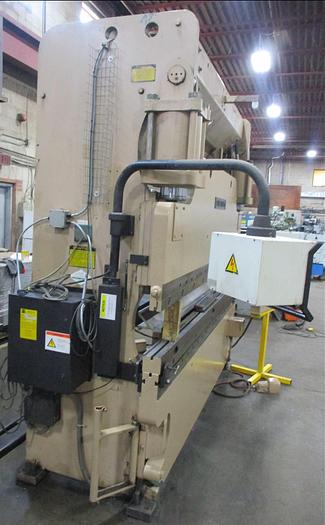

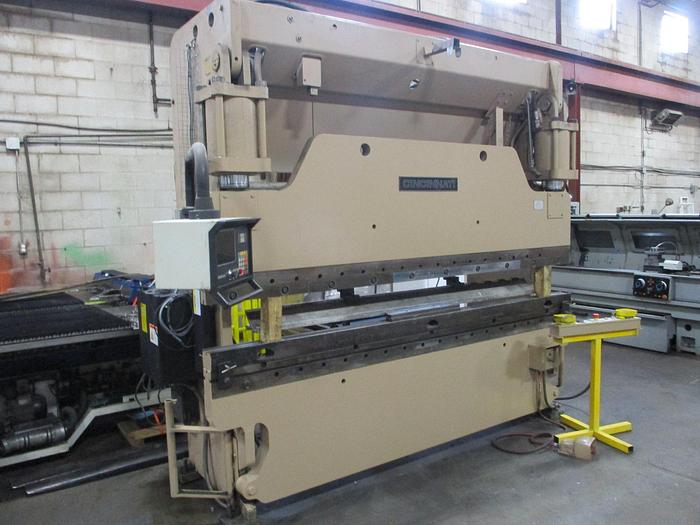

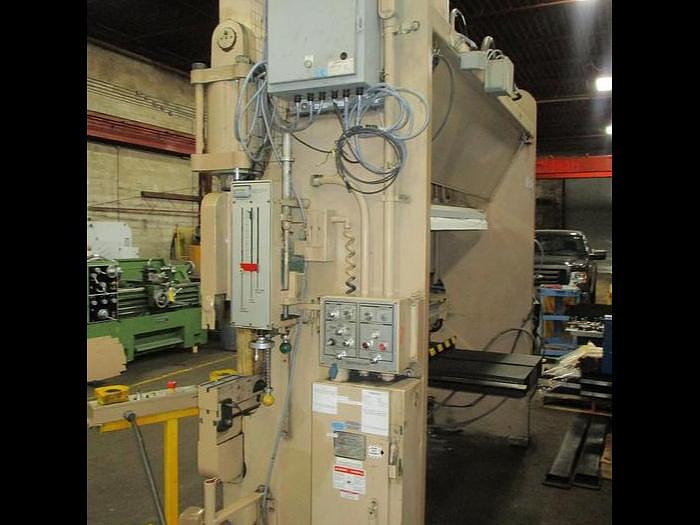

135 TON X 10', CINCINNATI, CNC HYDRAULIC PRESS BRAKE

orCall (905) 669-7507

Specifications

ManufacturerCINCINNATI
ModelCB135X8
Stock Number4038
TONNAGE135 TON
OVERALL BENDING LENGTH120"
DISTANCE BETWEEN FRAMES102"
THROAT DEPTH7"
STROKE8" - ADJUSTABLE
OPEN HEIGHT15"
MOTOR25 HP
APPROX. WEIGHT16,500 LBS.

Equipped With

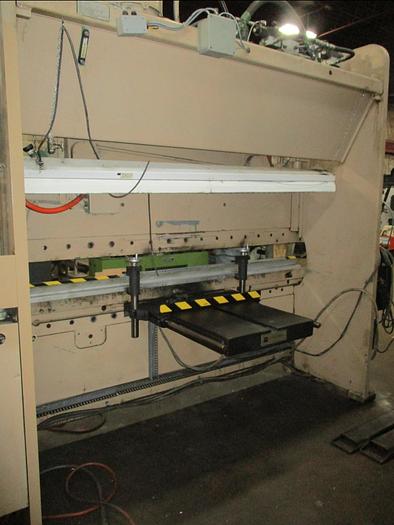

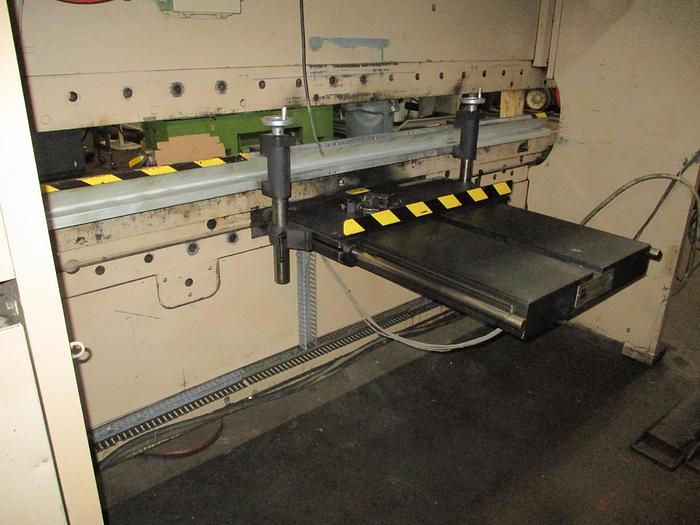

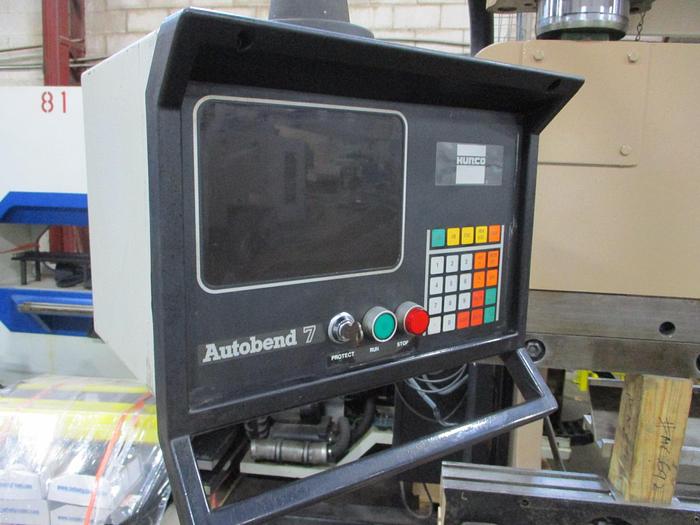

HURCO AUTOBEND 7, 2-AXIS CNC BACKGAUGE SAFETY LIGHT CURTAINS

MANUAL R-AXIS

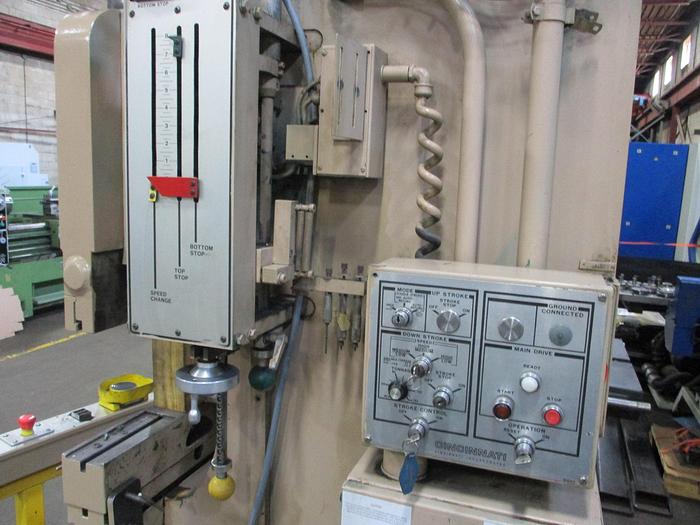

MODE SELECT: INCH/RETURN/AUTO RETURN

DOWN STROKE SPEED SELECT: MEDIUM/LOW, HIGH/MEDIUM, HIGH/LOW

VARIABLE TONNAGE CONTROL

OFF/ON STROKE STOP

OFF/ON STROKE CONTROL FOOT / PALM PEDESTAL CONTROL

4 FINGERS

ASSORTED TOOLING ( SHORT PIECES )

208V/3/60 ELECTRICS
