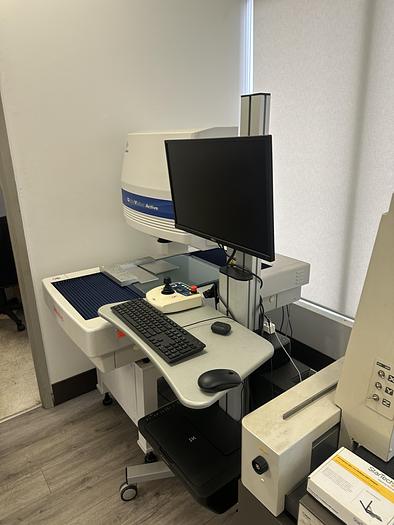

MITUTOYO, 2017, CNC QUICK VISION MEASURING SYSTEM
or
Call (905) 669-7507
Specifications
| Manufacturer | MITUTOYO |
| Model | QV-L404Z1L-D |
| Year | 2017 |
| Stock Number | 4653 |
| MEASURING RANGE ( X x Y x Z ) | 15.7 X 15.7 X 7.8" |
| RESOLUTION | ( .00000394 ) |
| SCALE TYPE | LINEAR ENCODER |
| OBSERVATION UNIT TYPE | ZOOM ( 8 POSITIONS ) |
| ILLUMINATION LIGHT - CO-AXIAL LIGHT | WHITE LED |
| - TRANSMITTED LIGHT | WHITE LED |
| - PRL | 4-QUADRANT FIXED WHITE LED |
| SIZE OF STAGE GLASS | 18.34" X 18.89" |
| MAX. STAGE LOADING | 44 LBS. ( DOES NOT APPLY FOR UNBALANCED OR |
| APPROX. WEIGHT OF MACHINE | 800 LBS. |
Equipped With

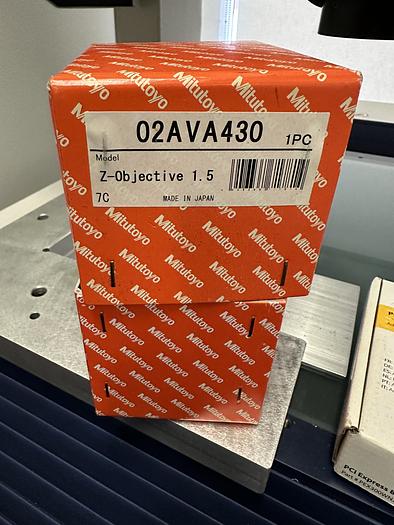

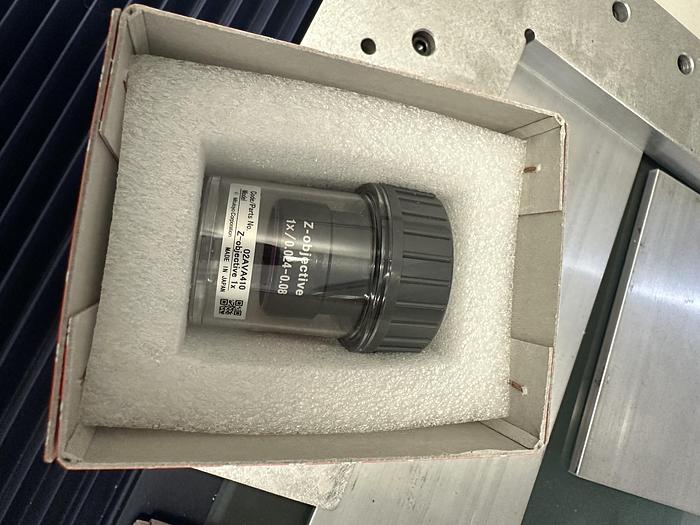

EXTRA LENS

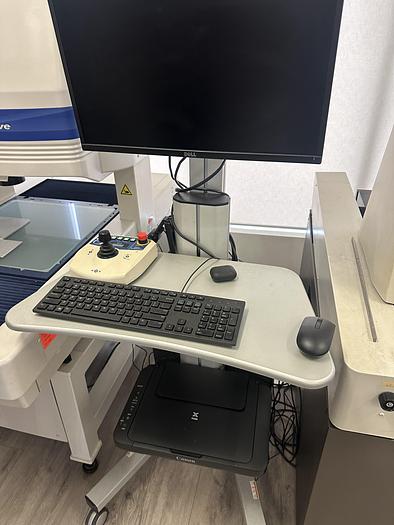

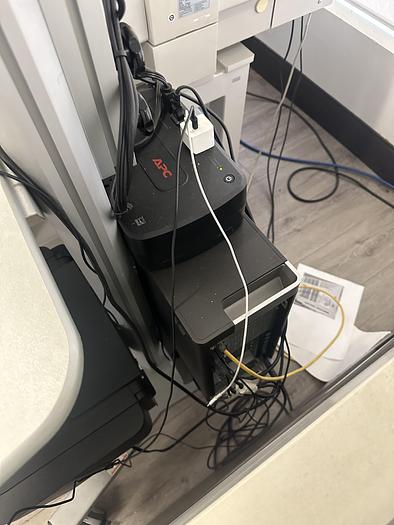

COMPUTER & SOFTWARE
