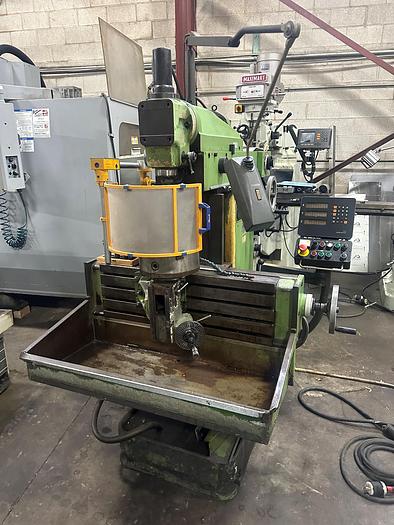

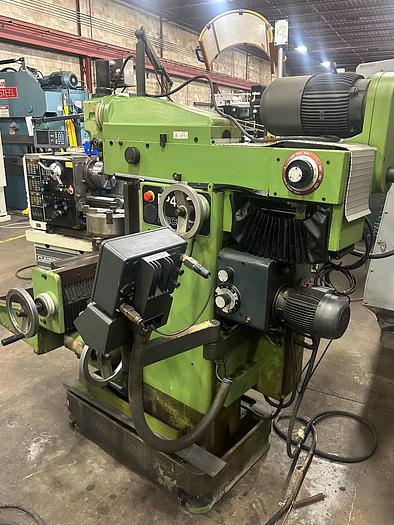

DECKEL, FP4M, 19.7"X, 15.7"Y, 15.7"Z, TOOLMAKERS UNIVERSAL MILLING MACHINE
orCall (905) 669-7507
Specifications
| Manufacturer | DECKEL |
| Model | FP4M |
| Stock Number | 4613 |
| LONGITUDINAL TRAVEL ( X-AXIS ) | 19.7" |
| TRANSVERSE TRAVEL ( Y-AXIS ) | 15.7" |
| VERTICAL TRAVEL ( Z-AXIS ) | 15.7" |
| QUILL STROKE | 3.5" |
| MAIN SPINDLE DRIVE | 6 HP |
| SPINDLE SPEED RANGE ( 18 ) | 50 - 2500 RPM |
| SPINDLE SIZE | NST 40 |
| FEED RANGE ( 18 ) | 0.3 TO 24.8 IPM |
| APPROX. WEIGHT | 3,200 LBS. |
Equipped With

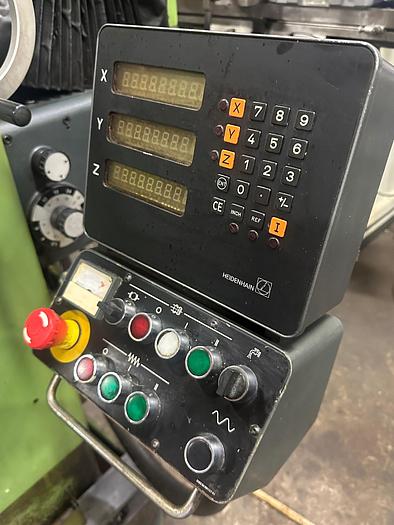

3-AXIS HEIDENHAIN DIGITAL READOUT ( HAS SCALE FOR X-AXIS ONLY )
10" 4-JAW CHUCK

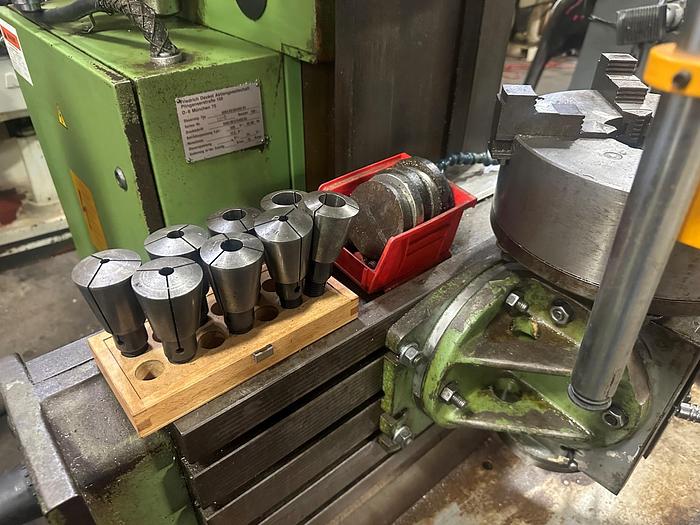

SET OF COLLETS
MANUAL LUBRICATION
