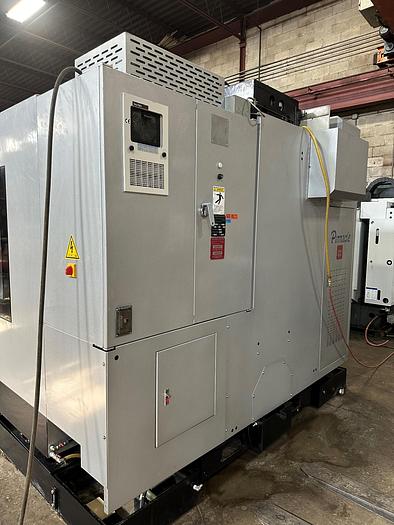

26"X, 24"Y, 22.4"Z, PINNACLE, 5-AXIS CNC MACHINING CENTER, 2015

orCall (905) 669-7507

Specifications

ManufacturerPINNACLE
ModelAX320
Year2015
Stock Number4588
DATE OF MFG.2015
X-AXIS TRAVEL26"
Y-AXIS TRAVEL24"
Z-AXIS TRAVEL22.4"
WORK TABLE AREA12.6" DIAMETER
MAX. TABLE LOAD ( 0° / 90° )330 LBS.
DIAMETER OF TABLE HOLE1.96"
SPINDLE NOSE TO TABLE SURFACE2" - 23.8"
A-AXIS TILT (DEG) / (0.001°)150° (-120° / +30°)
C-AXIS ROTARY (DEG) / (0.001°)360°
TOOL SHANK & PULL STUDISO40
SPINDLE INNER DIAMETER2.75"
SPINDLE SPEED (RPM)12,000 RPM
SPINDLE TAPERCAT 40
AUTOMATIC TOOL CHANGER40
MAIN MOTOR9/12 KW
RAPID FEEDRATE (X / Y / Z IPM)1.1811 / 1.1811 / 0.9448
FEED RATE ( X / Y / Z IPM )0.393
MAX. TOOL DIAMETER3.54"
MAX. TOOL LENGTH11.8"
MAX. TOOL WEIGHT17.63 LBS.
APPROX. MACHINE WEIGHT14,400 LBS.

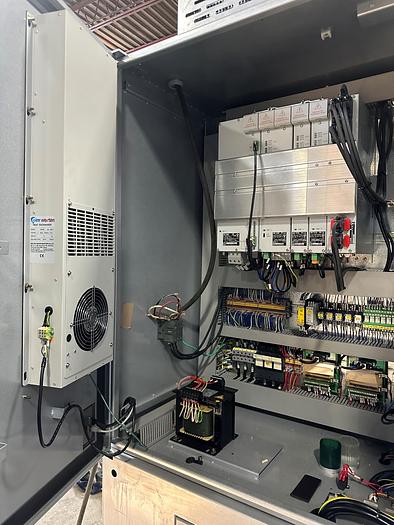

Equipped With

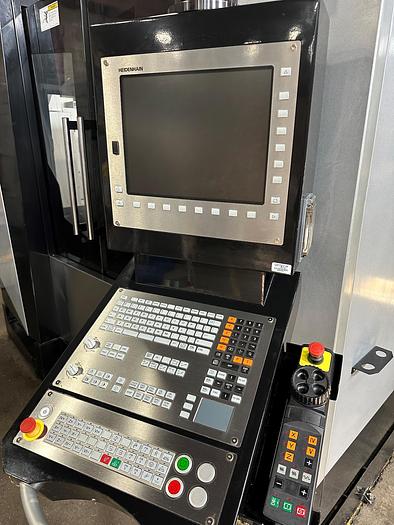

HEIDENHAIN iTNC530 CNC CONTROL

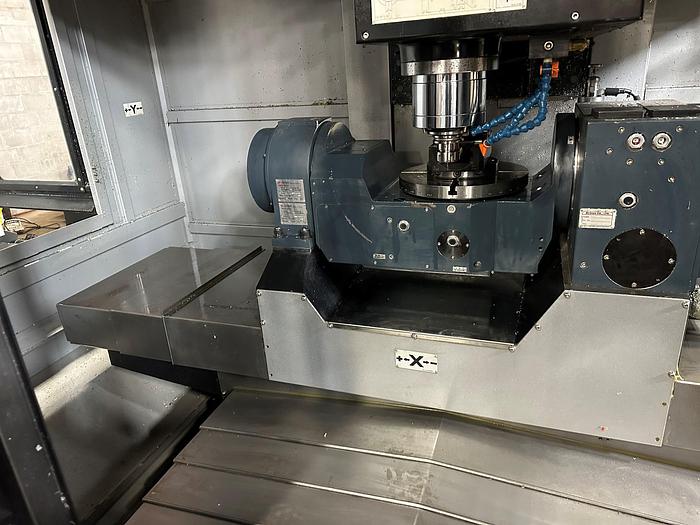

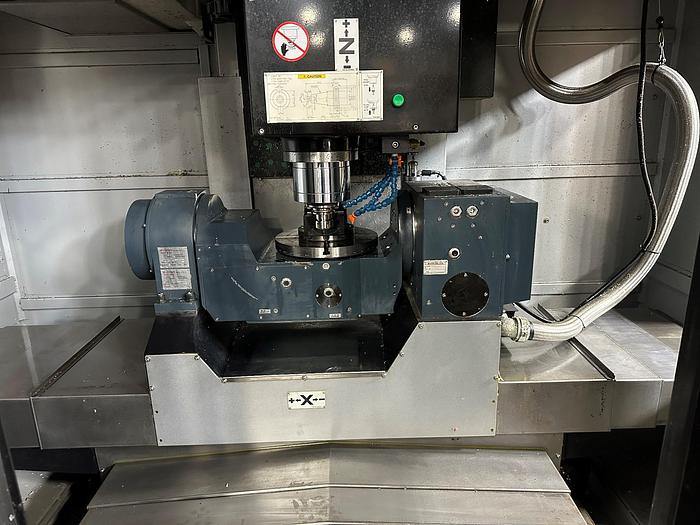

4TH & 5TH AXIS TRUNNION TABLE

TOOL SETTER TT160

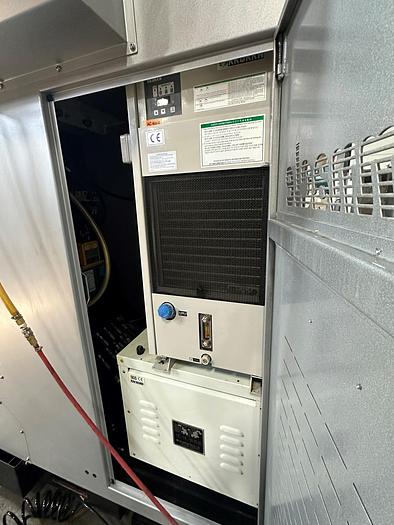

COOLANT TANK & PUMP

WORKLIGHT


FEATURES:


A-AXIS TILT 150° ( -120°/+30° )

C-AXIS ROTARY 360°

9/12 KW SPINDLE MOTOR

X, Y, Z, LINEAR WAYS


THIS MACHINE IS IN AS NEW CONDITION AND ONLY HAS 293 SPINDLE HRS
