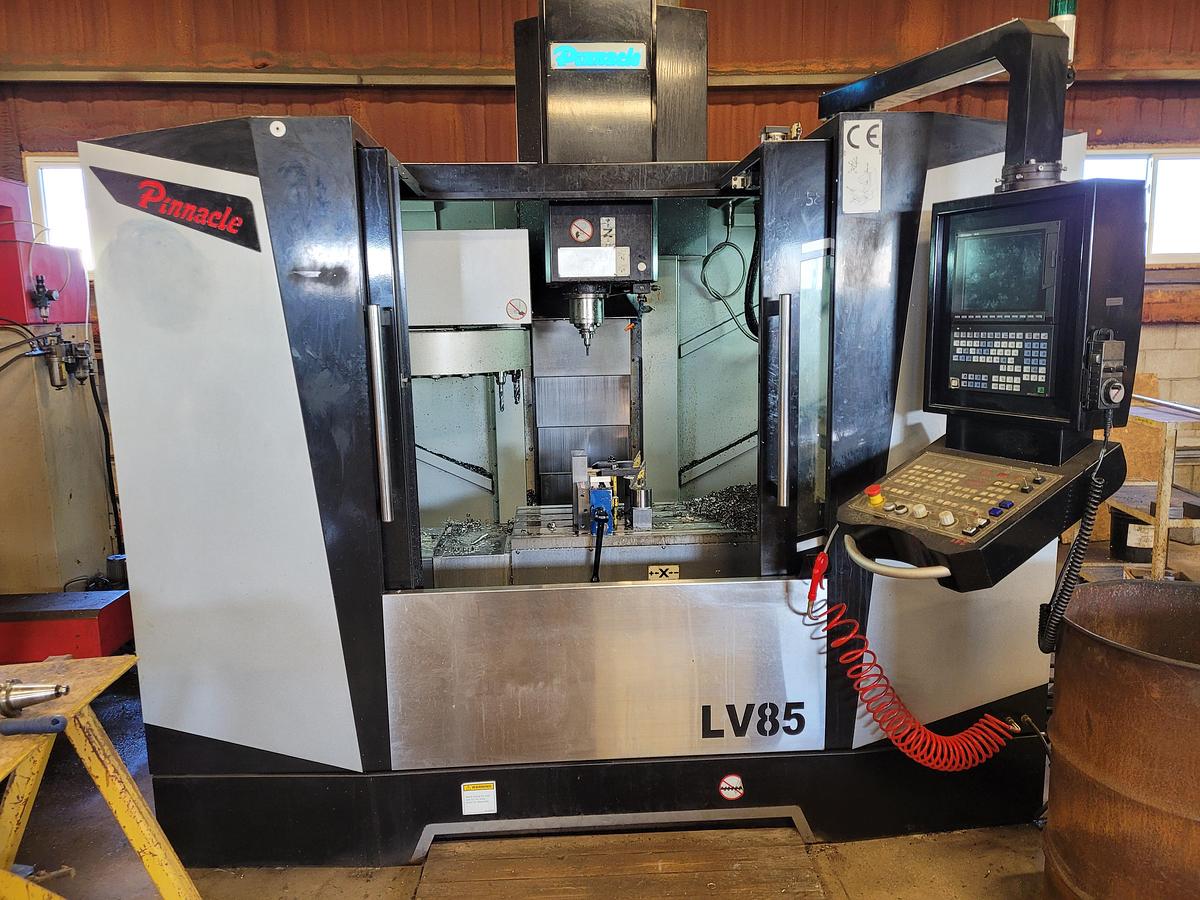

33"X, 22"Y, 22"Z, PINNACLE, LV85, 2017, CNC VERTICAL MACHINING CENTER

orCall (905) 669-7507

Specifications

ManufacturerPINNACLE
ModelLV85
Year2015
Serial Number3P21053D1
Stock Number4008
MACHINE INSTALLED2017

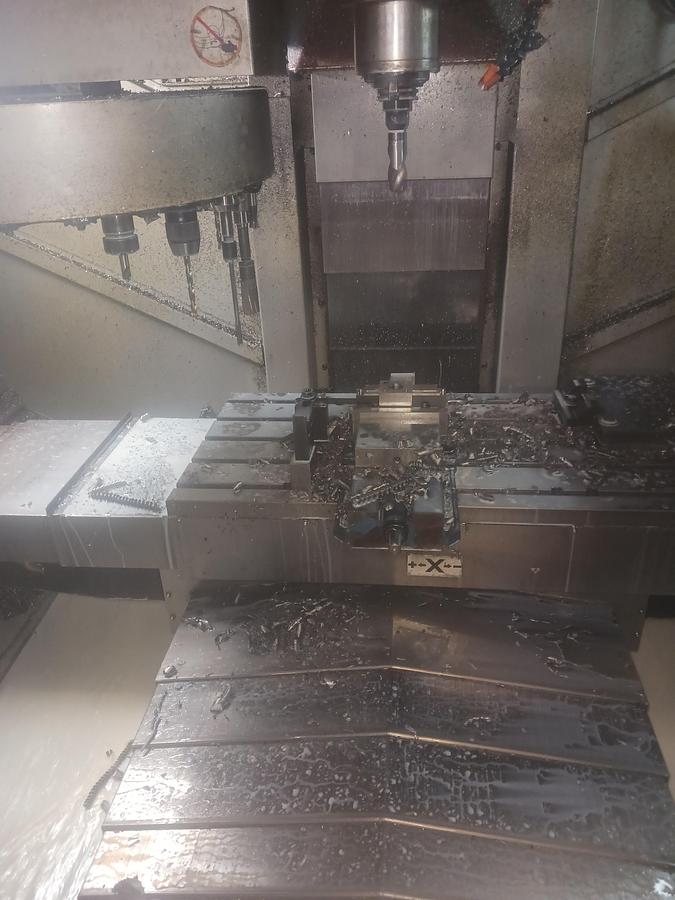

TABLE AREA39" X 20"
X-AXIS TRAVEL33"
Y-AXIS TRAVEL22"
Z-AXIS TRAVEL22"
MAX. TABLE LOAD1,322 LBS.
SPINDLE NOSE TO TABLE SURFACE3.9" TO 25.9"
NO. OF STATIONS ON ATC20
SPINDLE TAPERISO 40
MAX. SPINDLE SPEED8,000 RPM
RAPID FEED RATE - X /Y /Z1,417"/MIN. X/Y - 944"/MIN. Z
FEED RATE393"/MIN.
VOLTAGE600V/3/60
MAIN MOTOR21 HP

Equipped With

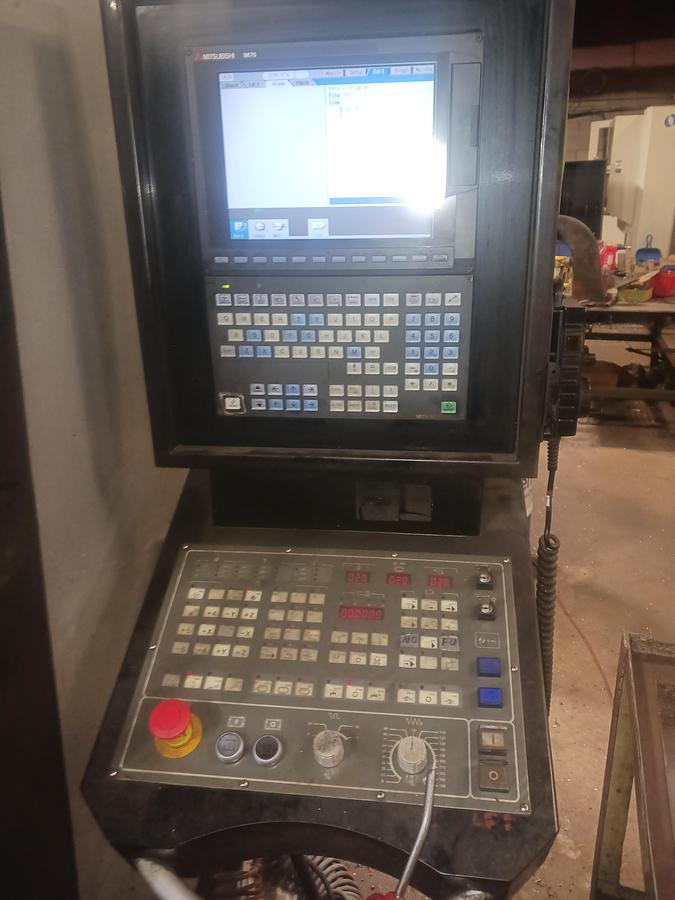

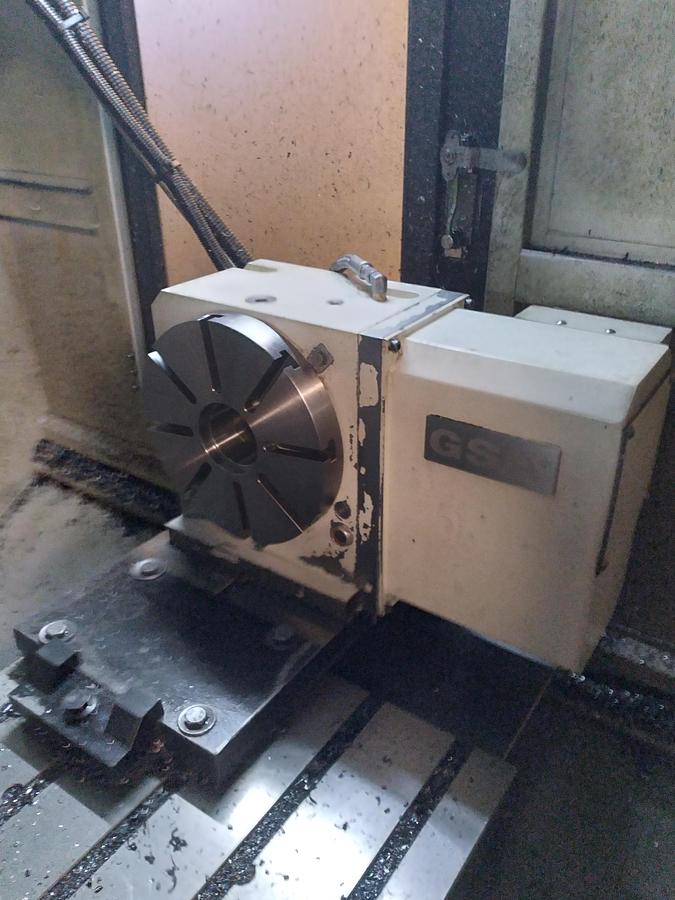

MITSUBISHI M70V CNC CONTROL 10" - 4TH AXIS ROTARY TABLE W/TAILSTOCK COOLANT THRU SPINDLE CHIP AUGER COOLANT SKIMMER COOLANT TANK & PUMP
