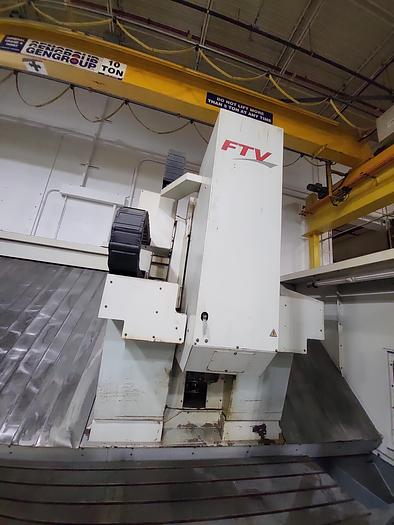

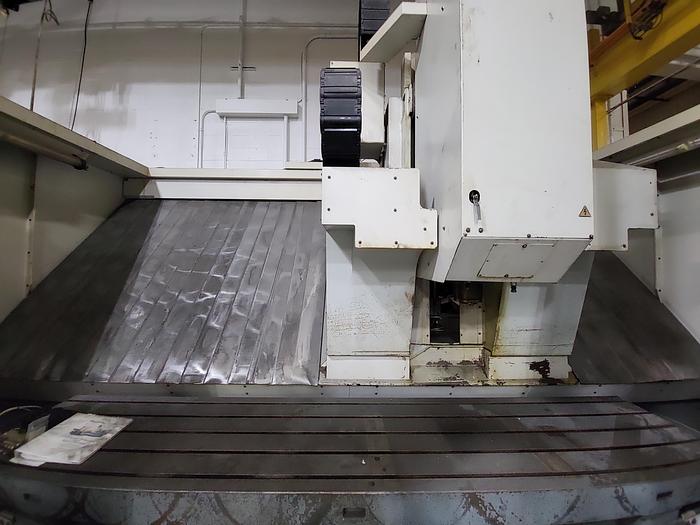

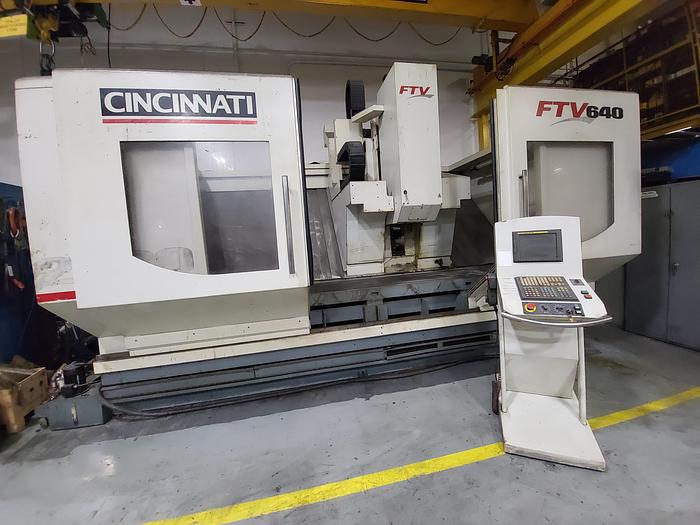

2004 CINCINNATI TRAVELING COLUMN - FIXED TABLE VERTICAL MACHINING CENTER
orCall (905) 669-7507
Specifications
| Manufacturer | CINCINNATI |
| Model | TRAVELING COLUMN - FIXED TABLE VERTICAL MACHINING CENTER |
| Year | 2004 |
| Stock Number | 4552 |
| X-AXIS TRAVEL | 100" |
| Y-AXIS TRAVEL | 25" |
| Z-AXIS TRAVEL | 26" |
| SPINDLE SPEED | 5,000 RPM |
| SPINDLE MOTOR | 16/25 HP |
| SPINDLE TORQUE | 168/259 FT-LBS |
| SPINDLE TAPER | BT-40 |
| TOOL MAGAZINE CAPACITY | 36 ATC |
| MAX TOOL DIAMETER | 3.15", ADJACENT POCKET 5.51" |
| MAX TOOL LENGTH | 12.99" |
| TABLE SIZE | 119.7" X 25" |
| TABLE LOAD CAPACITY | 6,600 LBS |
| MACHINE FLOOR SPACE | 18" X 12" OR 5.5M X 3.5M |
| MACHINE WEIGHT | 35,000 LBS |
Equipped With

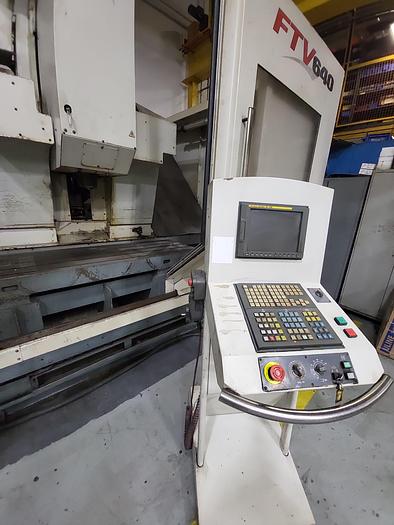

FANUC 18i-MB CONTROL
HEIDENHAIN GLASS SCALES ON ALL 3 AXES

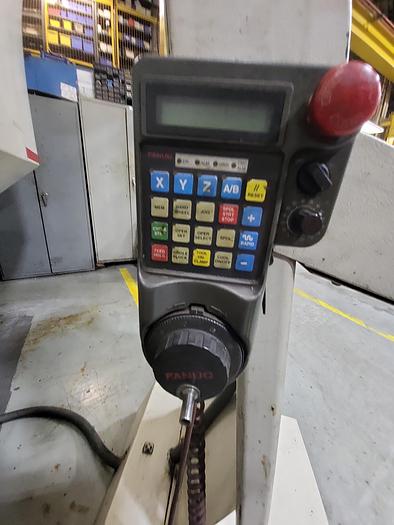

WALK-AROUND MPG/PLC MACHINE CONTROL PENDANT
HIGH TORQUE SPINDLE OPTION
8600 TOTAL RUN HOURS
