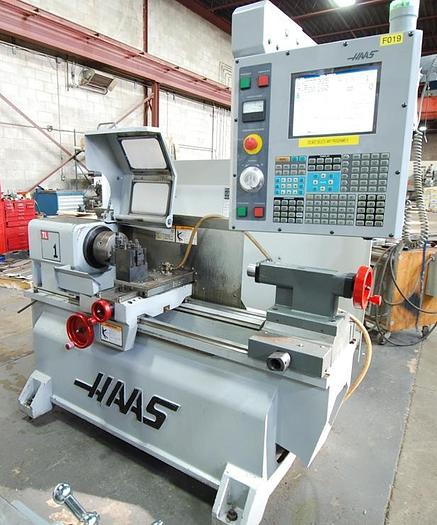

2005 HAAS TL-1
Sold
Specifications
| Manufacturer | HAAS |
| Model | TL-1 |
| Year | 2005 |
| Stock Number | 3999 |
| Max. swing over bed | 16" |
| Max. swing over cross slide | 8.5" |
| Max. cutting diameter | 16" |
| Max. machining length | 30" |
| X-axis travel | 8" |
| Z-axis travel | 30" |
| Spindle motor | 7.5 HP |
| Spindle speed | 1,200 RPM |
| Spindle nose | A2-5" |
| Spindle bore | 2.31" |
| Rapid traverse x,y | 75 IPM / 150 IPM |
| Taistock center | # 3 MT |
| Approx. machine weight | 4,000 LBS. |
Equipped With
Equipped with:
8" 3-JAW CHUCK
COOLANT PUMP SYSTEM
TAILSTOCK
CHUCK COVER PLATE
