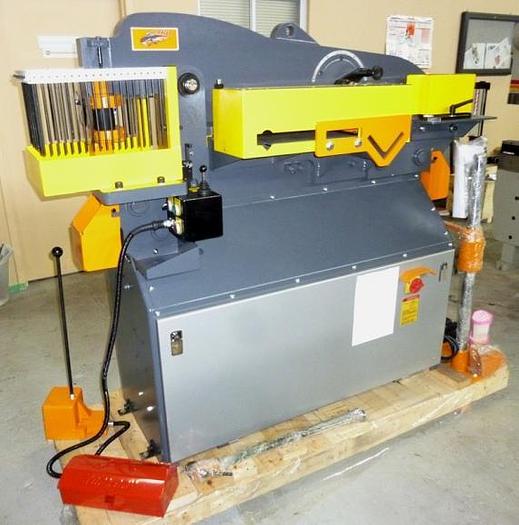

MAKO T-55
No longer available
Specifications
| Manufacturer | MAKO |
| Model | T-55 |
| Stock Number | 2547 |
| THROAT DEPTH | 8" |
| OPEN HEIGHT | 13-1/2" |
| CLOSED HEIGHT W/O DIE BLOCK | 9-1/4" |
| STROKE LENGTH | 4-1/4" |
| PLATE TABLE SIZE (D X W) | 10" X 17" |
| PUNCH | 55 TONS |
| MAX. MATERIAL | 13/16" - 3/4" |
| MAX. HOLE (SPECIAL TOOLING) | 5-1/8" |
| PLATE SHEAR | 15-1/2" LONG |
| W/ FIXED HOLD DOWN | 1" X 4" / 3/4" X 10" / |
| ANGLE SHEAR | 5" X 5" X 3/8" |
| BAR SHEAR - ROUND ( MIN. TO MAX.) | 1/4" TO 1-1/2" |
| - SQUARE (MIN. TO MAX. ) | 1/2" TO 1" |
| COPER NOTCHER - 56 TONS | 2-3/4" X 4" X 1/4" |
| PUNCH END ( STROKES PER/MIN. ) | 60 @ 1/2" |
| HYDRAULIC PUMP GPM | 10.5 / SYSTEM R/V PSI |
| FLUID CAPACITY (STD) | 20 |
| MOTOR | 10 HP |
| DIMENSIONS ( W x L x H) | 24" x 66" x 60" |
| WEIGHT (GROSS/NET) | 2,750 / 2600 LBS. |
Equipped With
* 8" BENDING ATTACHMENT
* COMPLETE PUNCHING ATTACHMENT W/STRIPPER
* AUTOMATIC URETHANE HOLD-DOWNS ON ANGLE, PLATE & BAR SHEARING
* FRONT & REAR 5 POSITION JOYSTICK CONTROLS W/ JOG UP & DOWN, FAST UP & DOWN & NEUTRAL
* COUPLING WRENCH
* REMOTE ELECTRIC FOOT PEDAL CAN BE CONNECTED AT EITHER END OF THE MACHINE
* MANUAL BACKGAUGE
* TWO CHIP BUCKETS FRONT & REAR
* 2-WAY POP-OUT CABINET DOOR
