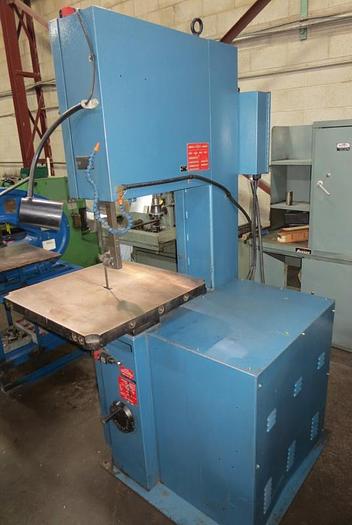

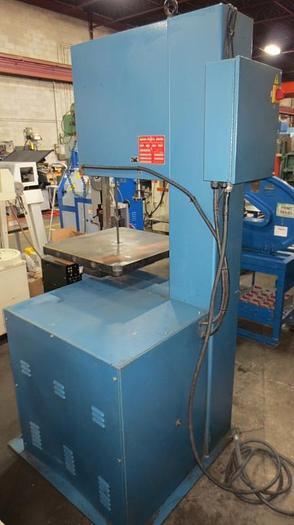

DOALL, 2013-V, 2006, VERTICAL BANDSAW
Sold
Specifications
| Manufacturer | DOALL |
| Model | 2013-V |
| Year | 2006 |
| Stock Number | 3753 |
| CAPACITY | 20" X 13" |
| BAND SPEED | 55 - 5,200 FPM |
| AC MOTOR DRIVE | 2 HP |

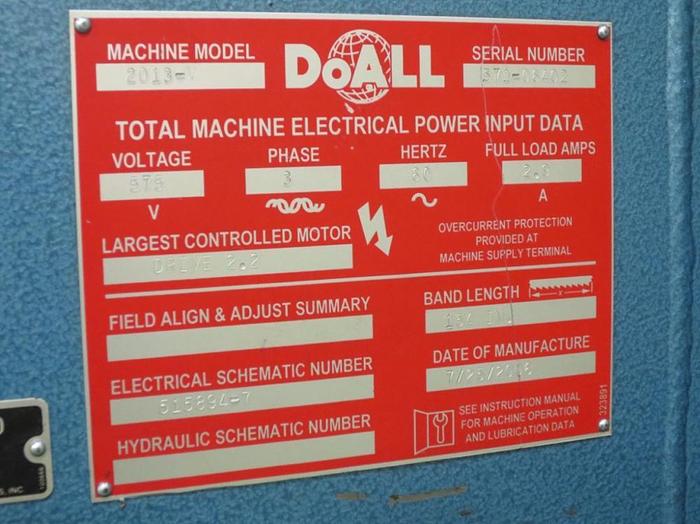

| ELECTRICS | 575V/3/60 |
| THROAT, BAND TO COLUMN | 20" |
| MAX. WORK HEIGHT | 13" |
| BAND WIDTH CAPACITY | 1/8" - 1" |
| BAND LENGTH | 154" |
| TABLE AREA | 26" X 26" |
| TABLE TO FLOOR HEIGHT | 39" |
| TABLE CAPACITY | 500 LBS. |
| UPPER WHEEL ADJUSTMENT | 500 LBS. |
Equipped With
BAND SPEED ADJUSTMENT HANDWHEEL
DUAL RANGE TRANSMISSION
VARIABLE PULLEY DRIVE

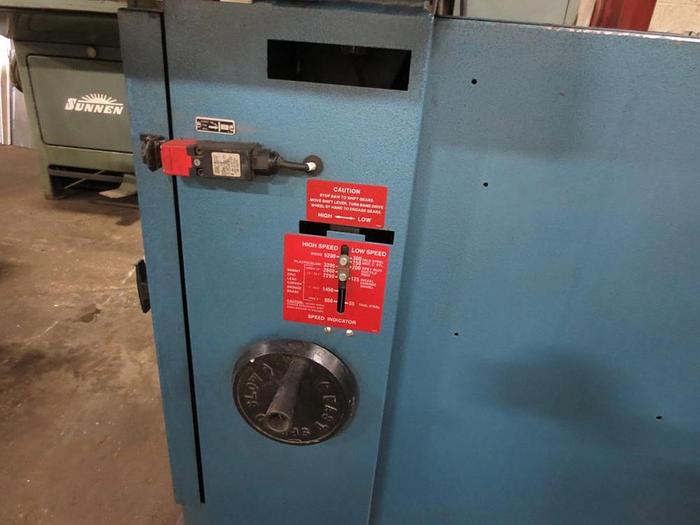

BAND SPEED INDICATOR
BAND DOOR INTERLOCKS
BAND TENSION ADJUSTMENT HANDWHEEL
ALUMINUM WHEELS WITH CROWNED RUBBER TIRES
