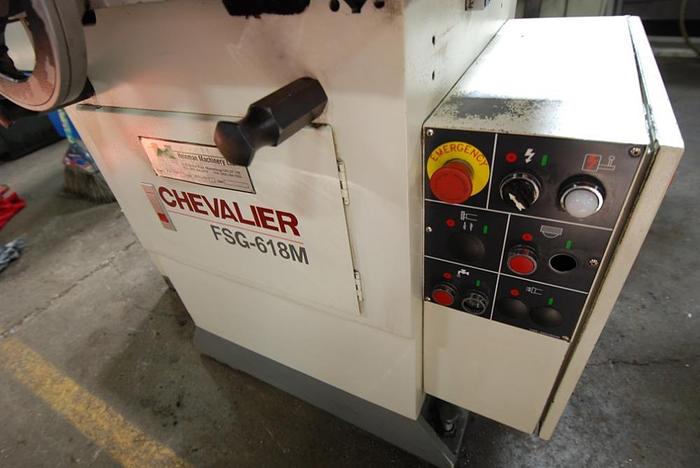

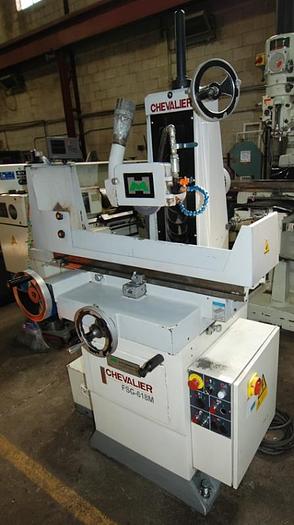

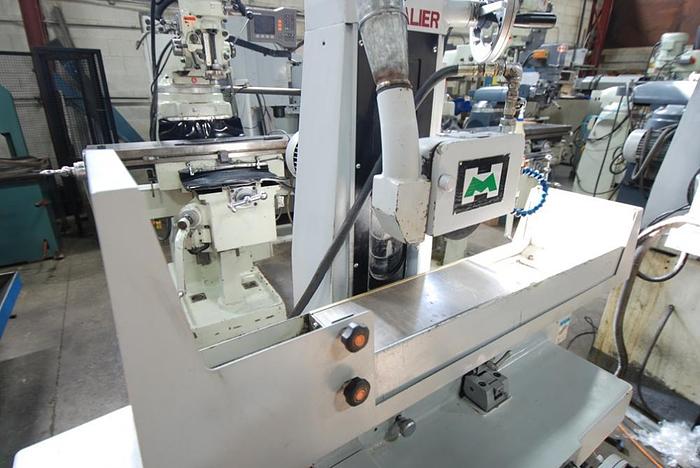

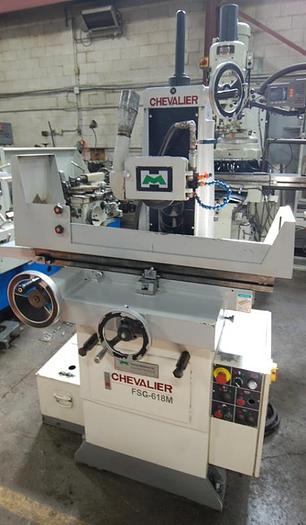

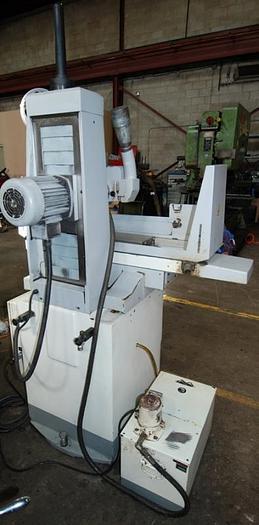

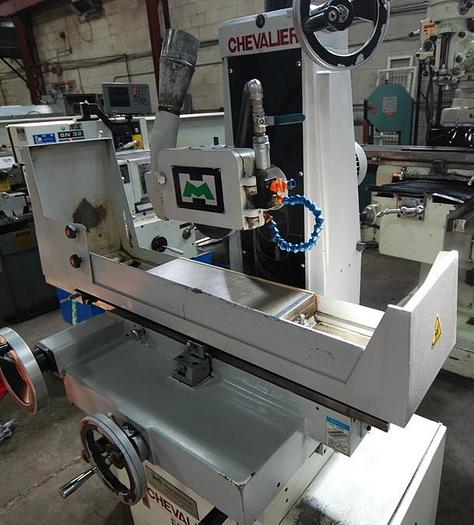

6" X 18", CHEVALIER FSG-618M, MANUAL SURFACE GRINDER

orCall (905) 669-7507

Specifications

ManufacturerCHEVALIER
ModelFSG-618M
Stock Number4006
TABLE SIZE5.75" x 18"
LONGITUDINAL TRAVEL (X AXIS)19"
CROSSFEED TRAVEL (Y AXIS)7"
MAX DISTANCE (TABLE SURFACE-SPINDLE)18"
MAX GRINDING LENGTH18"
MAX GRINDING WIDTH6"
MAX WORKPIECE WEIGHT462 LBS
SPINDLE MOTOR2 HP
ELECTRICS575 V / 3 / 60
SPINDLE SPEED3450 RPM
GRINDING WHEEL DIAMETER8"
GRINDING WHEEL WIDTH0.5"
GRINDING WHEEL BORE1.25"
DIMENSIONS (L x W x H)53" x 36" x 67"
APPROX MACHINE WEIGHT1480 LBS
