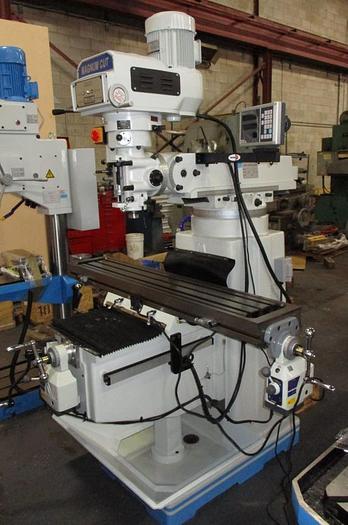

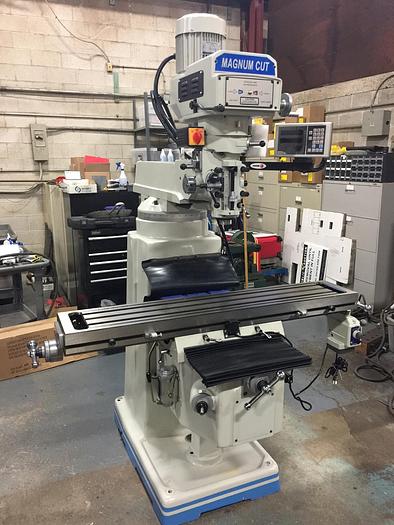

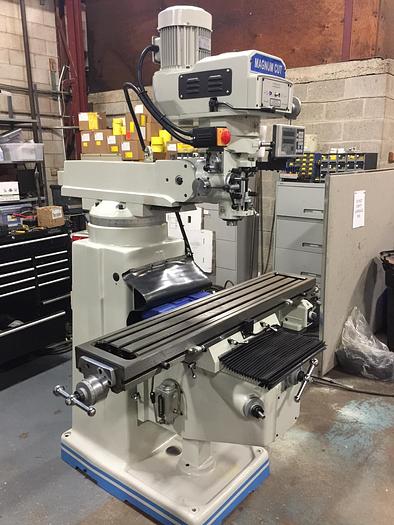

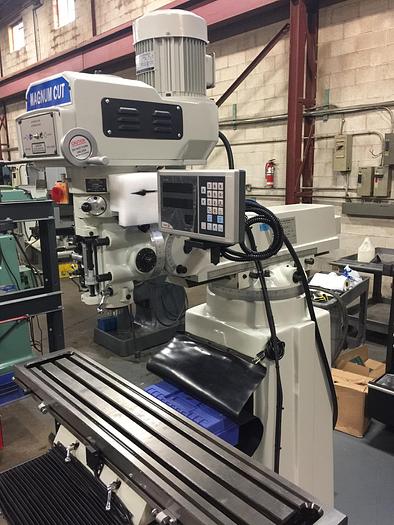

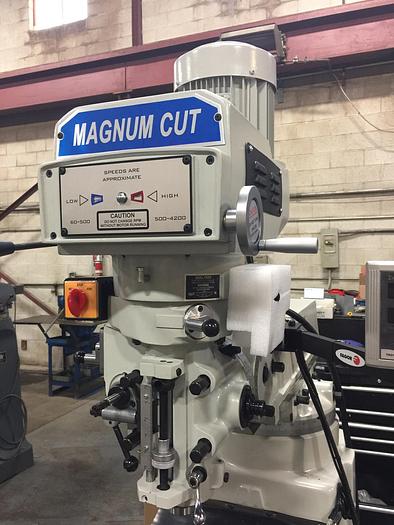

10" X 54", NEW, MAGNUM-CUT 3VS, VERTICAL MILLING MACHINE
Specifications
| Manufacturer | MAGNUM-CUT |
| Model | 3VS |
| Stock Number | 3477 |
| TABLE SIZE | 10" X 54" |
| LONGITUDINAL TRAVEL | 37" |
| CROSS TRAVEL (SQUARE CROSSWAYS) | 17" |
| VERTICAL TRAVEL OF KNEE | 16.5" |
| SPINDLE TAPER | R8 |
| SPINDLE SPEEDS (VARIABLE) | 60 - 4000 RPM |
| QUILL TRAVEL | 5" |
| SPINDLE MOTOR | 3 HP |
| ELECTRICS | 575V/3/60 |
| NET WEIGHT | 2,650 LBS. |
Equipped With
STANDARD EQUIPMENT: ====================== HARDENED & GROUND TABLE SURFACE HARDENED & GROUND SQUARE CROSS WAYS MEEHANITE CASTINGS ONE SHOT LUBRICATION SYSTEM INSTRUCTION MANUAL & SPARE PARTS LIST, TOOL BOX ELECTRICS, 575V/3/60 WITH REVERSING SWITCH & MAGNETIC STARTER (CSA)
OPTIONAL EQUIPMENT: =====================

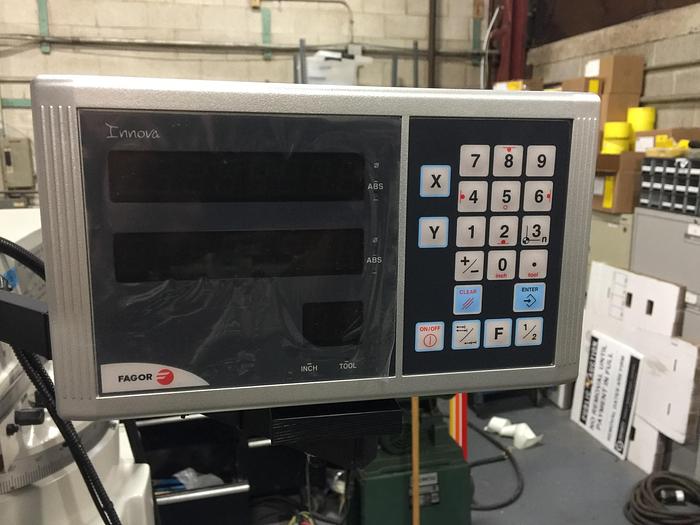

FAGOR 2-AXIS DIGITAL READOUT SYSTEM INSTALLED - $ 2,550.00 FAGOR 3-AXIS DIGITAL READOUT SYSTEM INSTALLED - $ 3,780.00
ELECTRICAL BOX W/ 575V TRANSFORMER FOR 3 OR MORE 120V ACCESSORIES - $1,450.00 ALIGN POWERFEED FOR LONGITUDINAL TRAVEL , DECREASES TRAVEL 2" - $ 820.00 ALIGN POWERFFED FOR CROSS TRAVEL - $ 950.00 ALIGN KNEE LIFT SERVO FOR VERTICAL - $ 950.00
ALIGN AIR OPERATED POWER DRAWBAR - $ 1,150.00 MACHINE VISE 6" WITH SWIVEL BASE, ANGLE-LOC TYPE - $ 425.00 R-8 COLLET SET - $ 290.00 CLAMPING KIT 58 PC - $ 170.00 COOLANT SYSTEM - $ 950.00
WARRANTY:
========== PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship. LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of Our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers' responsibility.
