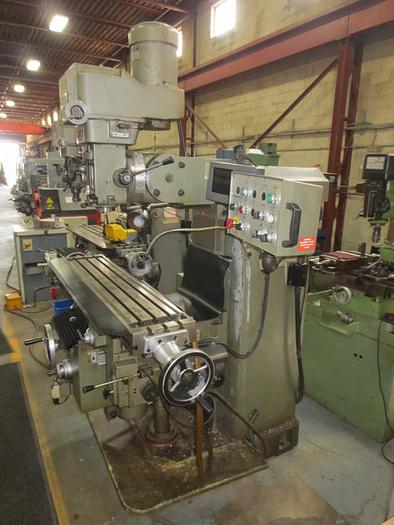

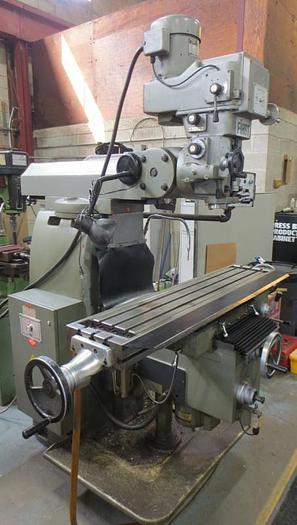

10" X 50", FIRST, LC20-VSG, VERTICAL MILLING MACHINE

orCall (905) 669-7507

Specifications

ManufacturerFIRST
ModelLC20-VSG
Stock Number3913
TABLE SIZE10" X 50"
TRAVEL X AXIS31"
TRAVEL Y AXIS16.5"
TRAVEL Z AXIS (KNEE)16.5"
FEED RATE X AXIS0.086 - 27"/MIN
RAPID X AXIS82.6"/ MIN
SPINDLE SPEEDS60 - 4500 RPM
SPINDLE TAPER#40
SPINDLE TRAVEL5"
SPINDLE MOTOR5 HP
ELECTRICS575V/3PH/60CY
APPROX. WEIGHT3,400 LBS.

Equipped With

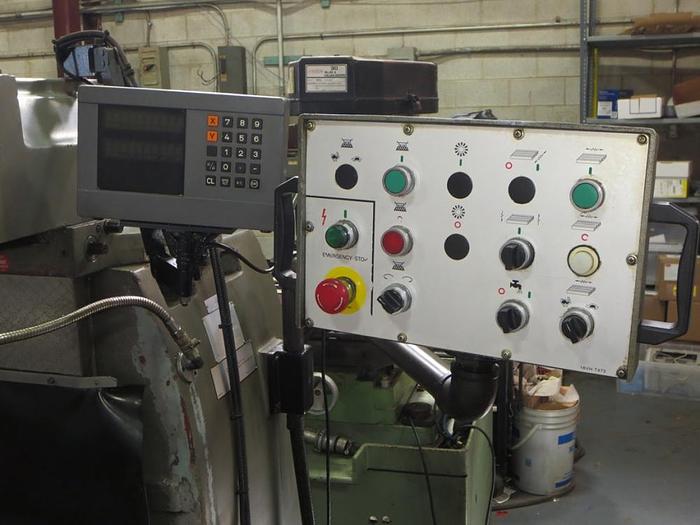

2-AXIS HEIDENHAIN DIGITAL READOUT POWERFEED ON X-AXIS RAPID FEED ON Z-AXIS PENDANT CONTROL ONE SHOT LUBRICATION
