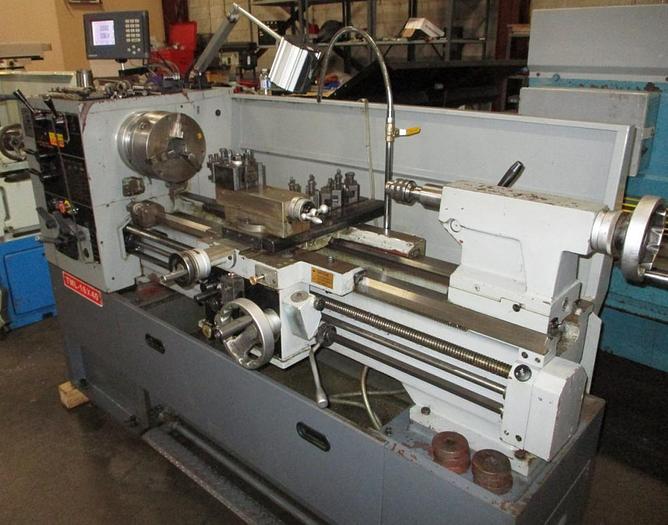

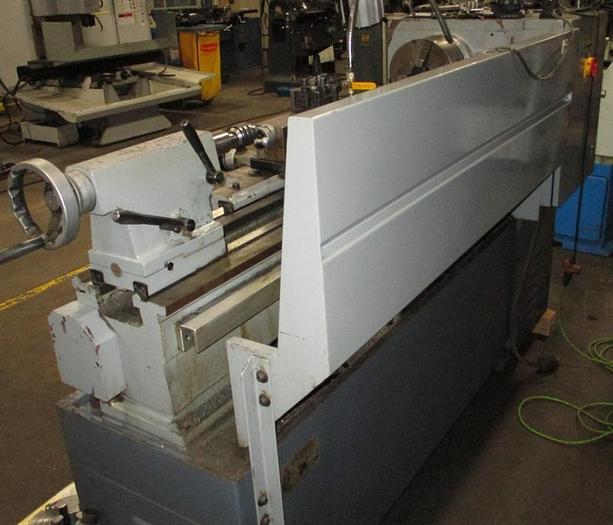

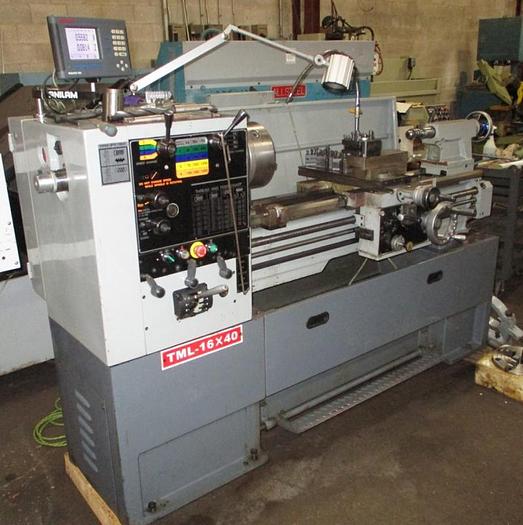

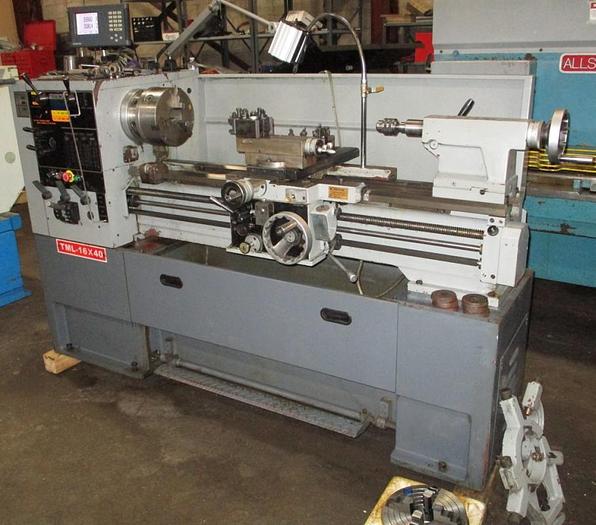

2003 SUNMASTER TML-16X40
Sold
Specifications
| Manufacturer | SUNMASTER |
| Model | TML-16X40 |
| Year | 2003 |
| Stock Number | 3988 |
| SWING OVER BED | 16.14" |
| SWING IN GAP | 22.95" |
| SWING OVER CROSS SLIDE | 10.39" |
| DISTANCE BETWEEN CENTERS | 40" |
| WIDTH OF BED | 10.23" |
| SPINDLE NOSE, INTERNAL TAPER | D1-6 |
| SPINDLE BORE | 2.06" |

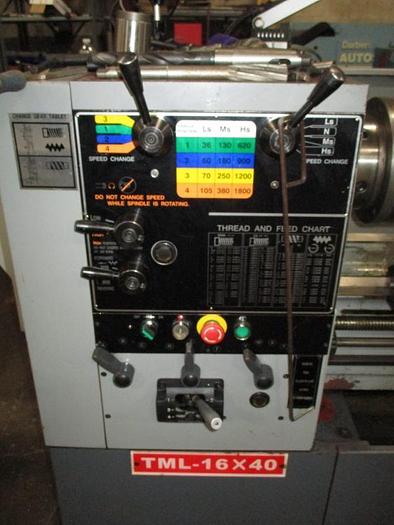

| SPINDLE SPEED RANGE | 36 - 1800 RPM |
| CROSS SLIDE TRAVEL | 8.6" |
| TOP SLIDE TRAVEL | 5.5" |
| QUILL TRAVEL ON TAILSTOCK | 6" |
| TAPER OF CENTER | MT. NO. 4 |
| MAIN SPINDLE MOTOR | 7.5 HP |
| ELECTRICS | 600V/3/60 |
| APPROX. WEIGHT | 3,600 LBS. |
Equipped With

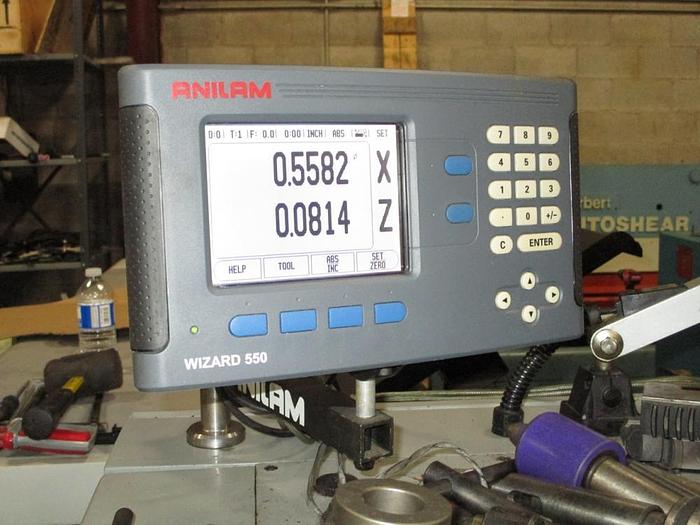

ANILAM 2-AXIS DIGITAL READOUT

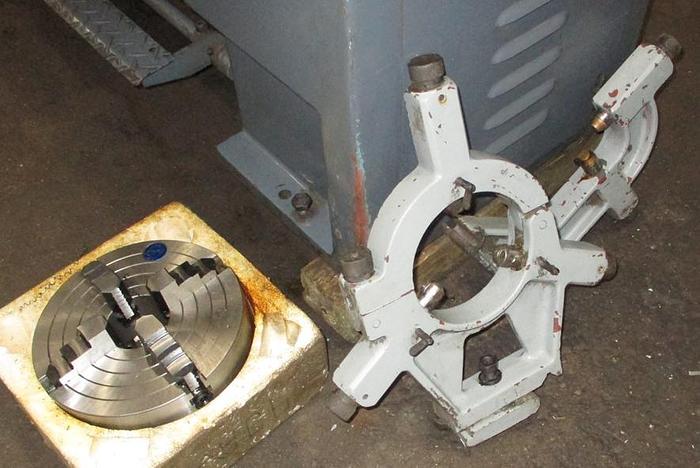

STEADY & FOLLOW REST
9" 3-JAW CHUCK
10" 4-JAW CHUCK

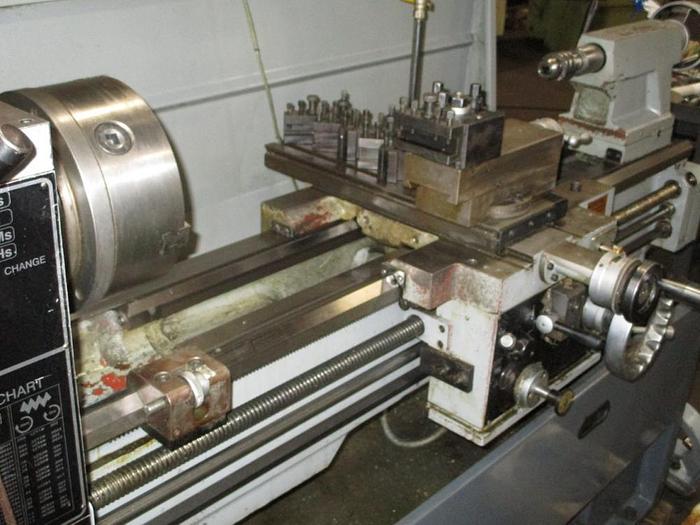

QUICK CHANGE TOOLPOST W/ 6 HOLDERS
MISC. TOOLING
COOLANT
FOOTBRAKE
INCH/METRIC THREADING
REAR SPLASH GUARD
