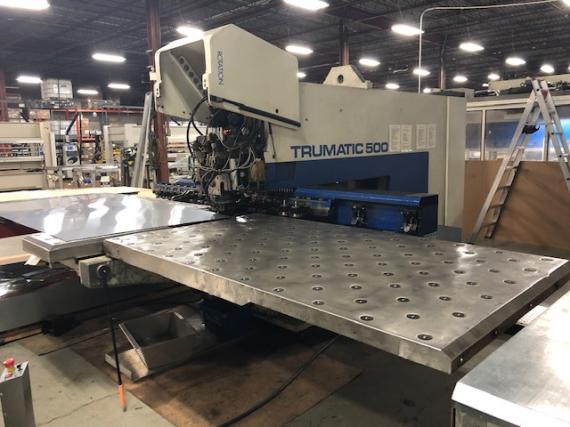

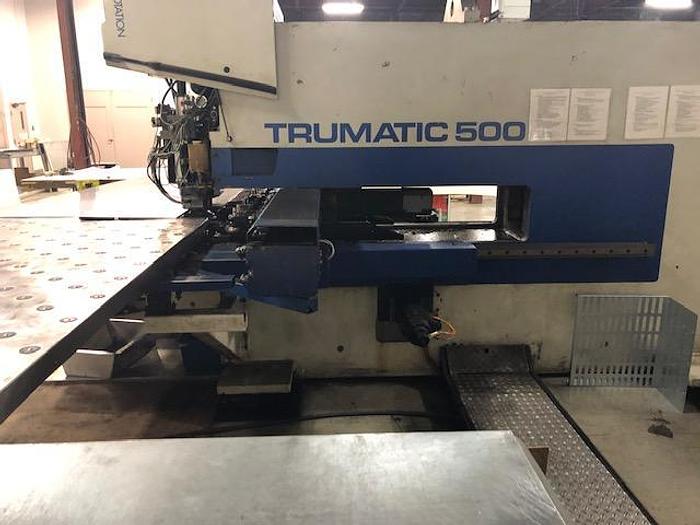

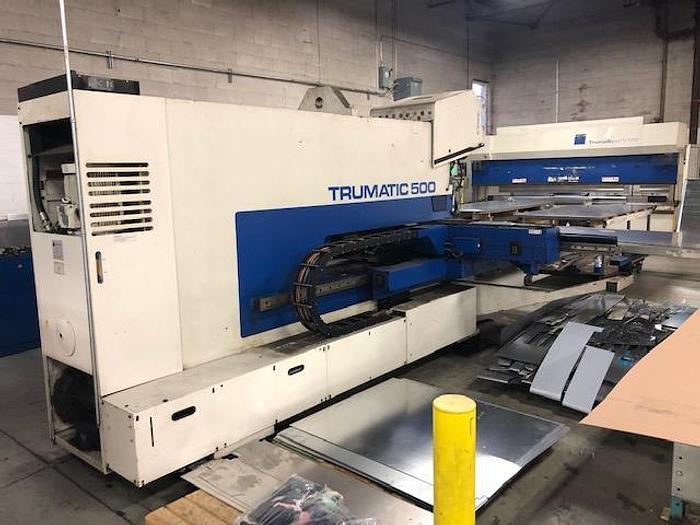

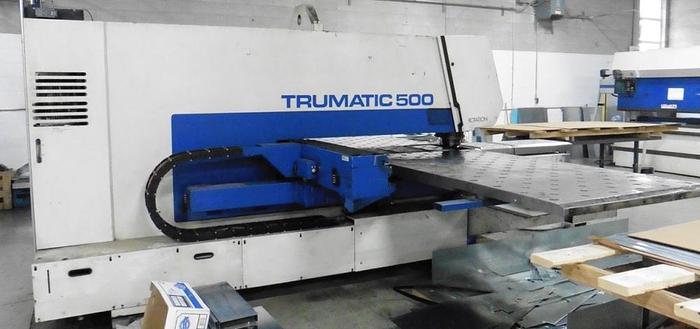

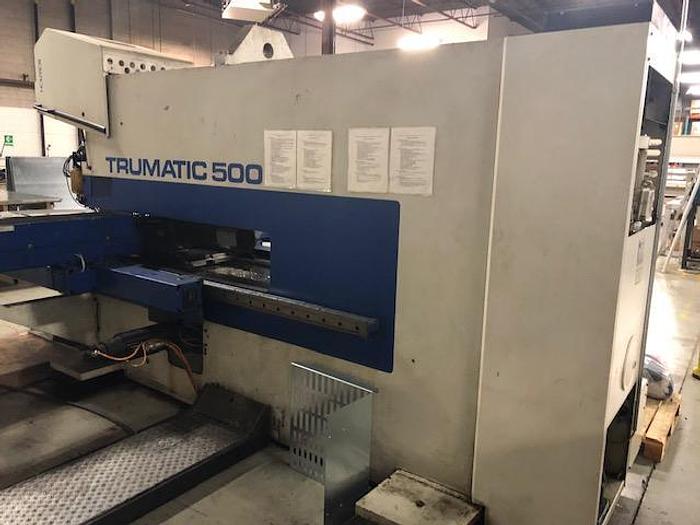

25 TON, TRUMPF TC-500 / 1300, 1995, CNC TURRET PUNCH

orCall (905) 669-7507

Specifications

ManufacturerTRUMPF
ModelTC-500 / 1300
Year1995
Stock Number3957
TONNAGE25
MAX. SHEET THICKNESS0.31"
MAX. SHEET SIZE52" x 100"
Y-AXIS TRAVEL50"
X-AXIS TRAVEL100"
MAX. WORKPIECE WEIGHT330 LBS
MAX. PUNCH DIA.3"
MAX. STROKES PER MINUTE300 (1" MOVES)
MAX. STROKES PER MINUTE ON CONTOURS600
MAX. LINEAR TABLE SPEED4300 IPM
MAX. X-AXIS SPEED3545 IPM
MAX. Y-AXIS SPEED2362 IPM
MAX. DISTANCE BENEATH STRIPPER1.5"
APPROX. OVERALL DIMENSIONS280" L-R x 230" F-B x 95" H
APPROX. WEIGHT25,000 LBS

Equipped With

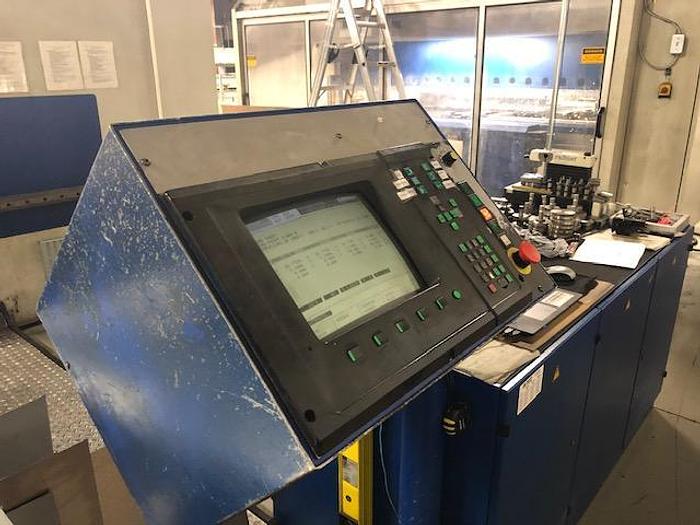

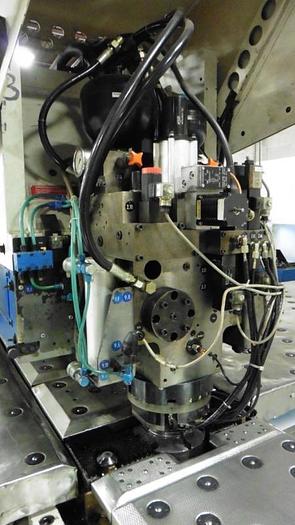

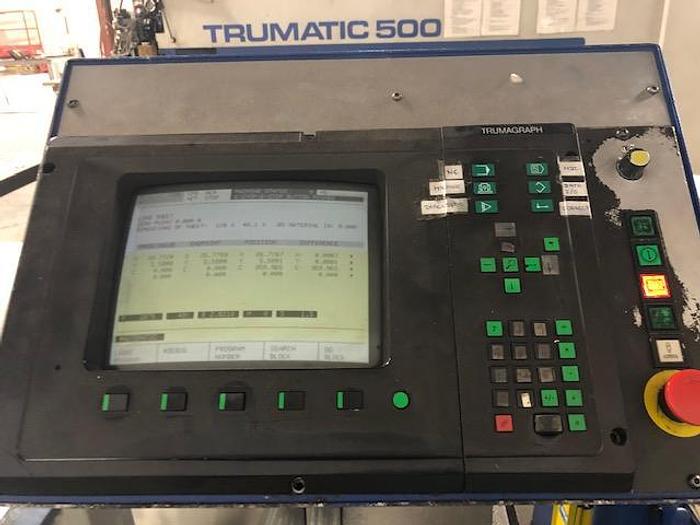

-BOSH TRUMAGRAPH CNC CONTROL WITH CRT -PROGRAMMABLE TOOL ROTATION - (18) STATION LINEAR AUTO. TOOL CHANGER - FULL SET OF CARTRIDGES - HYDRAULICALLY DRIVEN RAM - PROGRAMMABLE STROKE CONTROL - AC MAIN DRIVE MOTOR - SEPERATE, FREE STANDING CONTROL UNIT
