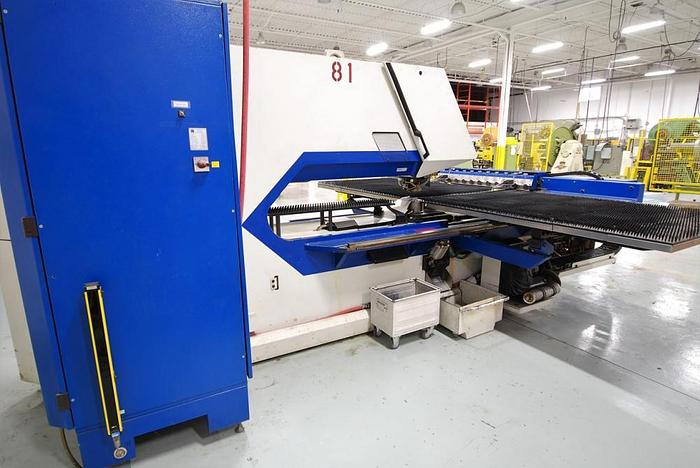

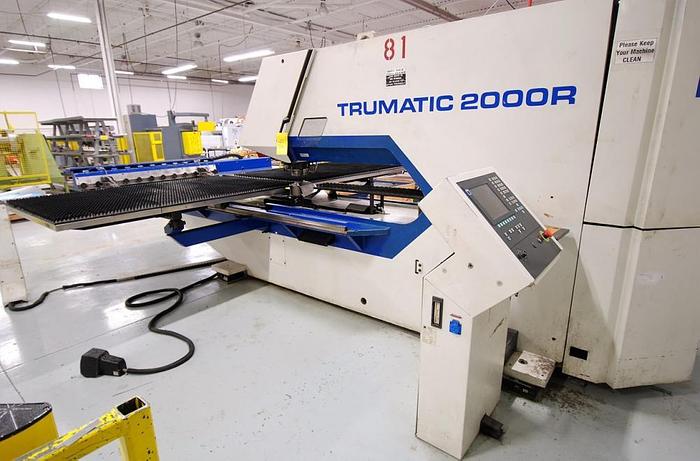

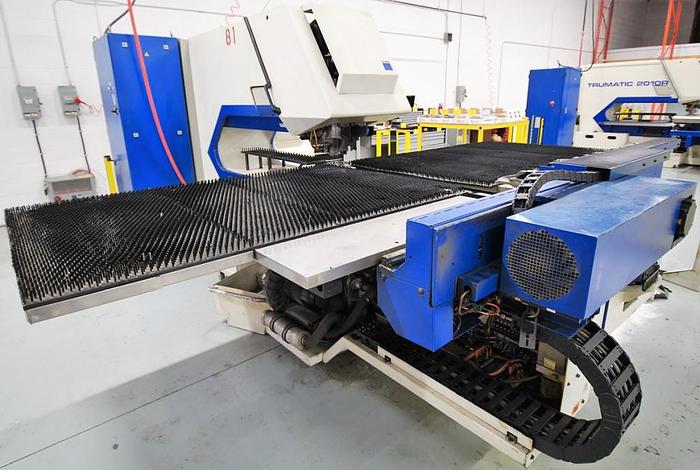

22 TON, TRUMPF TC2000R, 1999, CNC TURRET PUNCH
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | TC2000R |
| Year | 1999 |
| Stock Number | 3886 |
| MAXIMUM TONNAGE CAPACITY | 22 TONS |
| TABLE TRAVEL | 50" x 50" ( 50" x 100" W Repo) |
| MAXIMUM SHEET THICKNESS | 1/4" |
| MAXIMUM PUNCH DIAMETER | 3" |
| LINEAR TABLE SPEED | 3,600 RPM |
| STROKES/MINUTE (PITCH .040") | 900 1/MIN |
| STROKES/MINUTE (PITCH 1.00") | 420 1/MIN |
| C-AXIS | 3-REV S/SEC |
| ROTATION OF ALL TOOLS | 360 DEGREES |
| TOOL CHANGE TIME | .9-3.5 SCS |
| MACHINE WEIGHT | 20 240 LBS |
Equipped With

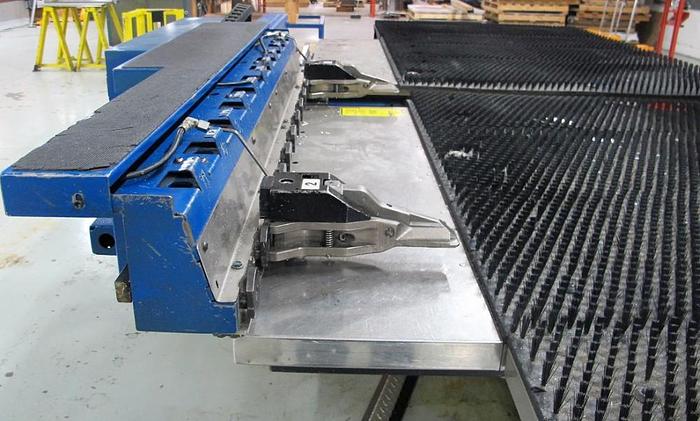

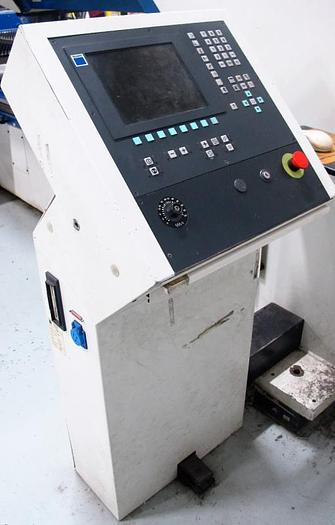

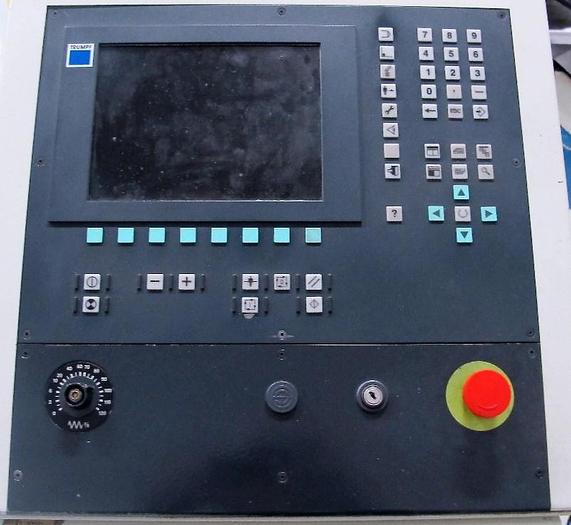

BOSCH TYPE 3 CNC CONTROL 9-STATION AUTOMATIC TOOL CHANGER ON X-AXIS RAIL PROGRAMMABLE TOOL ROTATION BRUSH TABLES EXTENSION TABLES
