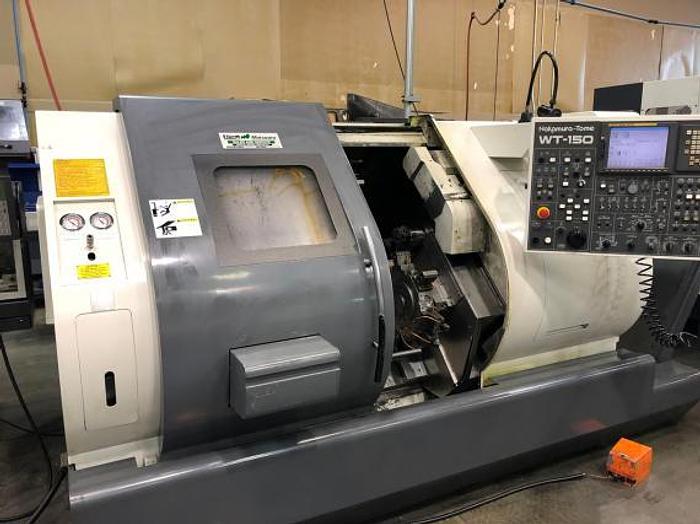

NAKAMURA-TOME, WT-150, 2005, CNC LATHE, W/ LIVE TOOL
No longer available
Specifications
| Manufacturer | NAKAMURA-TOME |
| Model | WT-150 |
| Year | 2005 |
| Stock Number | 3982 |
| DISTANCE BETWEEN SPINDLE CENTERS | 29.528" |
| SPINDLE NOSE | A2-5 |
| SPINDLE BORE | 2.48" |
| MAX. BAR CAPACITY | 2.047" |
| SPINDLE SPEEDS | 5000 RPM |
| SPINDLE INDEX | FULL C-AXIS ( .001 DEG) LEFT & |
| MAX. WORKPIECE SWING DIAMETER | 7.488" |
| MAX. TURNING LENGTH | 19.8" |
| TURRET CAPACITY | (2) 12 STN. TURRETS ALL LIVE |
| ROTARY TOOL SPEED | 6000 RPM |
| SLIDE TRAVEL - X1/X2 | 6.5" / 6.5" |
| LIVE MILLING SPEEDS | 6000 RPM |
| SLIDE TRAVEL Z1/Z2/B | 20.27" / 20.27" / 23.62" |
| TURRET 1 TRAVELS - ( X/Z ) | 6.201" / 18.3" |
| TURRET 2 TRAVELS - ( X/Z ) | 6.59" / 18.3" |
| RAPID TRAVERS RATES - X / Z | 629.9 IPM / 1,574 IPM |
| SPINDLE DRIVES | 20 HP - LEFT / 15 HP -RIGHT |
| ROTARY TOOL DRIVES | 7.5 HP |
Equipped With
FANUC 18i-TB CNC CONTROL
ALL STATIONS LIVE MILLING CAPABLE
LARGE ASSORTMENT OF TOOLING, LIVE HOLDERS
LNS BARFEEDER
CHIP CONVEYOR
