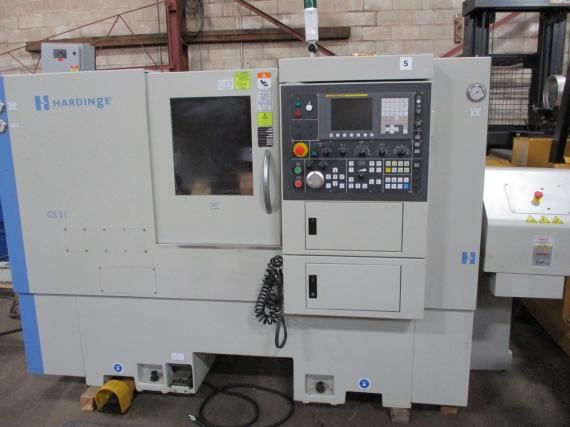

HARDINGE, 2013, GS-51MS, CNC LATHE
No longer available
Specifications
| Manufacturer | HARDINGE |
| Model | GS-51MS |
| Year | 2013 |
| Stock Number | 3803 |
| INSTALLED NEW | 2013 |
| SWING | 18" |
| MAX. MACHINING DIAMETER | 11.1" |
| MAX. MACHINING LENGTH | 16" |
| BAR CAPACITY | 2" |
| X-AXIS TRAVEL | 5.74" |
| Z-AXIS TRAVEL | 15.98" |
| RAPID TRAVERSE ( X/Z ) | 1,181 IPM |
| MAIN SPINDLE SPEED | 5,000 RPM |
| SUB SPINDLE SPEED | 6,000 RPM |
| MAIN MOTOR | 24.7 HP |
| TURRET CAPACITY | 12 |
| TURRET TOOLING TYPE | BMT45 |
| TAILSTOCK | NO |
| LIVE TOOLING | YES |
| LIVE TOOLING MAX. SPEED | 5,000 RPM |
| SUB-SPINDLE | YES |
| # AXES | 4 |
| APPROX. MACHINE WEIGHT | 7,400 LBS. |
Equipped With
* MACHINE HOURS: 6,500 HRS. FANUC Oi-TD CNC CONTROL MACHINE GUIDE Oi ( PROGRAM ASSIST ) BARFEED INTERFACE ( NO BARFEED ) RIGID TAPPING CUSTOM MACRO B PCMICA FLASH SLOT 16C COLLET ADAPTOR ( SUBSPINDLE) COLLET READY MAIN SPINDLE MILLING PARTS CATCHER WITH CONVEYOR C-AXIS CHIP CONVEYOR COOLANT SYSTEM
