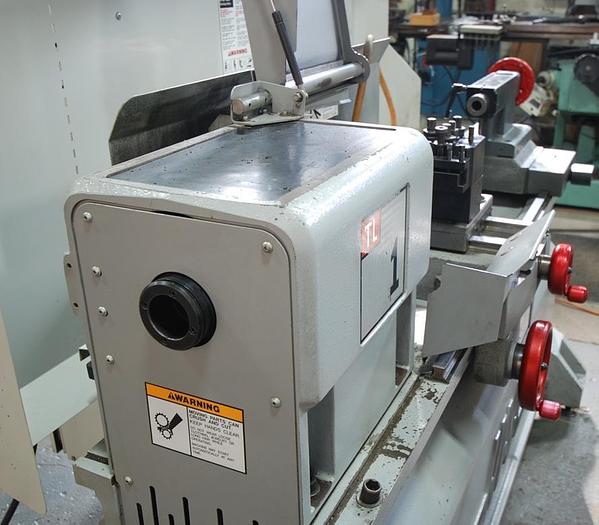

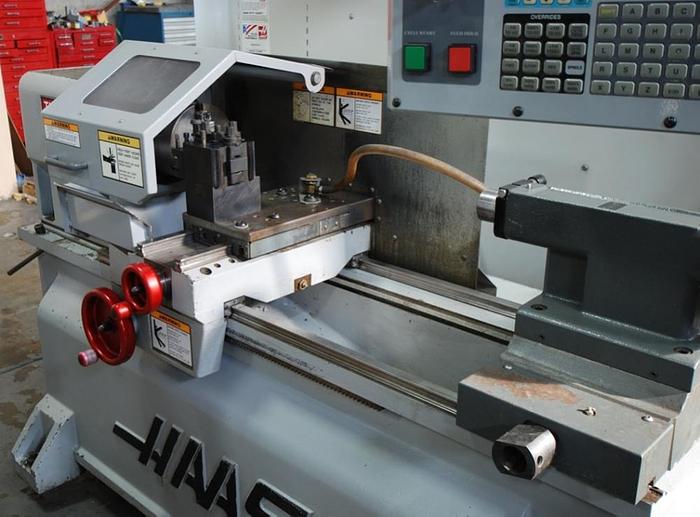

2005 HAAS TL-1
Sold
Specifications
| Manufacturer | HAAS |
| Model | TL-1 |
| Year | 2005 |
| Stock Number | 3999 |
| MAX. SWING OVER BED | 16" |
| MAX. SWING OVER CROSS SLIDE | 8.5" |
| MAX. CUTTING DIAMETER | 16" |
| MAX. MACHINING LENGTH | 30" |
| X-AXIS TRAVEL | 8" |
| Z-AXIS TRAVEL | 30" |
| SPINDLE MOTOR | 7.5 HP |
| SPINDLE SPEED | 1,200 RPM |
| SPINDLE NOSE | A2-5" |
| SPINDLE BORE | 2.31" |
| RAPID TRAVERSE X,Y | 75 IPM / 150 IPM |
| TAISTOCK CENTER | # 3 MT |
| APPROX. MACHINE WEIGHT | 4,000 LBS. |
Equipped With
8" 3-JAW CHUCK
COOLANT PUMP SYSTEM
TAILSTOCK
CHUCK COVER PLATE
