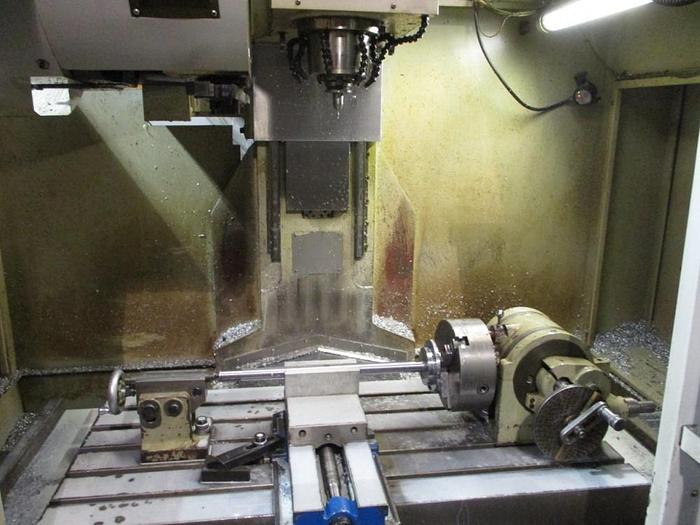

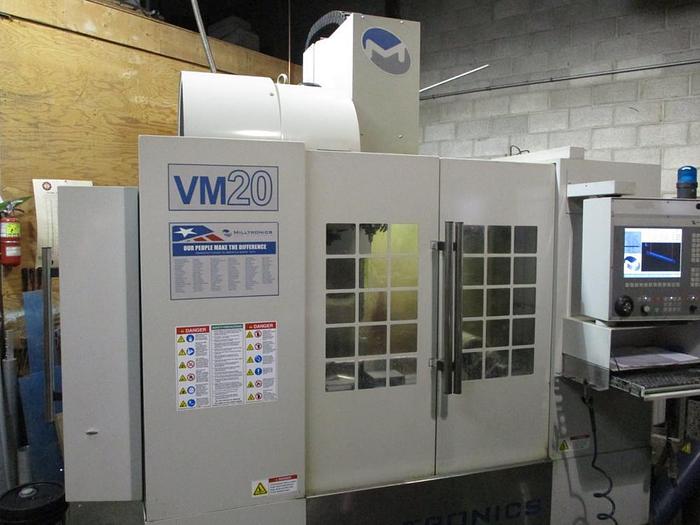

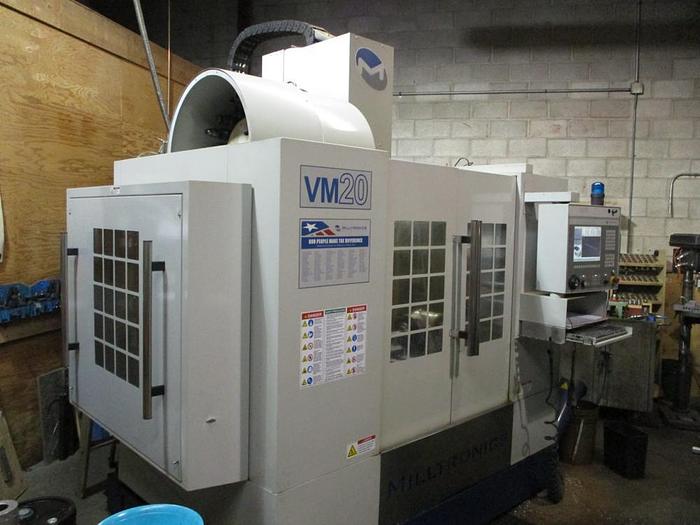

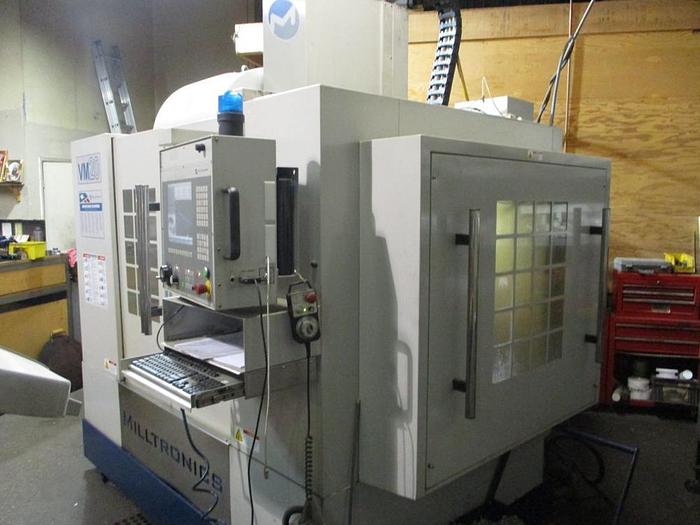

2008 MILLTRONICS VM20
Sold
Specifications
| Manufacturer | MILLTRONICS |
| Model | VM20 |
| Year | 2008 |
| Stock Number | 3965 |
| TABLE AREA | 34" X 20" |
| X-AXIS TRAVEL | 40" |
| Y-AXIS TRAVEL | 20" |
| Z-AXIS TRAVEL | 26" |
| SPINDLE SPEED | 8,000 RPM |
| SPINDLE TAPER | BT 40 |
| THROAT DISTANCE SPINDLE TO COLUMN | 21" |
| SPINDLE TO TABLE TOP | 4" - 30" |
| MAX. TABLE LOAD | 2,000 LBS. |
| APPROX. MACHINE WEIGHT | 10,000 LBS. |
| BALL SCREW DIAMETER - X,Y,Z | 1.25" |
| LINEAR WAY TYPE & SIZE | 35 MM BALL |
Equipped With

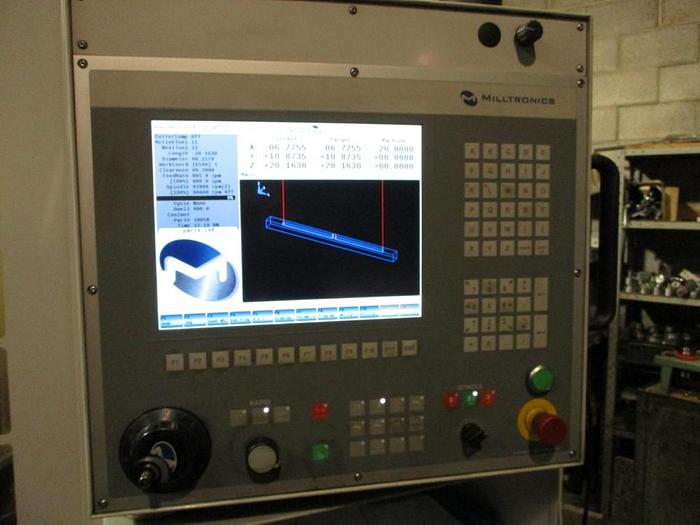

8200 SERIES CNC CONTROL RENISHAW PROBE & STYLUS FULL SET OF TOOL HOLDERS FLOOD COOLANT CHIP AUGER 24 SIDEMOUNT ATC PENDANT CONTROL
