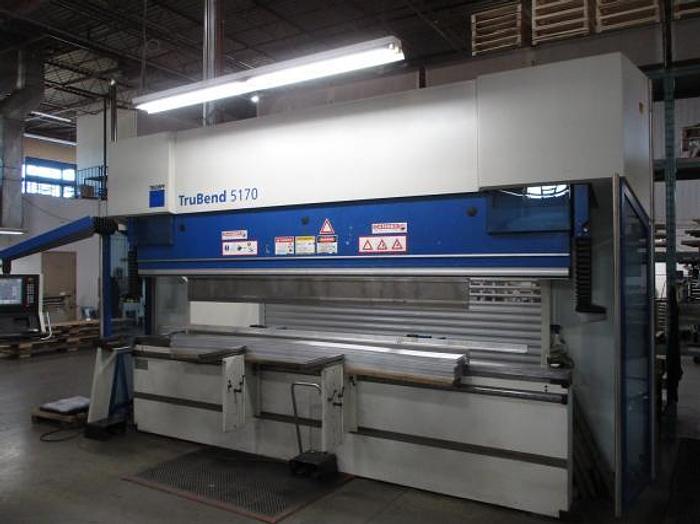

187 TON X 13'11", 2007 TRUMPF TRUBEND 5170S, CNC PRESS BRAKE
No longer available
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 5170S |
| Year | 2007 |
| Stock Number | 3992 |
| TONNAGE | 187 |
| MAXIMUM BENDING LENGTH | 167' |
| DISTANCE BETWEEN HOUSING | 145" |
| OPEN HEIGHT | 24.2" |
| STROKE | 17.51" |
| THROAT | 16.5" |
| Y-AXIS RAPID TRAVERSE | 520 IPM |
| WORKING SPEED | 23.5" IPM |
| RETURN RAPID TRAVERSE | 520 IPM |
| X & Z AXES | 2363 IPM |
| R AXIS | 780 IPM |
| APPROX DIMENSIONS | 206" x 73" x 118" H |
| WEIGHT | 35 280 LBS |
Equipped With
TRUMPF TASC 6000 8 AXIS 3D VISUALISATION CONTROL 6 -AXIS CNC BACK GAUGE( R1,R2,X1,X2,Z1,Z2) EXTENDED OPEN HEIGHT -24.2" EXTENDED STROKE 17.5" WILA NEW STANDARD UPPER & LOWER CLAMPING CNC CROWNING LAZERSAFE LASER CURTAINS ADDITIONAL FOOT SWITCH ACB PREP 2 MANUAL FRONT SUPPORTS ON RAILS THIS MACHINE CAN BE VIEWED UNDER POWER IN A CUSTOM FABRICATION PLANT. THIS MACHINE IS IN EXCELLENT CONDITION WITH LOW HOURS.
