5000 WATT, 6' X 12', CINCINNATI, 2022, CNC FIBER LASER
Specifications
| Manufacturer | CINCINNATI |
| Model | CL-950 |
| Year | 2022 |
| Stock Number | 4492 |
| POWER | 5000 WATT |
| MAX. SHEET SIZE | 78.75" X 157.5" |
| RAPID TRAVERSE - X & Y | 12,020 IPM |
Equipped With

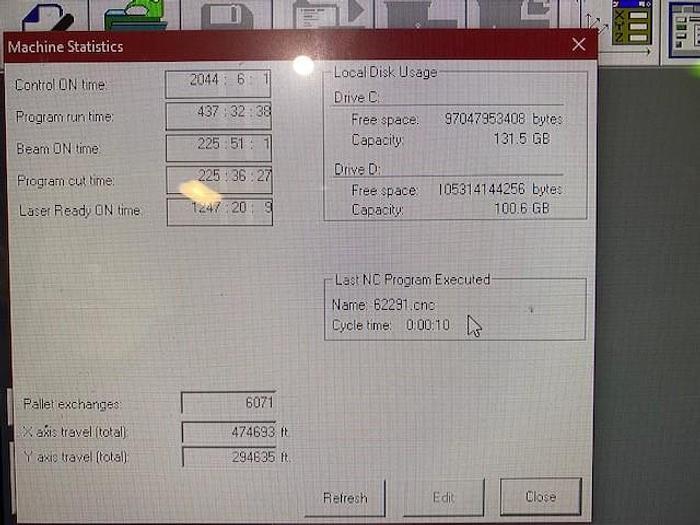

** VERY LOW CUTTING HOURS
+/- .001" ABSOLUTE POSITIONING ( X & Y AXIS ), .001" ABSOLUTE REPEATABILITY ( X & Y AXIS )
AUTOFOCUS (FIBERCUT) NON-CONTACT CUTTING HEAD WITH BREAKAWAY NOZZLE ASSEMBLY
DUAL PALLET CUTTING TABLES
AC BRUSHLESS PERMANENT-MAGNET LINEAR MOTORS (X & Y AXIS)
FAST SETUP FEATURES: DYNAMIC POWER CONTROL, CI TOUCH SCREEN CONTROL W/ WINDOWS OPERATING SYSTEM & NETWORK INTERFACE
EDGE OF SHEET DETECTION
CI HEIGHT SENSING SYSTEM W/PLASMA SENSING CAPABILITES
LOW MAINTENANCE RESONATOR & MACHINE FEATURES: FLEXIBLE OPTICAL FIBER BEAM DELIVERY, HIGH-EFFICIENCY SOLID STATE FIBER ENGINE, NO GAS BLOWERS, NO RESONATOR GLASSWARE, NO INTERNAL MIRRORS
PRE-LOADED EXTENDED LUBE INTERVAL LINEAR BEARINGS
AUTOMATIC NOZZLE CHANGER
LOWER PALLET SPECIAL FUNCTION ( " BOX CUTTING " )
