2007 AMADA EMK 3510 NT FULL ELECTRIC CNC PUNCH WITH LOAD /UNLOAD MATERIAL STORAGE TOWER
orCall (905) 669-7507
Specifications
| Manufacturer | AMADA |
| Model | EMK 3510 NT FULL ELECTRIC CNC PUNCH WITH LOAD /UNLOAD MATERIAL STORAGE TOWER |
| Year | 2007 |
| Stock Number | 4481 |
| TONNAGE | 33 TONS |
| AXIS TRAVELS | 98.4" X AXIS 50" YAXIS |
| MAXIMUM SHEET SIZE (WITH ONE REPOSITION ) | 196.85" x 50" |
| MAXIMUM SHEET WEIGHTS | 110 LBS (F1 SPEED) 330 LBS (F4 SPEED) |
| FEED CLEARANCE | 0.984" |
| STROKE LENGTH | 1.45" |
| MAXIMUM SHEET THICKNESS | 0.187" |
| TABLE AXIS SPEED | X AXIS 3937" /MIN Y AXIS 3150" /MIN |
| TURRET ROTATION SPEED | 30SPM |
| PUNCHING HIT RATES | 500 HPM (0.197" STROKE & 1" PITCH) 780 SPM(0.197" STROKE & 0.039" PITCH)1800 SPM (0.080" PITCH MARKING |
| NIBBLING RATE | X 745 HPM / Y 410 HPM |
| MARKING RATE | (0.197" PITCH 0.055"STROKE) 1800HPM |
| TURRET | 58 STATION 4 AUTO INDEX ( 2" X 1/1/4" & 2 41/2") |
| ELECTRICAL POWER | 220/208 VOLT /3 PHASE |
| MACHINE WEIGHT | 40 700 LBS |
Equipped With
Amada AMNC-NT control
Brush Table

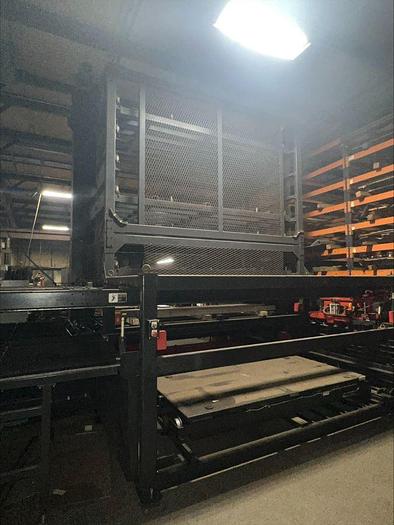

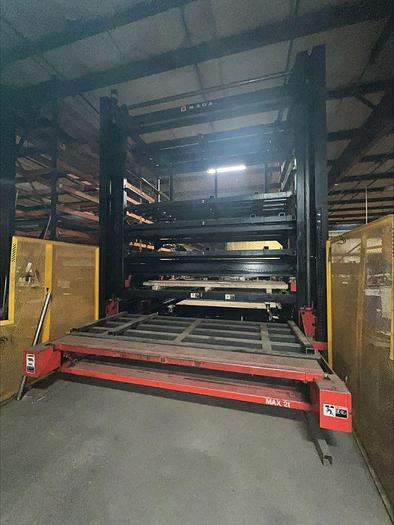

Amada Load/unload system and material storage tower
