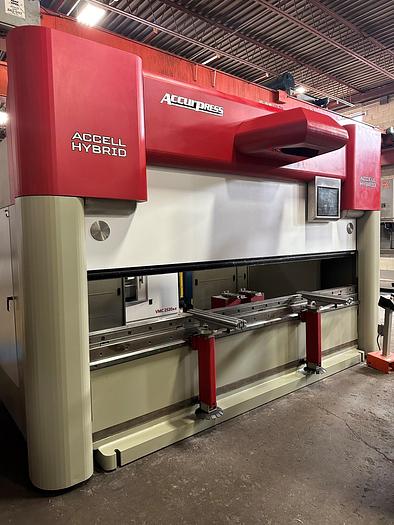

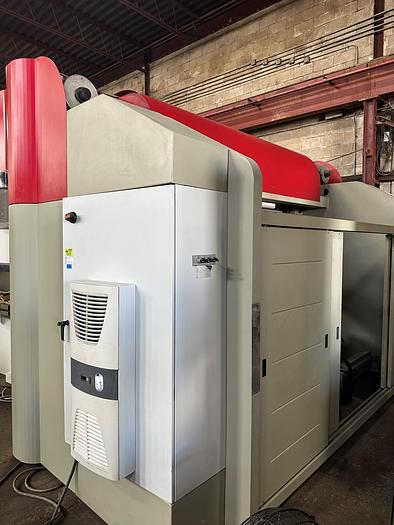

190 TON X 12, ACCURPRESS, 2017, ACCELL HYBRID, CNC PRESS BRAKE
Sold
Specifications
| Manufacturer | ACCURPRESS |
| Model | ACCELL HYBRID |
| Year | 2017 |
| Stock Number | 4464 |
| BENDING CAPACITY | 190 TONS |
| OVERALL BENDING LENGTH | 144" |
| DISTANCE BETWEEN FRAMES | 130" |
| STROKE | 11" |
| RAM OPEN HEIGHT | 19" |
| RAM CLOSED HEIGHT | 8" |
| TOP BED WIDTH | 5.75" |
| BED HEIGHT | 34" |
| APPROX. WEIGHT | 33,000 LBS. |
| APPROX. OVERALL DIMENSIONS | 175" L-R x 80" F-B x 116" TALL |
Equipped With
ACCURPRESS CNC VISION CONTROL

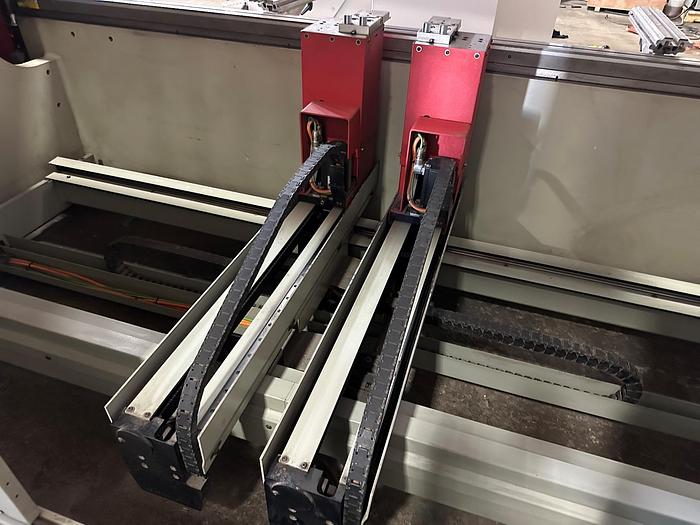

6-AXIS - SUPREME BACKGAUGE, X, Y1/Y2, R, Z1/Z2, PLUS CNC CROWNING
SUPREME SPECIFICATIONS: X-AXIS TRAVEL 39", R-AXIS TRAVEL 10", Z1/Z2-AXIS TRAVEL DISTANCE BETWEEN SIDE FRAMES MINUS 24", POSITIONING SPEED 1,500 IPM X/R/Z
TOP & BOTTOM NEW STANDARD WILA HYDRAULIC CLAMPING
FIESSLER SAFETY LASER LIGHT SYSTEM
PRECISION FRONT SUPPORT ARMS
FOOT PEDESTAL CONTROL
SIDE & REAR SAFETY GUARDING
