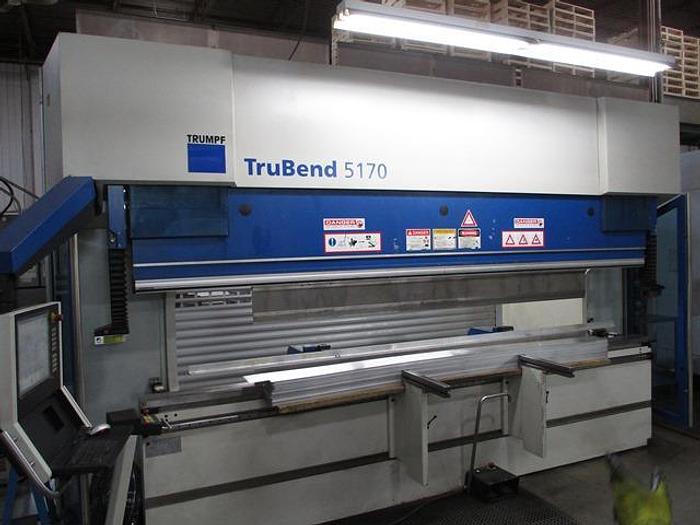

2007 TRUMPF TRUBEND 5170S
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 5170S |
| Year | 2007 |
| Stock Number | 3992 |
| Tonnage | 187 |
| Maximum bending length | 167' |
| Distance between housing | 145" |
| Open height | 24.2" |
| Stroke | 17.51" |
| Throat | 16.5" |
| Y-axis rapid traverse | 520 IPM |
| Working speed | 23.5" IPM |
| Return rapid traverse | 520 IPM |
| X & z axes | 2363 IPM |
| R axis | 780 IPM |
| Approx dimensions | 206" x 73" x 118" H |
| Weight | 35 280 LBS |
Equipped With
Equipped with:

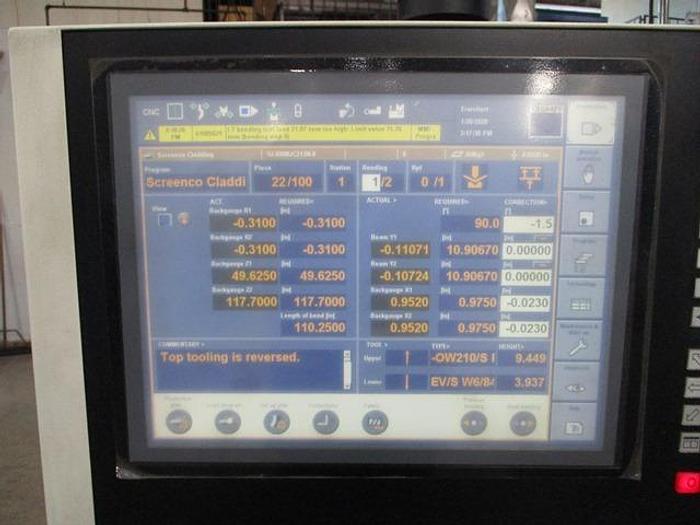

TRUMPF TASC 6000 8 AXIS 3D VISUALISATION CONTROL
6 -AXIS CNC BACK GAUGE( R1,R2,X1,X2,Z1,Z20)
EXTENDED OPEN HEIGHT -24.2"
EXTENDED STROKE 17.5"
WILA NEW STANDARD UPPER & LOWER CLAMPING
CNC CROWNING
LAZERSAFE LASER CURTAINS

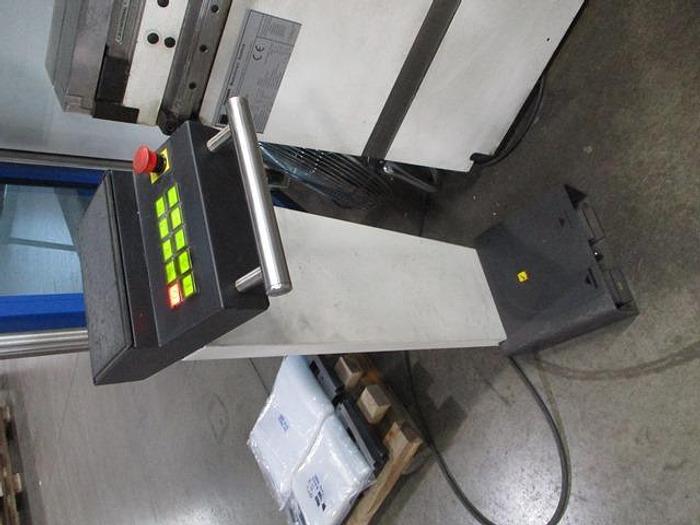

ADDITIONAL FOOT SWITCH
ACB PREP
2 MANUAL FRONT SUPPORTS ON RAILS
THIS MACHINE CAN BE VIEWED UNDER POWER IN A CUSTOM FABRICATION PLANT.
THIS MACHINE IS IN EXCELLENT CONDITION WITH LOW HOURS.
