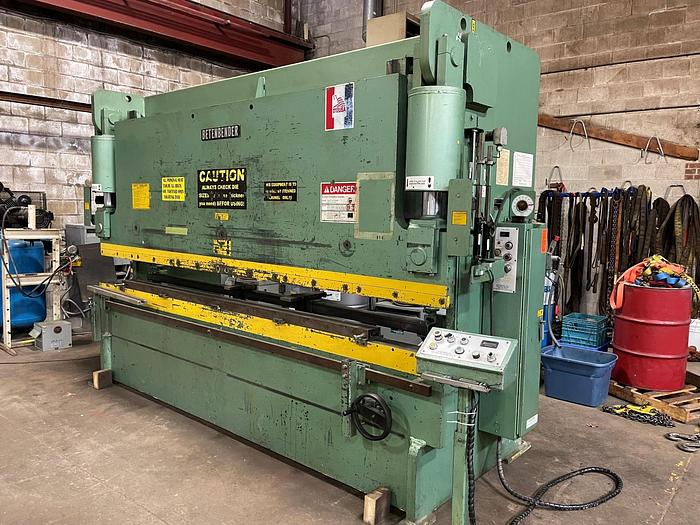

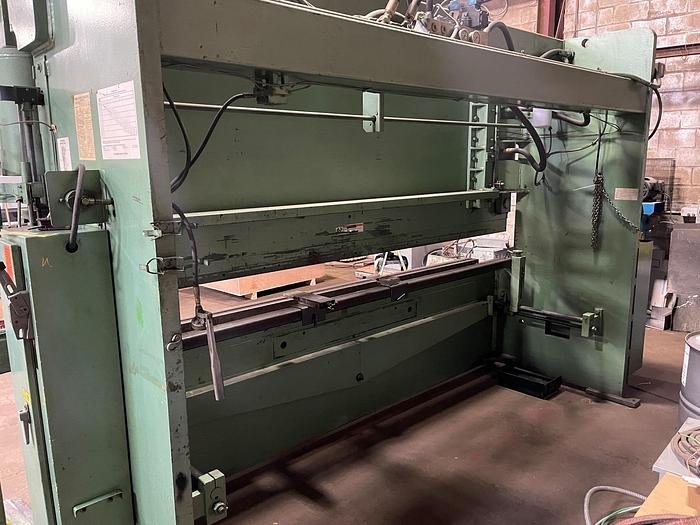

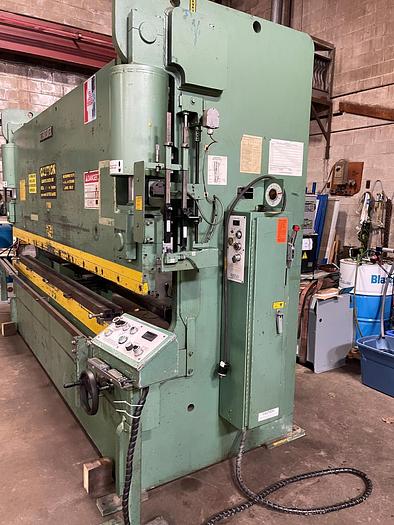

190 TON X 12' BETENBENDER HYDRAULIC PRESS BRAKE
Sold
Specifications
| Manufacturer | BETENBENDER |
| Model | 190-12 |
| Stock Number | 4443 |
| CAPACITY | 190 TON |
| OVERALL BENDING LENGTH | 12' |
| DISTANCE BETWEEN FRAMES | 10'6" |
| OPEN HEIGHT | 14" |
| STROKE | 8" |
| CLOSED HEIGHT | 6" |
| MOTOR | 20 HP |
| ELECTRICS | 600V/3/60 |
| APPROX. WEIGHT | 25,000 LBS. |
| THROAT DEPTH | 8" |
| HEIGHT OF BED | 37" |
| PRESS SPEED | 25 IPM |
| RAPID APPROACH SPEED | 55 IPM |
| RETURN TO OPEN SPEED | 66 IPM |
| APPROX. OVERALL DIMENSIONS | 159"L X 56-1/2"D X 103" TALL |
Equipped With

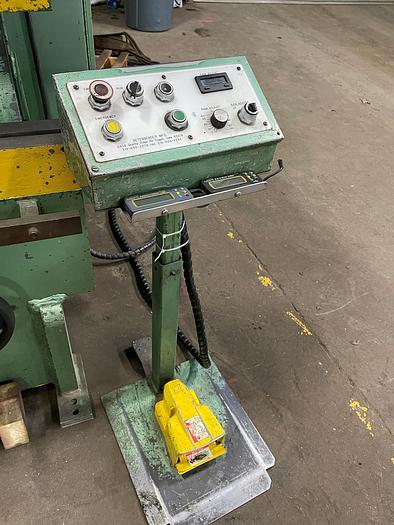

FOOT PEDESTAL CONTROL- UP/DOWN BUTTONS, RUN/JOG SELECTOR SWITCH, RAM ADJUST
WITH DIGITAL DISPLAY

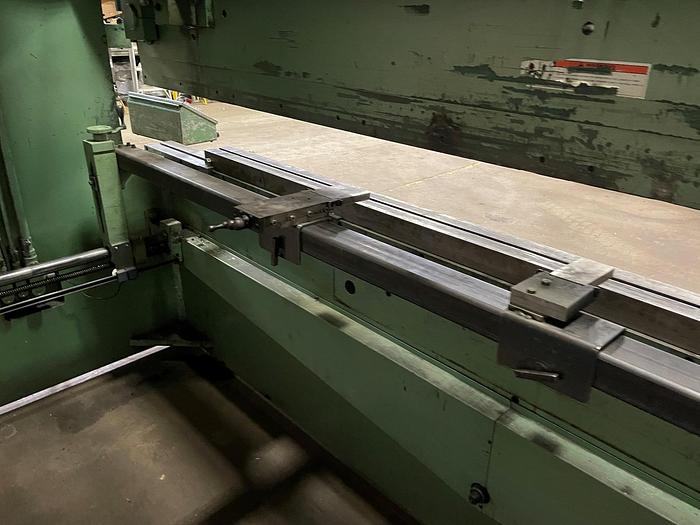

FRONT OPERATED BACKGAUGE W/DIGITAL READOUT

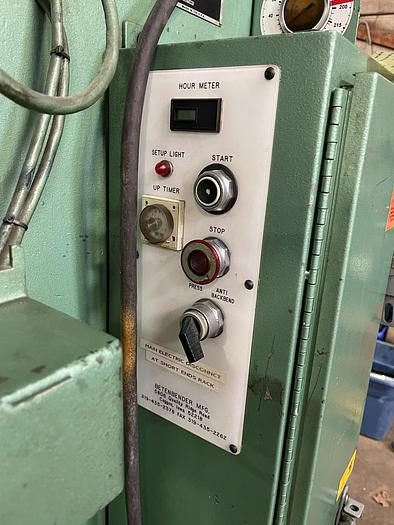

UP TIMER CONTROL
ONE POINT GREASE LUBE
RAM TILT ADJUSTMENT
EMERGENCY UP BUTTON
