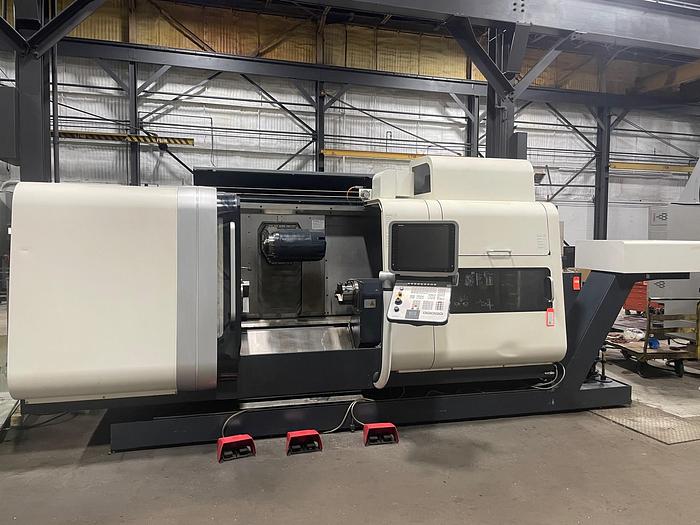

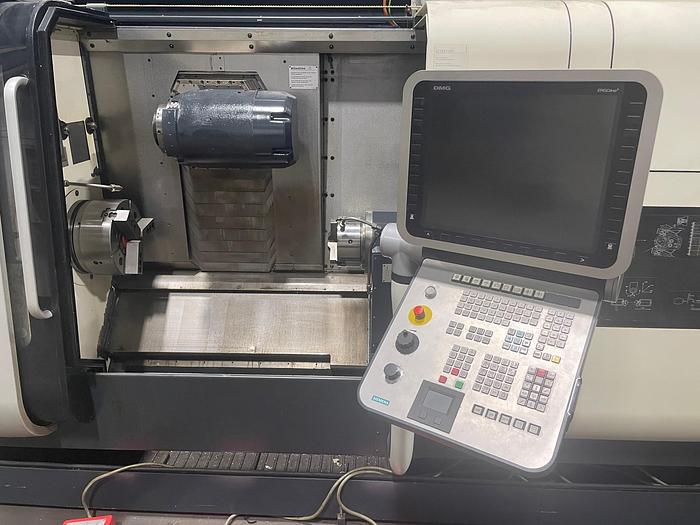

DMG MORI CTX BETA 1250TC CNC 5-AXIS LATHE, 2013
orCall (905) 669-7507
Specifications
| Manufacturer | DMG MORI |
| Model | CTX BETA 1250TC |
| Year | 2013 |
| Stock Number | 4411 |
| Swing | 19.7" |
| Turning Diameter | 19.7" |
| Center Distance | 57.9" |

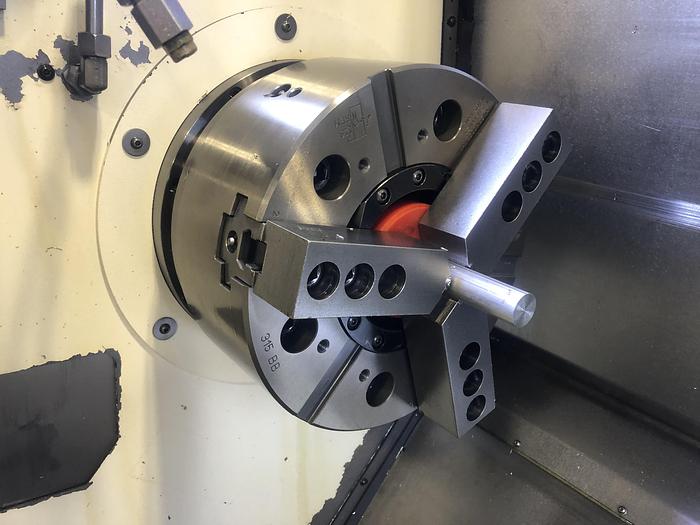

| Chuck Size | 12" |
| Bar Capacity | 4.09" |
| X-Axis Travel | 19.3" |
| Y-Axis Travel | +/- 4.9" |
| B-Axis Head Tilt | +/- 100 ° |
| C1/C2 Axis Index | 0.001° |
| Rapid Traverse Rate ( X,Y,Z) | 1574/1574/1968 ipm |
| Spindle Taper | Capto C6 |
| Spindle Speed | 5,000 rpm |
| Main Motor | 60 Hp |
| Tailstock | No |
| Y-Axis | Yes |
| Live Tooling | Yes |
| Live Milling Speed | 12,000 rpm, Milling Spindle |
| Live Milling Motor | 30 Hp |

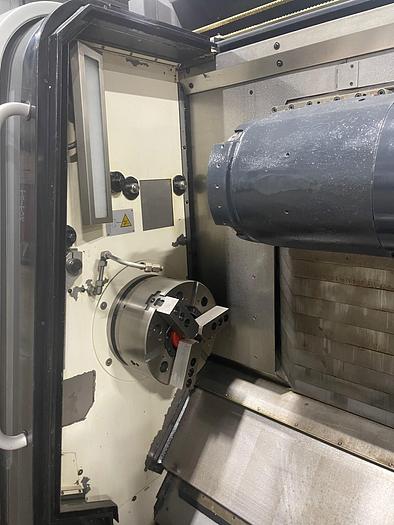

| Sub-Spindle | Yes |
| Sub-Spindle chuck Dia. | 8" |
| Sub-Spindle Bar Capacity | 2.63" |
| Sub-Spindle Speed | 6,000 rpm |
| Sub-Spindle Motor | 43 Hp |
| Tool Changer Capacity | 48 |
| Approx. Dimensions | 193" x 88" x 90" |
| Approx. Weight | 26,500 Lbs. |
Equipped With
Highlights: Siemens Sinumerik 840D CNC Contro 5-Axis Simultaneous Machining LNS Quickload Servo S3 Bar Feeder CAPTO C6 Milling Spindle

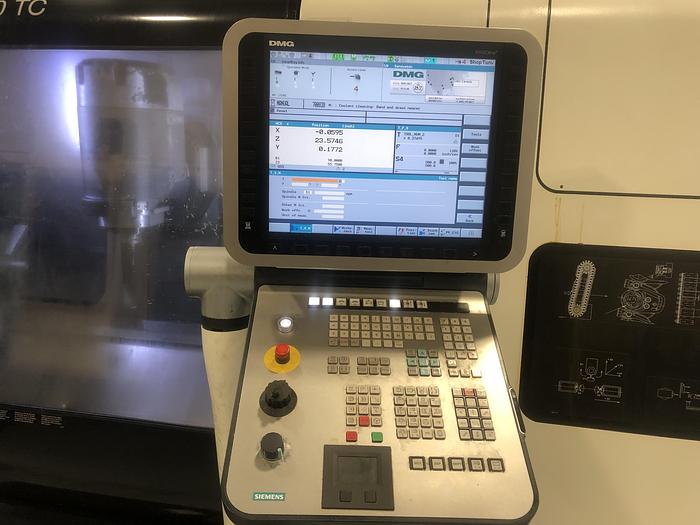

Siemens Sinumerik 840D CNC Control w/ ERGOline
Tool Breakage Monitoring

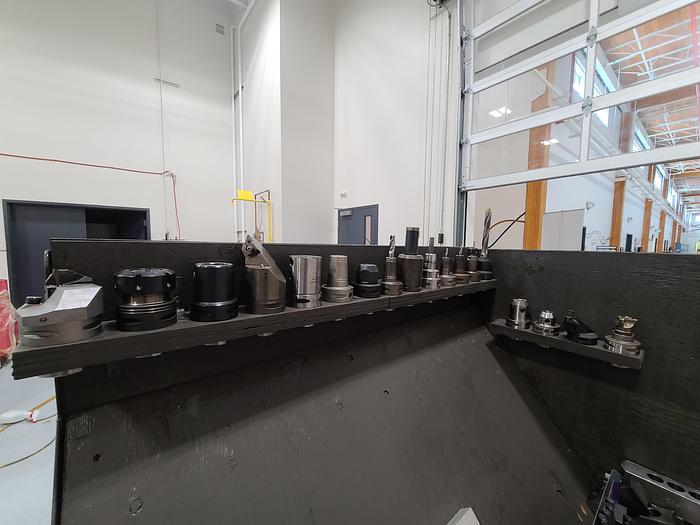

Assorted Toolholders
5-Axis Simultaneous Machining
LNS Quickload Servo S3 Bar Feeder
USB & Ethernet Interface

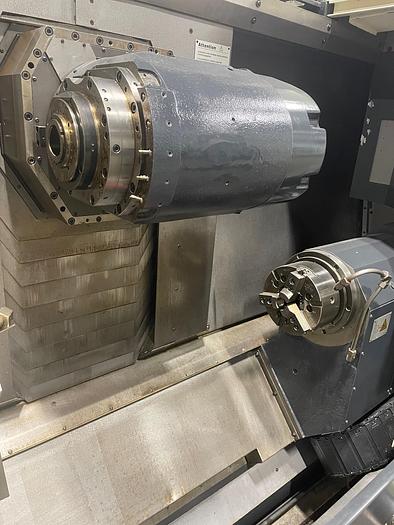

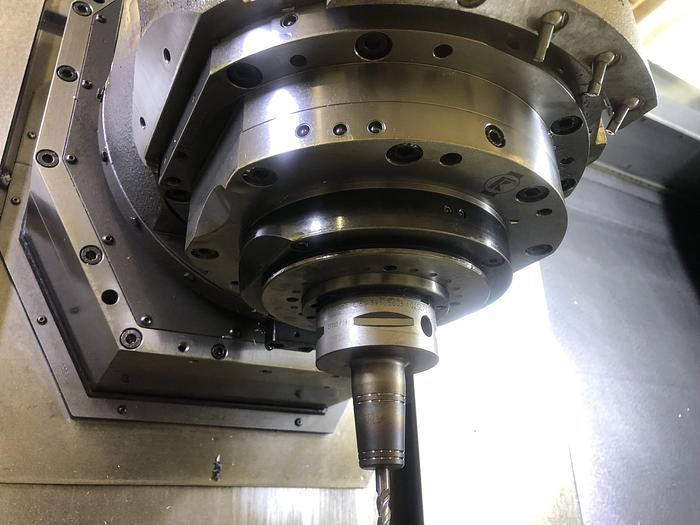

CAPTO C6 Milling Spindle

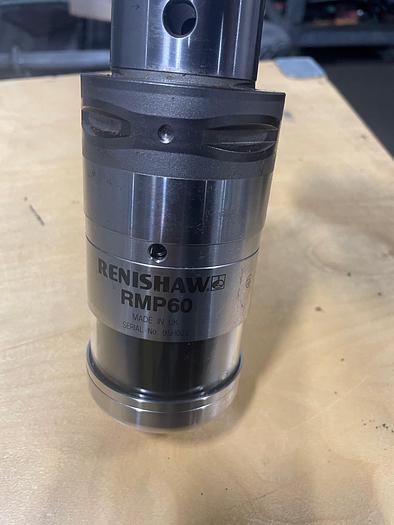

Renishaw RMP60 Spindle Probe

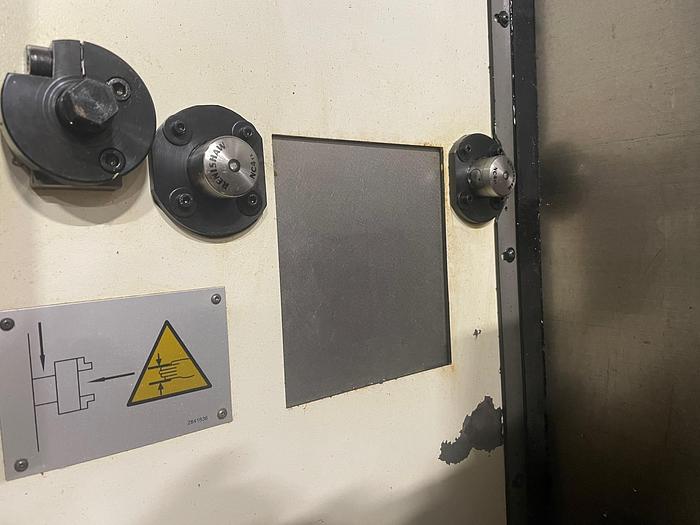

Renishaw Tool Length Measurement
