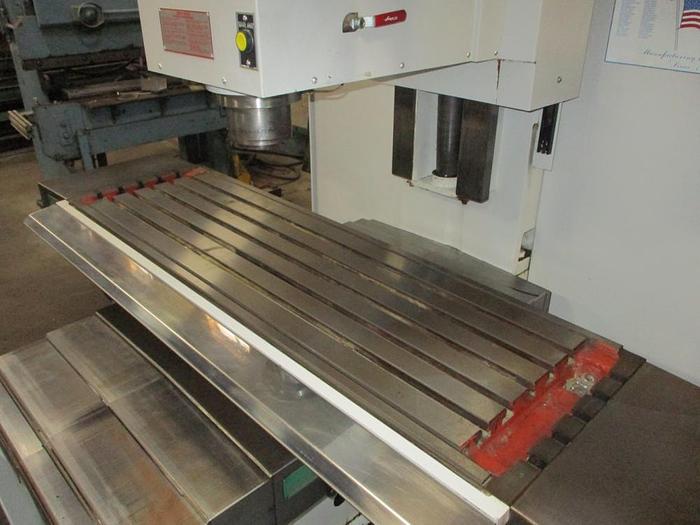

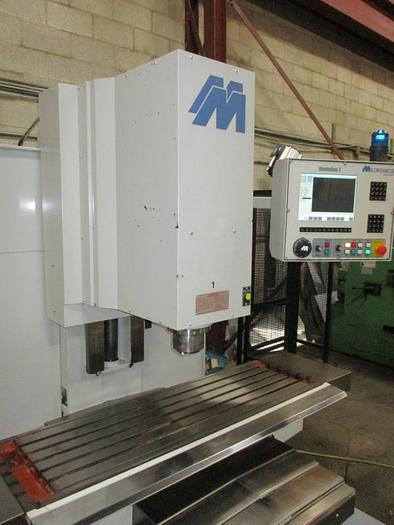

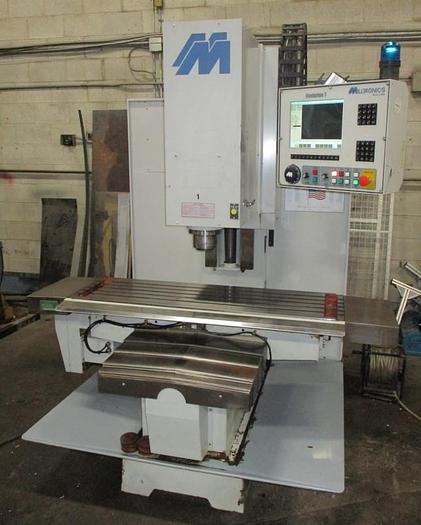

40"X, 20"Y, 24"Z, MILLTRONICS, 2005, RH20, CNC MILLING MACHINE
Sold
Specifications
| Manufacturer | MILLTRONICS |
| Model | RH20 |
| Year | 2005 |
| Stock Number | 4317 |
| Table size | 16" X 54" |
| Max. feedrate | .0 TO 300 IPM |
| Spindle motor | 24 / 15 HP |
| Spindle taper | CT40 |
| Approx. weight | 8,000 LBS. |
| Spindle speeds | 50 - 8000 RPM |
| Travels - x, y, z | 40" X 20" X 24" |
| Approx. floor space | 98" X 68" |
| Spindle to table top | 3 - 27" |
| Table weight capacity | 2,500 LBS. |
| Rapid traverse rate - x,y / z | 500 / 300 IPM |
| Throat distance spindle to column | 21" |
Equipped With

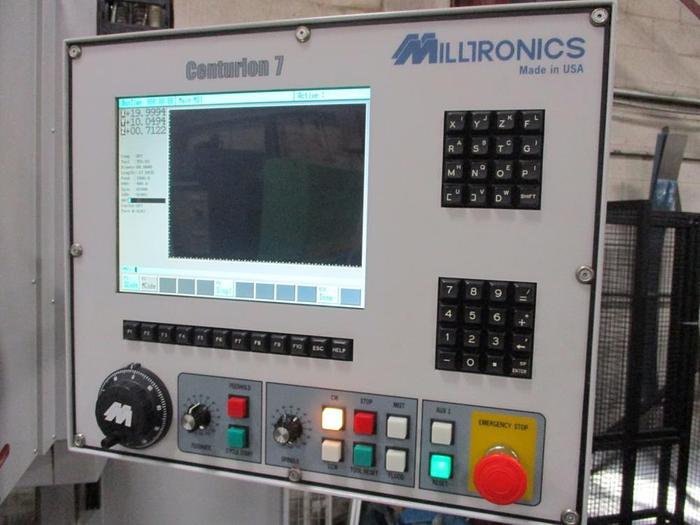

CENTURION 7 CNC CONTROL COLOR LCD
USB PORT RS232 PORT BOX WAYS AUTO LUBE
