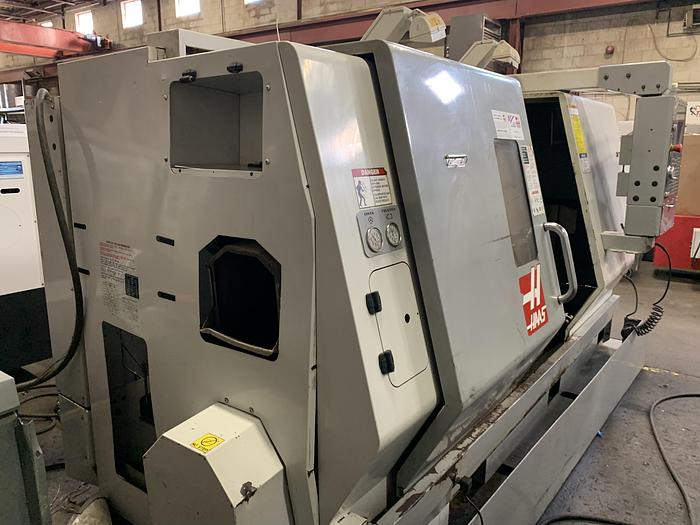

HAAS, SL-30T, 2006, CNC LATHE
Sold
Specifications
| Manufacturer | HAAS |
| Model | SL-30T |
| Year | 2006 |
| Stock Number | 4348 |
| DATE OF MFG. | 09/2006 |
| MAXIMUM SWING | 30" |
| MAXIMUM TURNING DIAMETER | 17" |
| MACHINING LENGTH | 34" |
| X-AXIS TRAVEL | 11.3" |
| Z-AXIS TRAVEL | 34" |
| RAPIDS | 710 IPM |
| SPINDLE SPEED | 3,400 RPM |
| SPINDLE NOSE | A2-6 |
| MAX. BAR CAPACITY | 3" |
| SPINDLE BORE | 3.5" |
| TURRET | 12 STATION |
| MAIN SPINDLE MOTOR | 30 HP |
| ELECTRICS | 208/230V/3/60 |
| APPROX. WEIGHT | 15,000 LBS. |
Equipped With
BRUSHLESS BARFEED INTERFACE
PROGRAMMABLE HYDRAULIC TAILSTOCK
CHIP AUGER
HIGH INTENSITY LIGHTING
QUICK CODE
SPINDLE ORIENTATION
