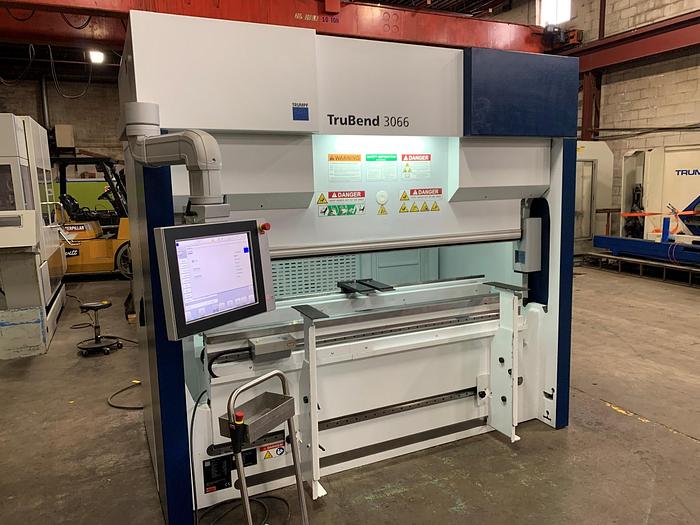

73 TON X 82", TRUMPF, 2019, TRUBEND 3066, CNC PRESS BRAKE
Sold
Specifications
| Manufacturer | TRUMPF |
| Model | TRUBEND 3066 |
| Year | 2019 |
| Stock Number | 4269 |
| BEND CAPACITY | 73 TONS |
| OVERALL BENDING LENGTH | 82" |
| DISTANCE BETWEEN FRAMES | 93" |
| STROKE | 7.87" |
| OPEN HEIGHT | 14" |
| SPEEDS - Y-RAPID | 472 IN./MIN. |
| Y-WORKING, MAX. | 35 IN./MIN. |
| Y-RETURN TRAVERSE SPEED | 472 IN./MIN. |
| X-AXIS | 1181 IN.MIN. |
| Z-AXIS | 2362 IN./MIN. |
| Y-AXIS POSITION ACCURACY | 0.0004 IN. |
| X-AXIS POSITION ACCURACY | 0.002 IN. |
| R-AXIS POSITION ACCURACY | 0.004 IN. |
| WORKING RANGE, Y-AXIS STROKE | 8" |
| TRAVEL PATH X-AXIS | 24" |
| TRAVEL PATH R-AXIS | 6" |
| OVERALL DIMENSIONS APPROX. | 102"L X 65"D X 93"H |
| APPROX. OVERALL WEIGHT | 12,456 LBS. |
Equipped With

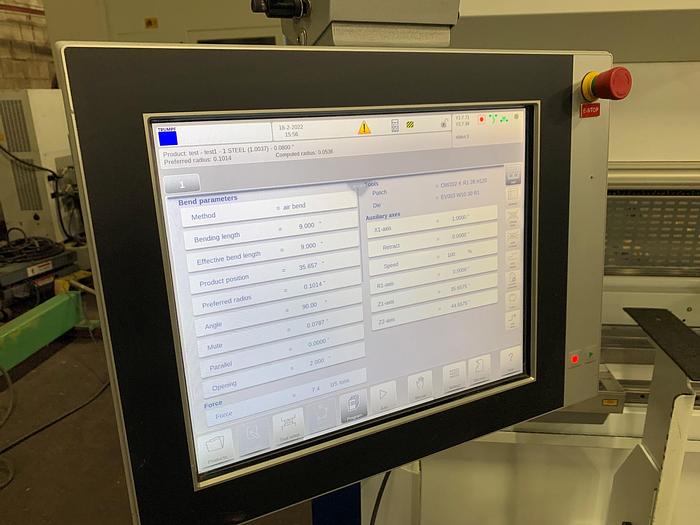

T3500T CNC TOUCH SCREEN CONTROL W/3D GRAPHICS
4-AXIS BACK GAUGE ( X, R, Z1, Z2 )

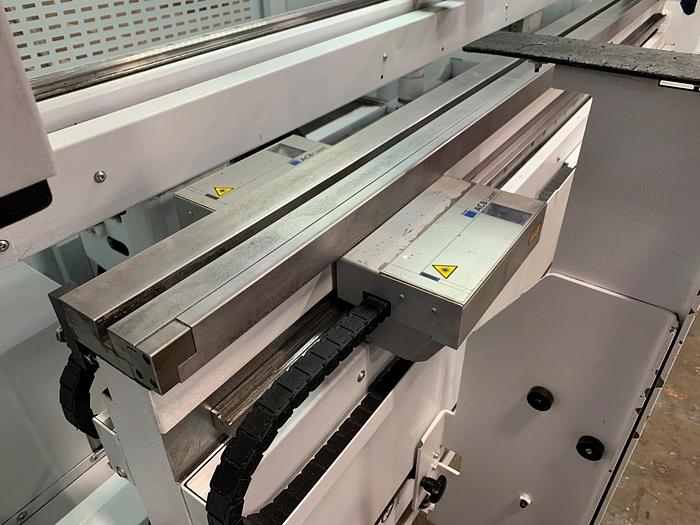

ACB LASER OPTICAL ANGLE MEASURING SYSTEM
WILA NEW STANDARD HYDRAULIC UPPER & LOWER CLAMPING SYSTEM
SELF ACTING CROWNING SYSTEM
NETWORKING

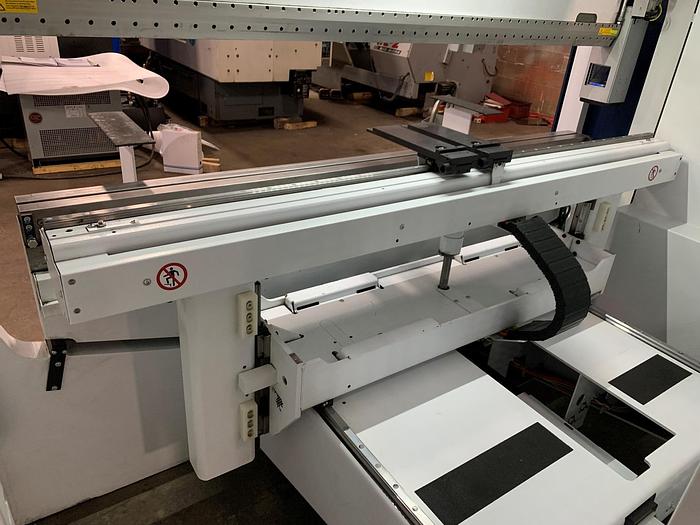

2 FRONT LINEAR SUPPORTS
EXTERIOR/INTERIOR WORK AREA LIGHTING
BEND GUARD BLOCK LASER SAFETY DEVICE
MULTIFUNCTION FOOT SWITCH
CABINET AIR CONDITIONER
LONG LIFE SYNTHETIC OIL
