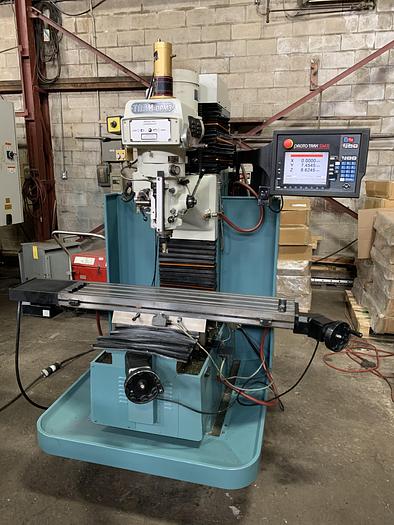

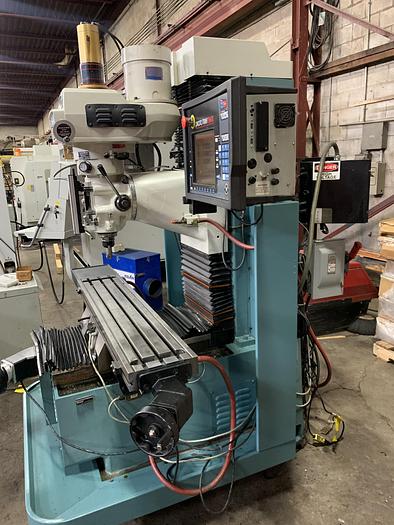

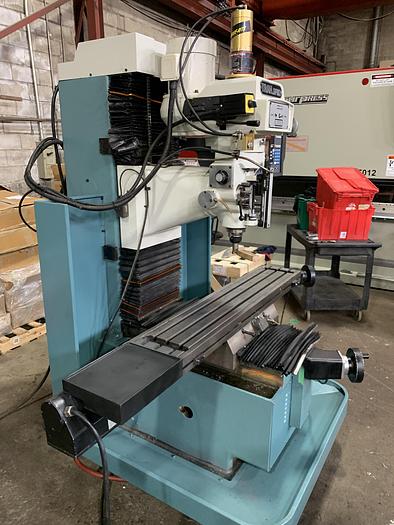

10" X 50", SOUTHWESTERN INDUSTRIES, TRAK DPM3, CNC BED MILL TRAK DPM3
Sold
Specifications
| Manufacturer | 10" X 50", SOUTHWESTERN INDUSTRIES, TRAK DPM3, CNC BED MILL |
| Model | TRAK DPM3 |
| Stock Number | 4205 |
| TABLE WORKING SURFACE | 10" X 50" |
| LONGITUDINAL TRAVEL X-AXIS | 31" |
| CROSS TRAVEL Y-AXIS | 17" |
| HEAD TRAVEL Z-AXIS | 23.5" |
| QUILL TRAVEL | 5" |
| MAX. WEIGHT OF WORKPIECE | 1,320 LBS. |
| INFINITELY VARIABLE SPINDLE SPEEDS, MANUALLY CONTROLLED | 70 - 4,200 RPM |
| SPINDLE TAPER | #40 N.S.T. |
| MILLING HEAD SWIVELS LEFT & RIGHT | 90 DEGREE |
| ELECTRICS | 220V/3/60 |
| MOTOR HP | 3 HP |
| APPROX. WEIGHT | 4,100 LBS. |
Equipped With

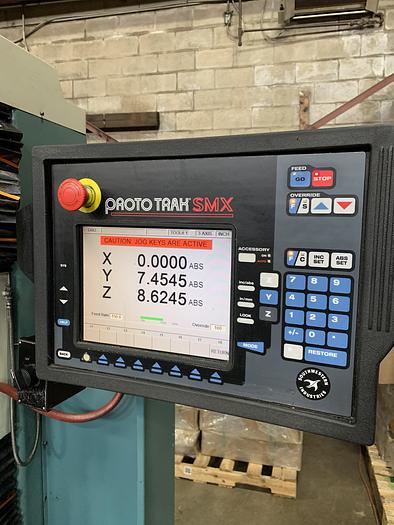

PROTO-TRAK SMX 3-AXIS CNC CONTROL
AUTO. LUBRICATION
COOLANT
POWER DRAWBAR
